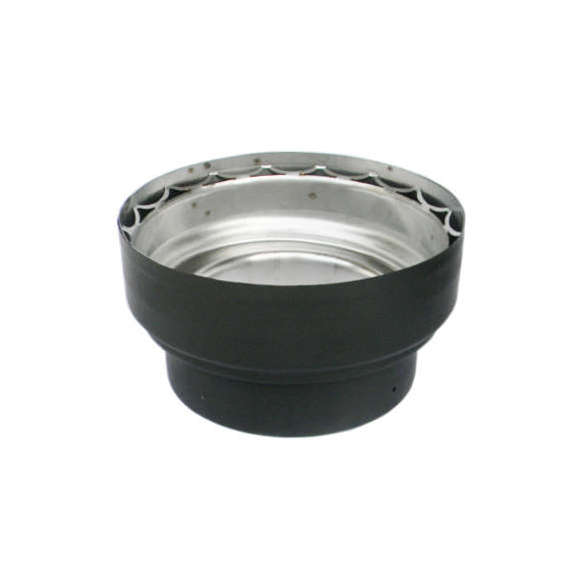

Black Double Wall Increaser / Reducer
Product Images
Black Double Wall Increaser / Reducer
Black Double Wall Increaser / Reducer
Product Details
Double Wall Increasers and Reducers allow you to adapt to your chimney pipe diameter of choice. We offer a large selection of pipe Increasers and Reducers. Install with male end pointing downward. Compatible with our black stove pipe along with Ventis, Champion, and Nexvent
Measurement Charts:
Double Wall Increaser
| Wall Increaser Size | A | B | C | D | YY |
|---|---|---|---|---|---|
| 5” Male to 6” Female | 5” | 5.75” | 6” | 7” | 5” |
| 6” Male to 7” Female | 6” | 6.75” | 7” | 8” | 5” |
| 6” Male to 8” Female | 6” | 6.75” | 8” | 9” | 5” |
| 7” Male to 8” Female | 7” | 7.75” | 8” | 9” | 5” |
Double Wall Reducer
| Wall Reducer Size | A | B | C | D | YY |
|---|---|---|---|---|---|
| 7” Male to 6” Female | 7” | 8” | 6” | 7” | 5” |
| 8” Male to 6” Female | 8” | 9” | 6” | 8” | 5” |
| 8” Male to 7” Female | 8” | 9” | 7” | 8” | 5” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
Product Details:
Double Wall Increasers and Reducers allow you to adapt to your chimney pipe diameter of choice. We offer a large selection of pipe Increasers and Reducers. Install with male end pointing downward. Compatible with our black stove pipe along with Ventis, Champion, and Nexvent
Measurement Charts:
Double Wall Increaser
| Wall Increaser Size | A | B | C | D | YY |
|---|---|---|---|---|---|
| 5” Male to 6” Female | 5” | 5.75” | 6” | 7” | 5” |
| 6” Male to 7” Female | 6” | 6.75” | 7” | 8” | 5” |
| 6” Male to 8” Female | 6” | 6.75” | 8” | 9” | 5” |
| 7” Male to 8” Female | 7” | 7.75” | 8” | 9” | 5” |
Double Wall Reducer
| Wall Reducer Size | A | B | C | D | YY |
|---|---|---|---|---|---|
| 7” Male to 6” Female | 7” | 8” | 6” | 7” | 5” |
| 8” Male to 6” Female | 8” | 9” | 6” | 8” | 5” |
| 8” Male to 7” Female | 8” | 9” | 7” | 8” | 5” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
