Osburn Everest II Wood Burning Zero Clearance Fireplace
Product Images

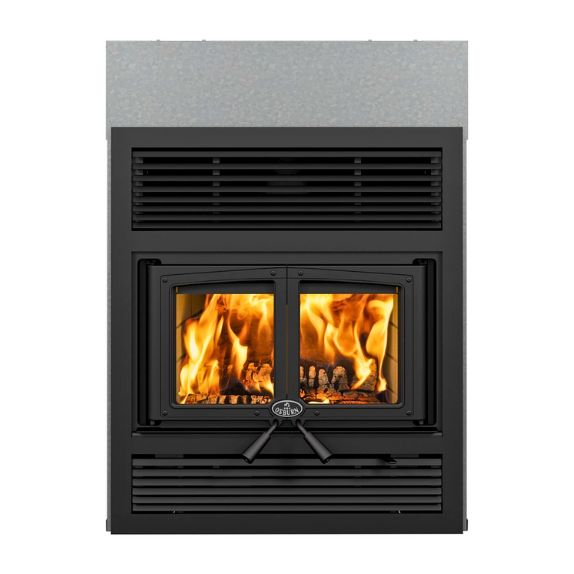

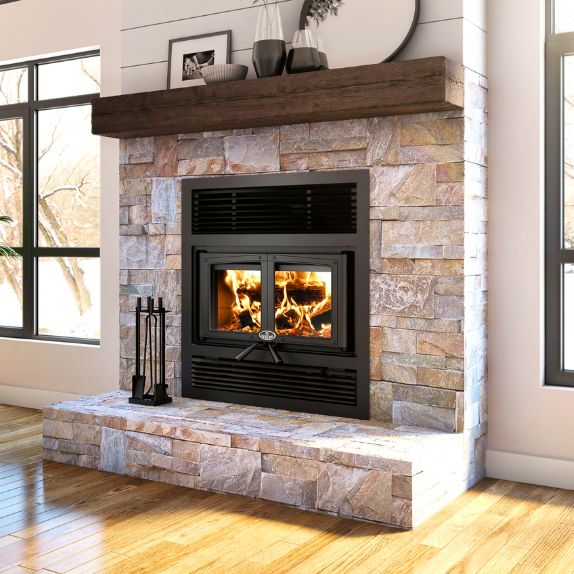

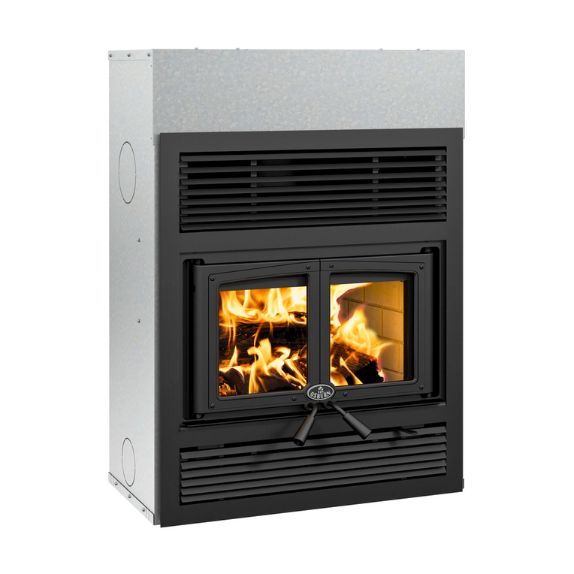

Osburn Everest II Wood Burning Zero Clearance Fireplace
Osburn Everest II Wood Burning Zero Clearance Fireplace
Osburn Everest II Wood Burning Zero Clearance Fireplace
Tradtional Face Plate

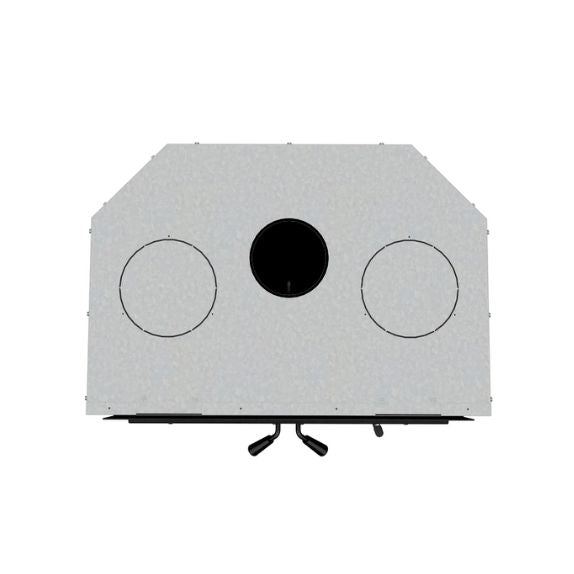

Everest II Top View
Product Details:
The Osburn Everest II Wood Burning Zero Clearance Fireplace is a great addition for any new construction and also a great choice to update an old rusted zero clearance fireplace. The sleek design and straight lines will fit with any decor and will sure to be the focal point of any room. The large double door provides a great view of the fire as you cozy up next to it in the cold winter months.
Choose between either a black door overlay or a brushed nickel door overlay to finish the unit. The optional Fire Screen will allow you to leave the doors open so you can also enjoy the crackling and sounds of the fireplace, just like an old traditional fireplace. This EPA 2020 approved fireplace burns extremely clean with a .99 g/h emission rating which is well under the EPA standards. The large 2.61 EPA loading firebox is capable of handling up to an 18" log while offering a large burn time of up to 9 hours.
The Everest II produces up to 85,000 BTU and is able to heat up to 2,500 square feet. It is equipped with a 176 CFM blower that will help push the warmth throughout the home. A limited lifetime warranty is included to ensure you will be enjoying the Osburn Everest II Wood Burning Zero Clearance Fireplace for many years. If you are looking for an extremely clean burning, efficient and stylish wood burning zero clearance fireplace, the Everest II should be at the top of your list.
Features:
- High-efficiency 2020 EPA certified appliance
- Recommended heating area : 750 - 2,500 sq. feet
- Premium quality convection blower included 176 CFM
- Glass air-wash system
- 72% optimum efficiency
- .99 g/h Average particulate emissions rate
- High heat-resistant C-cast baffle
- Stainless-steel secondary-air system improving gas combustion
- 9 hour Maximum burn time
- Non-catalytic combustion technology
- Moulded refractory bricks
- Flue outlet diameter : 6''
- Approved Chimney Type: Rock-Vent Class A chimney system
Specifications & Manual
Osburn Everest II Quick Install Guide
Osburn Everest II Operation and Install Guide
Osburn Everest II Specifications
Osburn Everest II Specifications |
|
| Optimum efficiency | 72 % |
| Average particulate emission rate | 0.99 g/h |
| EPA loading volume | 2.61 ft³ |
| Maximum heat output-dry cordwood | 85,000 BTU/h (24.9 kW) |
| Maximum overall heat output rate | 49,654 BTU/h (14.52 kW) |
| Minimum overall heat output rate | 18,057 BTU/h (5.19 kW) |
| Average overall efficiency-dry cordwood (HHV) | 65.7 % |
| Average overall efficiency-dry cordwood (LHV) | 70.8 % |
| Optimum heat transfer efficiency | 68 % |
| Recommended heating area | 750 - 2,500 ft² |
| Average CO | 50.1 g/h |
| Maximum burn time | 9 h |
| Fuel type | Dry cordwood (16" recommended) |
| Overall firebox volume | 3.0 ft³ |
| Baffle type | C-Cast or equivalent |
| Recommended chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Firebox size (Height) | 16 3/8" |
| Firebox size (Width) | 18 7/8" |
| Firebox size (Depth) | 16 1/4" |
| Overall dimension (Height) | 49 1/8" |
| Overall dimension (Width) | 41 3/4" |
| Overall dimension (Depth) | 28 5/8" |
| Door opening size (Height) | 10 1/4" |
| Door opening size (Width) | 20 3/4" |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Warranty | Limited lifetime |
| Minimum chimney height | 15' |
| Maximum log length | 18" |
| Mobile home approved | No |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC-S610 |
| USA Standard (safety) | UL 127 |
| Moulded refractory panels | Yes |
| Shipping weight | 525 lb (238 kg) |
| Log positioning | Chargement en largeur |
| Glass surface - W x H | 18 3/4" x 11 3/8" |
| Stainless-steel secondary-air system | Yes |
| Combustion technology | Non-catalytic |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Door type | Double glass with cast iron frame |
| Premium quality blower included (CFM) | 176 CFM included |
| Glass type | Ceramic glass |
Minimum Clearance to Combustibles
| Canada | United-States | |
| Clearance – non-combustible surround (top) | 4" | 4" |
| Clearance – top (measured from the platform on which the appliance is installed)** | 80" | 80" |
| Clearance – combustible side mantle to unit | 8" | 8" |
| Clearance – combustible top mantle to unit | 24" | 24" |
| Clearance – combustible side wall to unit | 21" | 21" |
| Clearance - from the shelf to the base of the fireplace | 48" | 48" |
Required Option
Door Overlay
The Door Overlay is required to complete the installation of the Osburn Everest II. The Door Overlay is available in either black or brushed nickel finish. The options for the Door Overlay allow you to tailor the look of the fireplace to your liking. The Black Door Overlay will give the fireplace more of a traditional appearance, while the Brushed Nickel Door Overlay gives the fireplace more of a sleek and modern look. The Door Overlay easily installs to the stove with the included bolts.
Optional Accessories
10 ft. Insulated Flex Pipe for 4 in. Fresh Air Intake
The 4" Insulated Fresh Air Intake Pipe is perfect for the longer runs necessary to draw air to the fireplace. The flexible pipe can maneuver and bend around framing of the home to pull the air from virtually anywhere outside.
Firescreen Door
Want to enjoy the Osburn Everest II like a traditional fireplace? Then the Fire Screen Door is perfect for you. Sit back, hear the crackling of the wood, feel the direct heat of the fire and enjoy the beauty of a fire inside your home. The Fire Screen fits perfectly inside the door opening without having to remove the doors every time. You should never leave the fireplace unattended when the Fire Screen is installed. Fire Screen Door Installation Guide.
