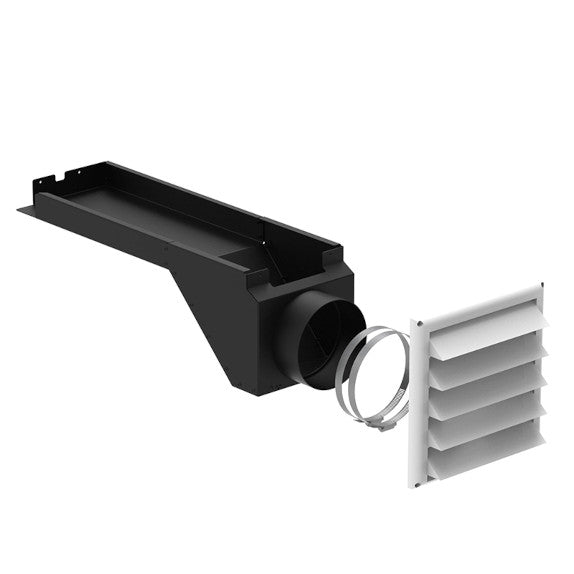

5 in. Ø Fresh Air Intake Kit for Wood Stove

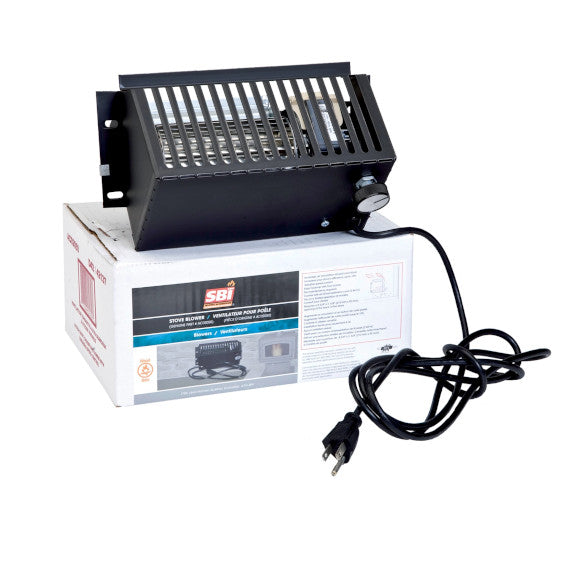

Blower with Variable Speed Control (100 CFM)

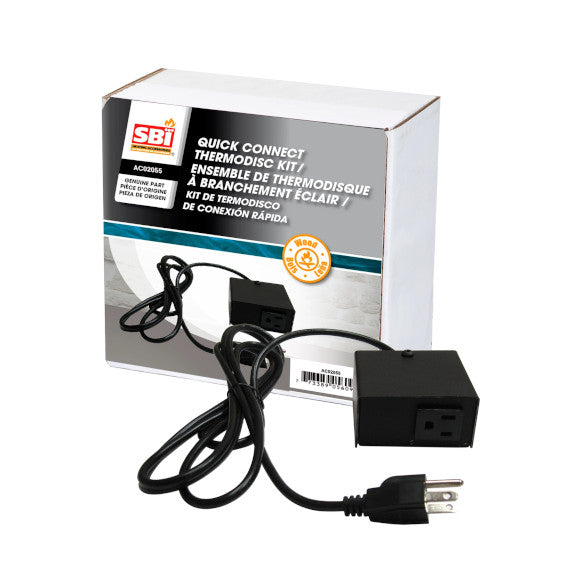

Quick Connect Thermodisc
Product Details
Specifications
Help & Documents
Options

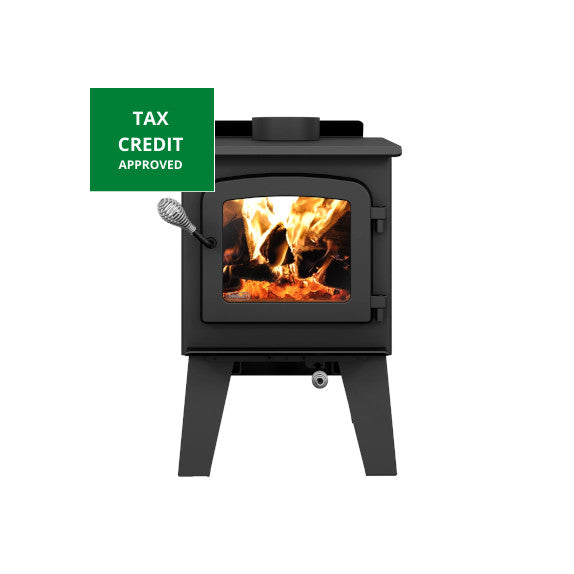

The Drolet Spark II wood burning stove is one of the most compact EPA rated stoves on the market. Don't let this small wood stove fool you - the Spark II wood stove is capable of producing up to 45,000 BTUs while heating up to 1,200 square feet of space. The 1.55 cubic ft. firebox is able to accept a 17" log and has an optimum efficiency of 80%. Yes, you read that correctly, 80% optimum efficiency for a small wood stove.
An optional blower and thermodisc are available to help push the heat across the room. This traditional leg model wood stove is equipped with contemporary steel legs which gives the stove a modern look. The Drolet Spark II wood stove is mobile home and alcove approved. If you are looking at heating a small space and do not want to take up a large footprint, the Drolet Spark II wood stove is for you.
Features
- Up to 5 hours burn time
- Up to 17" logs
- 1.55 ft³ firebox
- EPA certified
- Limited lifetime warranty
- EPA certified
- Limited lifetime warranty
- Certified for mobile home and alcove installation
- This model qualifies for the US tax credit
Measuring for Your Drolet Spark II
Stove Insert Measurement Guides
Installing Your New Wood Stove
Video of Installing a Wood Burning Stove
Drolet Spark II Wood Stove Specifications |
|
| Fuel Type | Dry cordwood (16" recommended) |
| Recommended heating area | 250 - 1,200 ft² |
| Overall firebox volume | 1.8 ft³ |
| EPA loading volume | 1.55 ft³ |
| Maximum burn time | 5 h |
| Maximum heat output-dry cordwood | 45,000 BTU/h (13.19 kW) |
| Minimum overall heat output rate | 12,124 BTU/h (3.55 kW) |
| Maximum overall heat output rate | 26,700 BTU/h (7.83 kW) |
| Average overall efficiency-dry cordwood (HHV) | 74% |
| Average overall efficiency-dry cordwood (LHV) | 79% |
| Optimum efficiency | 80% |
| Optimum heat transfer efficiency | 79% |
| Average particulate emission rate | 1.8 g/h |
| Average CO | 74 g/h |
| Size | Small |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Overall dimension (Width) | 18 1/2" |
| Overall dimension (Height) | 28 3/4"' |
| Overall dimension (Depth) | 28 7/8" |
| Premium quality blower included (CFM) | Optional |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6” |
| Distance-center of the flue outlet to back unit | 6 5/8” |
| Distance-center of the flue outlet to side unit | 9 1/4" |
| Recommended chimney diameter | 6” |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12” |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 12” |
| Door opening size (Height) | 7 5/8" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 10 1/4" x 8 1/2" |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 1/4" |
| Firebox size (Width) | 14 1/4" |
| Firebox size (Height) | 11 3/4" |
| Firebox size (Depth) | 19 1/8" |
| Maximum log length | 17” |
| Log positioning | Loading over depth |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (emissions) | EPA |
| USA Standard (safety) | UL 1482, UL 737 |
| Warranty | Limited Lifetime |
| Shipping Weight | 235 lb (107 kg) |
Minimum Clearance to Combustibles:
| Canada | United States | |||
|---|---|---|---|---|
| Clearance to Combustibles* | Single Wall | Double Wall | Single Wall | Double Wall |
| Clearance - Back Wall | 14" | 6” | 12” | 6” |
| Clearance - Side Wall | 18" | 18” | 18” | 18” |
| Clearance - Corner | 11" | 7” | 11” | 7” |
| Clearance - Base of the unit to ceiling** | 84” | 84” | 84” | 84” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||||
Product Details:
The Drolet Spark II wood burning stove is one of the most compact EPA rated stoves on the market. Don't let this small wood stove fool you - the Spark II wood stove is capable of producing up to 45,000 BTUs while heating up to 1,200 square feet of space. The 1.55 cubic ft. firebox is able to accept a 17" log and has an optimum efficiency of 80%. Yes, you read that correctly, 80% optimum efficiency for a small wood stove.
An optional blower and thermodisc are available to help push the heat across the room. This traditional leg model wood stove is equipped with contemporary steel legs which gives the stove a modern look. The Drolet Spark II wood stove is mobile home and alcove approved. If you are looking at heating a small space and do not want to take up a large footprint, the Drolet Spark II wood stove is for you.
Features
- Up to 5 hours burn time
- Up to 17" logs
- 1.55 ft³ firebox
- EPA certified
- Limited lifetime warranty
- EPA certified
- Limited lifetime warranty
- Certified for mobile home and alcove installation
- This model qualifies for the US tax credit
Measuring for Your Drolet Spark II
Stove Insert Measurement Guides
Installing Your New Wood Stove
Video of Installing a Wood Burning Stove
Specifications:
Drolet Spark II Wood Stove Specifications |
|
| Fuel Type | Dry cordwood (16" recommended) |
| Recommended heating area | 250 - 1,200 ft² |
| Overall firebox volume | 1.8 ft³ |
| EPA loading volume | 1.55 ft³ |
| Maximum burn time | 5 h |
| Maximum heat output-dry cordwood | 45,000 BTU/h (13.19 kW) |
| Minimum overall heat output rate | 12,124 BTU/h (3.55 kW) |
| Maximum overall heat output rate | 26,700 BTU/h (7.83 kW) |
| Average overall efficiency-dry cordwood (HHV) | 74% |
| Average overall efficiency-dry cordwood (LHV) | 79% |
| Optimum efficiency | 80% |
| Optimum heat transfer efficiency | 79% |
| Average particulate emission rate | 1.8 g/h |
| Average CO | 74 g/h |
| Size | Small |
| Alcove installation approved | Yes |
| Mobile home approved | Yes, with fresh air intake |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Overall dimension (Width) | 18 1/2" |
| Overall dimension (Height) | 28 3/4"' |
| Overall dimension (Depth) | 28 7/8" |
| Premium quality blower included (CFM) | Optional |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6” |
| Distance-center of the flue outlet to back unit | 6 5/8” |
| Distance-center of the flue outlet to side unit | 9 1/4" |
| Recommended chimney diameter | 6” |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12” |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 12” |
| Door opening size (Height) | 7 5/8" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 10 1/4" x 8 1/2" |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 1/4" |
| Firebox size (Width) | 14 1/4" |
| Firebox size (Height) | 11 3/4" |
| Firebox size (Depth) | 19 1/8" |
| Maximum log length | 17” |
| Log positioning | Loading over depth |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (emissions) | EPA |
| USA Standard (safety) | UL 1482, UL 737 |
| Warranty | Limited Lifetime |
| Shipping Weight | 235 lb (107 kg) |
Minimum Clearance to Combustibles:
| Canada | United States | |||
|---|---|---|---|---|
| Clearance to Combustibles* | Single Wall | Double Wall | Single Wall | Double Wall |
| Clearance - Back Wall | 14" | 6” | 12” | 6” |
| Clearance - Side Wall | 18" | 18” | 18” | 18” |
| Clearance - Corner | 11" | 7” | 11” | 7” |
| Clearance - Base of the unit to ceiling** | 84” | 84” | 84” | 84” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||||
