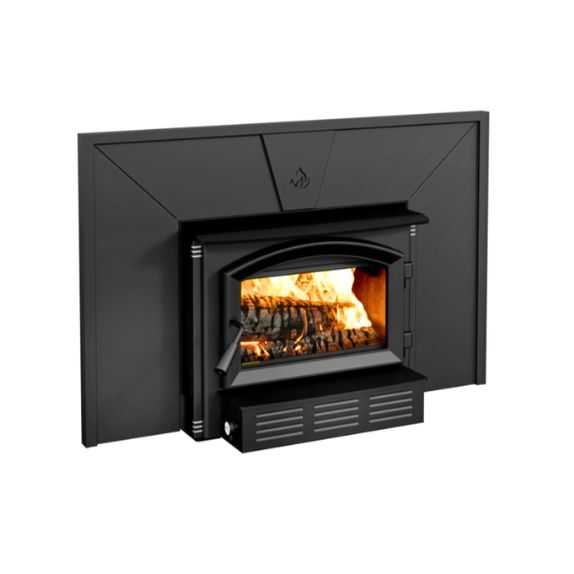

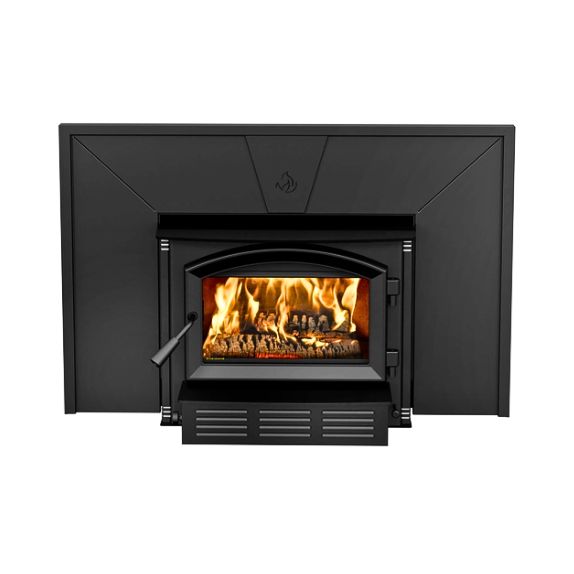

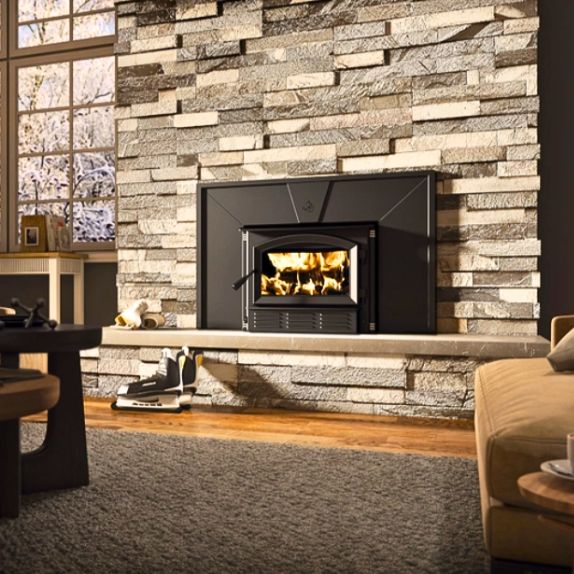

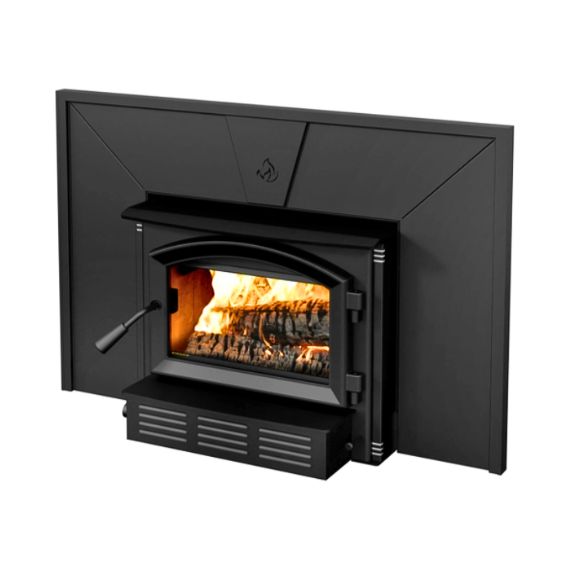

Enerzone Solution 1.7-I Wood Burning Insert
Product Images
Enerzone Solution 1.7-I Wood Burning Insert
Enerzone Solution 1.7-I Wood Burning Insert
Enerzone Solution 1.7-I Wood Burning Insert
Enerzone Solution 1.7-I Wood Burning Insert
Enerzone Solution 1.7-I Wood Burning Insert
Enerzone Solution 1.7-I Wood Burning Insert
Regular Faceplate (29" X 44")
Large Faceplate (32" X 50")
Black Faceplate Trims
Brushed Nickel Faceplate Trims
5"Fresh Air Intake Kit

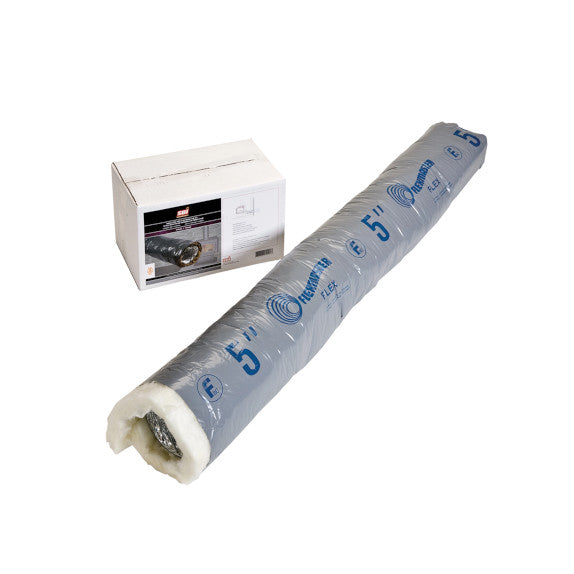

5" X 4' Insulated Flex Pipe

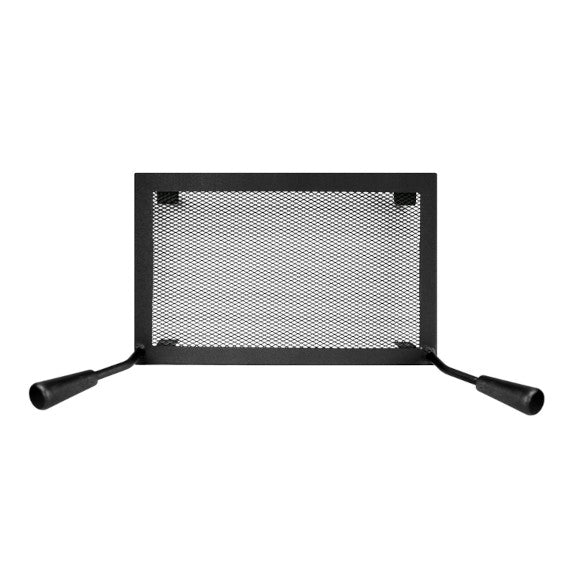

Rigid Firescreen
Product Details
Specifications
Help & Documents
Options
The Enerzone Solution 1.7-I Wood Burning Fireplace Insert is designed to transform an inefficient masonry fireplace into a reliable and efficient home heating system. Combining modern combustion technology with classic styling, this insert offers excellent heat output, extended burn times, and a clean-burning design that enhances comfort while reducing emissions.
The Enerzone Solution 1.7-I offers a 1.86 cubic foot firebox (1.44 cu. ft. EPA loading volume) lined with high-density refractory bricks that help retain heat and improve combustion efficiency. This firebox can accommodate logs up to 18 inches long, providing generous fuel capacity and consistent heat throughout the burn cycle. With a maximum heat output of up to 65,000 BTUs, the Solution 1.7-I is capable of heating spaces ranging from 500 to 1,800 square feet, making it an ideal choice for small to medium-sized spaces.
The insert delivers a maximum burn time of up to 7–8 hours, allowing homeowners to enjoy long-lasting heat with fewer reloads. Efficiency ratings reach approximately 68% HHV (73% LHV) with an optimum efficiency of around 76%, ensuring more of the wood’s energy is converted into usable heat for your living space. To help circulate warmth throughout the room, the Solution 1.7-I includes a premium variable-speed 144 CFM blower. This included blower quietly pushes heated air away from the insert and into the living area, helping distribute heat more evenly and improving overall heating performance.
A variety of finishing options allow the insert to blend seamlessly with many fireplace styles. The unit can be paired with regular or large faceplates, designed to properly cover the existing fireplace opening and create a finished installation. Decorative faceplate trim options are available in both classic black and brushed nickel, allowing you to customize the look to match traditional or contemporary décor.
Whether you are upgrading an outdated fireplace or looking for a dependable secondary heat source, the Enerzone Solution 1.7-I Wood Burning Insert delivers efficient heat, attractive design, and customizable finishing options that make it a practical and stylish addition to any home.
Features:
- Fuel type :Dry cordwood (16" recommended)
- Recommended heating area-ft² :500-1,800
- EPA loading volume-ft³ :1.44
- Maximum heat output-dry cordwood :65,000 BTU/h (19 kW)
- Average overall efficiency (dry cordwood) :68 % (HHV) (4) 73 % (LHV)
- Optimum efficiency :76%
- Maximum burn time: 8 h
- Average particulate emissions rate :2.4 g/h
- Blower Included: Yes 144 CFM
Measuring for Your Enerzone Solution 1.7-I Insert
Installing Your New Wood Fireplace Insert
Enerzone Solution 1.7-I Insert Specifications |
|
| Fireplace opening – minimum (Height) | 21 1/2'' |
| Fireplace opening – minimum (Width) | 27 1/2'' |
| Fireplace opening – minimum (Depth) | 12 3/4'' |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 18” |
| Log positioning | Loading over width |
| Chimney diameter | 6” |
| Flue outlet diameter | 6” |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 15’ |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Shipping Weight | 385 lb (175 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 15 7/8" x 9 7/8" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 144 |
| Overall dimension (Height) | 21 1/4" |
| Overall dimension (Width) | 27 1/8" |
| Overall dimension (Depth) | 22 3/8" |
| Door opening – dimension (Height) | 8 3/4" |
| Door opening - dimension (Width) | 17 1/4" |
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 19 5/8" |
| Firebox – dimension (Depth) | 13 1/2" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Adjustable threaded legs | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 3/8"d |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| Canadian standard (safety) | ULC S628 |
| USA Standard (safety) | UL 1482, UL 737 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited Lifetime |
Minimum Clearance to Combustibles:
| Clearance to Combustibles* | Canada | United States |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84” | 84” |
| Clearance – combustible side mantle to unit | 9” | 9” |
| Clearance – combustible top mantle to unit | 27” | 27” |
| Clearance – combustible side wall to unit | 16” | 16” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||
Product Details:
The Enerzone Solution 1.7-I Wood Burning Fireplace Insert is designed to transform an inefficient masonry fireplace into a reliable and efficient home heating system. Combining modern combustion technology with classic styling, this insert offers excellent heat output, extended burn times, and a clean-burning design that enhances comfort while reducing emissions.
The Enerzone Solution 1.7-I offers a 1.86 cubic foot firebox (1.44 cu. ft. EPA loading volume) lined with high-density refractory bricks that help retain heat and improve combustion efficiency. This firebox can accommodate logs up to 18 inches long, providing generous fuel capacity and consistent heat throughout the burn cycle. With a maximum heat output of up to 65,000 BTUs, the Solution 1.7-I is capable of heating spaces ranging from 500 to 1,800 square feet, making it an ideal choice for small to medium-sized spaces.
The insert delivers a maximum burn time of up to 7–8 hours, allowing homeowners to enjoy long-lasting heat with fewer reloads. Efficiency ratings reach approximately 68% HHV (73% LHV) with an optimum efficiency of around 76%, ensuring more of the wood’s energy is converted into usable heat for your living space. To help circulate warmth throughout the room, the Solution 1.7-I includes a premium variable-speed 144 CFM blower. This included blower quietly pushes heated air away from the insert and into the living area, helping distribute heat more evenly and improving overall heating performance.
A variety of finishing options allow the insert to blend seamlessly with many fireplace styles. The unit can be paired with regular or large faceplates, designed to properly cover the existing fireplace opening and create a finished installation. Decorative faceplate trim options are available in both classic black and brushed nickel, allowing you to customize the look to match traditional or contemporary décor.
Whether you are upgrading an outdated fireplace or looking for a dependable secondary heat source, the Enerzone Solution 1.7-I Wood Burning Insert delivers efficient heat, attractive design, and customizable finishing options that make it a practical and stylish addition to any home.
Features:
- Fuel type :Dry cordwood (16" recommended)
- Recommended heating area-ft² :500-1,800
- EPA loading volume-ft³ :1.44
- Maximum heat output-dry cordwood :65,000 BTU/h (19 kW)
- Average overall efficiency (dry cordwood) :68 % (HHV) (4) 73 % (LHV)
- Optimum efficiency :76%
- Maximum burn time: 8 h
- Average particulate emissions rate :2.4 g/h
- Blower Included: Yes 144 CFM
Measuring for Your Enerzone Solution 1.7-I Insert
Installing Your New Wood Fireplace Insert
Specifications:
Enerzone Solution 1.7-I Insert Specifications |
|
| Fireplace opening – minimum (Height) | 21 1/2'' |
| Fireplace opening – minimum (Width) | 27 1/2'' |
| Fireplace opening – minimum (Depth) | 12 3/4'' |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 18” |
| Log positioning | Loading over width |
| Chimney diameter | 6” |
| Flue outlet diameter | 6” |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 15’ |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Shipping Weight | 385 lb (175 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 15 7/8" x 9 7/8" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 144 |
| Overall dimension (Height) | 21 1/4" |
| Overall dimension (Width) | 27 1/8" |
| Overall dimension (Depth) | 22 3/8" |
| Door opening – dimension (Height) | 8 3/4" |
| Door opening - dimension (Width) | 17 1/4" |
| Firebox – dimension (Height) | 11 7/8" |
| Firebox – dimension (Width) | 19 5/8" |
| Firebox – dimension (Depth) | 13 1/2" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Adjustable threaded legs | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 3/8"d |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| Canadian standard (safety) | ULC S628 |
| USA Standard (safety) | UL 1482, UL 737 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited Lifetime |
Minimum Clearance to Combustibles:
| Clearance to Combustibles* | Canada | United States |
| Clearance – top (measured from the platform on which the appliance is installed)** | 84” | 84” |
| Clearance – combustible side mantle to unit | 9” | 9” |
| Clearance – combustible top mantle to unit | 27” | 27” |
| Clearance – combustible side wall to unit | 16” | 16” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||
