Enerzone Solution 3.5 Wood Burning Stove with Blower

Product Images

Enerzone Solution 3.5 Wood Burning Stove with Blower

Enerzone Solution 3.5 Wood Burning Stove with Blower

Rigid Firescreen

Rigid Firescreen

Airmate

Airmate

Enerzone Solution 3.5 Wood Burning Stove with Blower

Enerzone Solution 3.5 Wood Burning Stove with Blower

Description:
Approx. Heating Area: 1,000-2,700 sq.ft.Max Output: 110,000 BTU/hEligible for Tax Incentive

Approx. Heating Area: 1,000-2,700 sq.ft.

Max Output: 110,000 BTU/h

Eligible for Tax Incentive

Loading...
Configure for Price

Optional Add Ons:

Configure for Price

Product Details

Specifications

Help & Documents

Options

You will not regret installing this powerful stove in your home as you cozy up next to it in the cold winter months. The Enerzone Solution 3.5 wood burning stove is the largest of the Solution wood stove series. Bolstering a giant 3.5 cubic foot firebox and capable of accepting up to an impressive 22" log. It produces 110,000 BTUs to heat an area of up to 2,700 square feet with a maximum burn time of 10 hours on one load of wood. This EPA Certified non-catalytic wood stove was designed with mother nature in mind while only producing a very low 1.6 g/h emissions rating which is much below the EPA's 2020 emissions guidelines.

The sleek design, slightly curved top provides an elegance that other pedestal model wood stoves simply do not have. The detailed side panels and extremely large 18 3/4" x 12 1/2" glass door adds dimension for a hypnotic view of the beautiful flames dancing in the firebox.

Equipped with a powerful 130 CFM blower allows heat to be pushed across larger spaces. An optional air mate will assist by allowing more heat to be generated off the top of the stove before the blower pushes the heat across the top of the stove. A convenient ash drawer is included to easily clean the firebox without having to shovel messy ashes out of the front of the firebox.

A combination of refinement and performance make the Enerzone Solution 3.5 a wood stove in a class of its own. The Enerzone Solution 3.5 wood stove qualifies for the wood and pellet stove tax credit through the end of 2032. See below for more details.

Features

  • Firebox lined with refractory bricks for better heat distribution
  • Optimum efficiency : 77 %
  • Average particulate emissions rate : 1.32 g/h
  • Steel thickness – top : 3/8"
  • High-efficiency certified appliance : Yes, EPA 2020 approved
  • Approved for a mobile home installation
  • Recommended heating area-ft² : 1,000 - 2,700
  • Blower Included
  • Ash Drawer Included

Measuring for Your

Stove Insert Measurement Guides

Installing Your New Wood Stove

Video of Installing a Wood Burning Stove

Enerzone Solution 3.5 Wood Stove Specifications

Fuel type Dry cordwood (16" recommended)
Recommended heating area-ft² 1,000 - 2,700
Overall firebox volume-ft³ 3.5
EPA loading volume-ft³ 2.88
Maximum Burn Time 10 h
Maximum heat output-dry cordwood 110,000 BTU/h (32.2 kW)
Overall heat output rate 17,200 BTU/h (5.0 kW) to 57,800 BTU/h (16.9 kW)
Average overall efficiency (dry cordwood) 71 % (HHV) 76 % (LHV)
Optimum overall efficiency 77 %
Optimum heat transfer efficiency 75 %
Average particulate emissions rate 1.6 g/h
Average CO 73 g/h
Combustion technology Non-catalytic
Maximum burn time 5 h
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 22"
Log positioning Loading over width and over depth
Chimney diameter 6"
Flue outlet diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet) 15'
Baffle type C-Cast or equivalent
Approved for an alcove installation Yes
Approved for a mobile home installation Yes, with fresh air intake
Shipping Weight 520 lb (236 kg)
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 18 3/4" x 12 1/2"
Glass air-wash system Yes
Premium quality blower included (CFM) 130
Overall dimension (Height) 34 1/8"'
Overall dimension (Width) 28 1/8"
Overall dimension (Depth) 33 1/2"
Door opening - dimension (Height) 10 5/8"
Door opening - dimension (Width) 19"
Firebox – dimension (Height) 12 7/8"
Firebox – dimension (Width) 22 7/8"
Firebox – dimension (Depth) 20 1/8"
Firebox lined with refractory bricks for better heat distribution Yes
Stainless-steel secondary-air system improving gas combustion Yes
Steel thickness – body 3/16"
Steel thickness – top 3/8"
USA standard (emissions) EPA
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, UL 737
Canadian standard (safety) ULC-S627
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime

Minimum Clearance to Combustibles:

Canada United States
Clearance to Combustibles* Single Wall Double Wall Single Wall Double Wall
Clearance - Back Wall 13 1/4" 7” 13” 7”
Clearance - Corner 7 1/4" 7” 7 1/4” 7”
Clearance - Side Wall 14" 14” 14” 14”
Clearance - Top (measured from the platform on which the appliance is installed)** 84” 84” 84” 84”
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

Optional Accessories

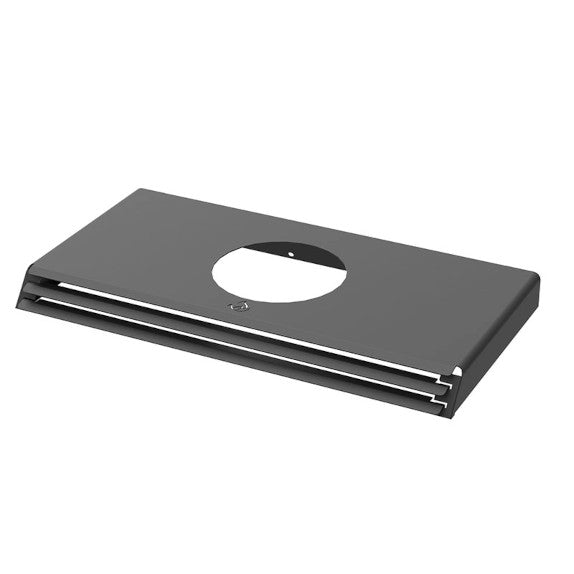

Airmate

Looking to get even more heat out of the stove? The optional Airmate is installed over the stove top and allows more heat to be generated for the blower to push over the top of the stove. The louvered front provides a stylish accent to the stove and while increasing the temperature of the air that the blower is pushing off the stove. If you are looking to maximize the possible heat output, the optional Airmate is the perfect addition to the Enerzone Solution 3.5 wood stove.

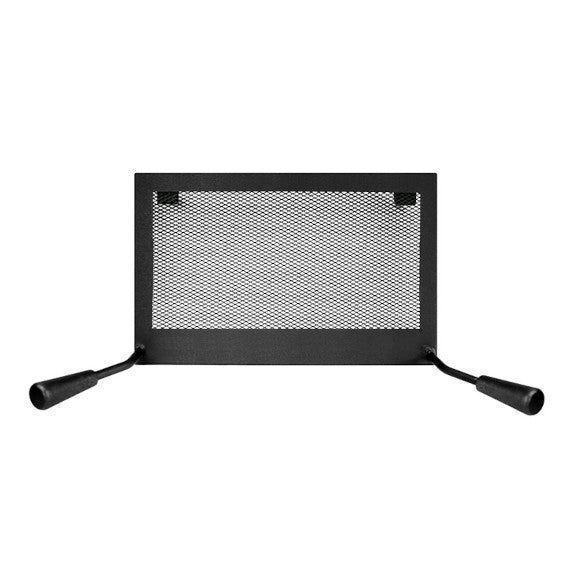

Rigid Firescreen

The Rigid Firescreen allows you to burn wood in the stove with the door open just like an old-time fireplace. Hear the crackle of the wood, watch the flames dance around in the firebox and relax around the wood insert on a cold winter's night. The Rigid Firescreen is easy to install and easy to remove when you are ready to load more wood. The fireplace insert should not be burning with the door open without the firescreen.

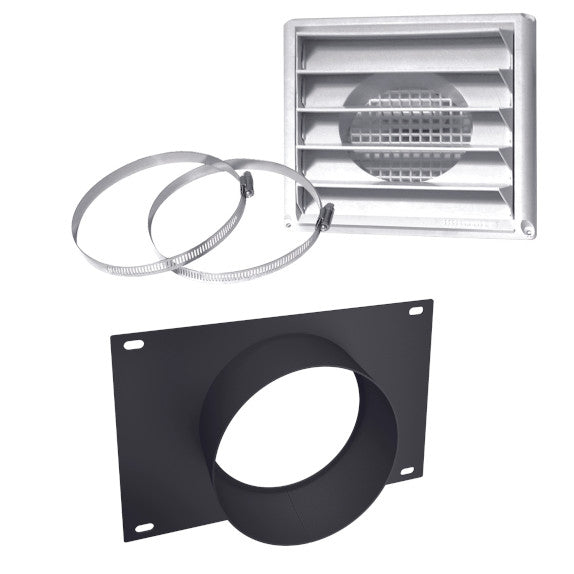

5"Ø Fresh Air Intake Kit For Wood Stove On Pedestal

The 5" Fresh Air Oval Kit is required if you plan on connecting a fresh air intake pipe. The oval adapter kit comes with the oval adapter, 2 clamps and the fresh air intake register hood. The oval adapter is intended for the 5" fresh air intake pipe. You will have to manually ovalize the flexible intake pipe to make the connection to the adapter. The oval adapter can be positioned on either side of the fireplace insert.

Tax Credit Information

The Enerzone Solution 3.5 wood burning stove is EPA rated and has a HHV rating of 75% which qualifies for the wood and pellet stove tax credit through the end of 2032. From January 2023 through December 2032 you can receive up to a 30% tax credit for the installation and parts required, such as chimney liner and insulation. This is one of the largest tax credits the wood and pellet stove industry has ever had. If you are looking to update your old drafty fireplace consider the Enerzone Solution 3.5 wood burning stove.
