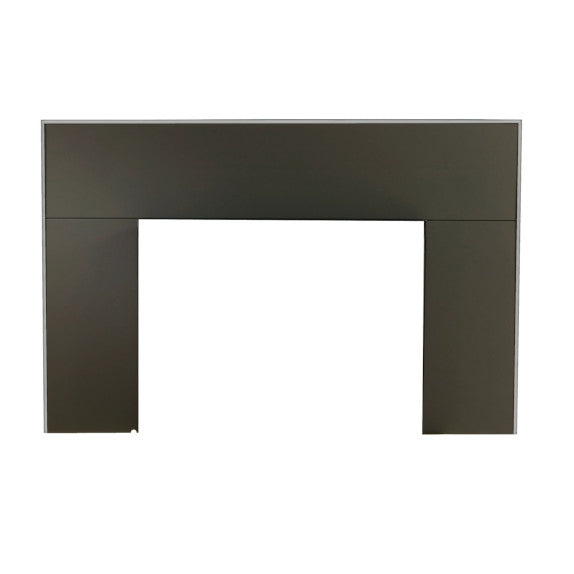

Regular Faceplate 29 in. x 44 in.

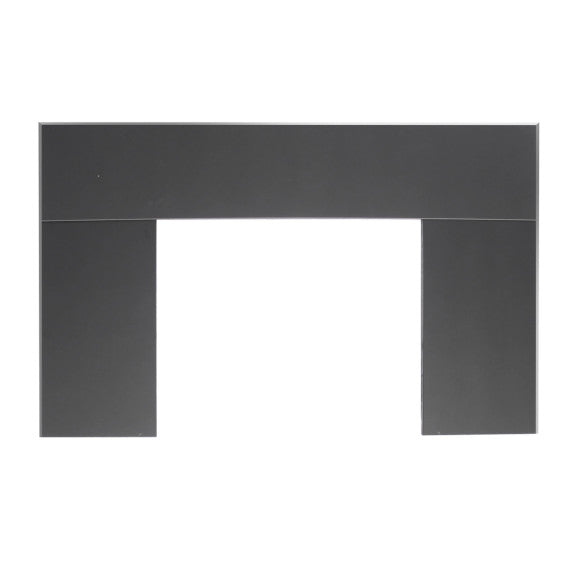

Large Faceplate 32 in. x 50 in
Cuttable Faceplate (18 gauge) 32 in. x 50 in.
Product Details:
The Drolet Escape 1800-I Wood Burning Fireplace Insert is a versatile and affordable wood insert. This affordable wood insert is a great way to update an old inefficient fireplace and provide extra warmth in the cold winter months. With a heating area of up to 2100 square ft., The Escape 1800-I wood insert is sure to lower your heating bills. It has a maximum operating burn time of 8 hours and provides up to 75,000 BTU's of warmth. The 2.4 cubic foot firebox can hold up to a 20" log size.
The Drolet Escape 1800-I is EPA 2020 approved and has an optimal efficiency rating of 77%. It comes standard with a blower to help push the heat across the room. Faceplates are available in standard 29" x 44", large 32" x 50" and cuttable 18 gauge 32" x 50". The simple design makes the Escape 1800-I a very user friendly stove that will fit in any home decor. If you are looking to purchase an affordable wood burning fireplace insert with a high heating output, the Escape 1800-I Wood Insert is for you.
Specifications & Manual
Escape 1800-I Wood Insert Manual
| Drolet 1800-I Wood Insert Specifications | |
| Fuel Type | Dry cordwood (16" recommended) |
| Recommended heating area | 500 - 2,100 ft² |
| Overall firebox volume | 2.4 ft³ |
| EPA loading volume | 2.02 ft³ |
| Maximum burn time | 8 h |
| Maximum heat output-dry cordwood | 75,000 BTU/h (22.0 kW) |
| Minimum overall heat output rate | 14,800 BTU/h (4.34 kW) |
| Maximum overall heat output rate | 28,600 BTU/h (8.38 kW) |
| Average overall efficiency-dry cordwood (HHV) | 69% |
| Average overall efficiency-dry cordwood (LHV) | 74% |
| Optimum efficiency | 77% |
| Optimum heat transfer efficiency | 75% |
| Average particulate emission rate | 1.54 g/h |
| Average CO | 89.4 g/h |
| Size | Large |
| Premium quality blower included (CFM) | 144 |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6” |
| Distance-center of the flue outlet to back unit | 6 ⅞” |
| Distance-center of the flue outlet to side unit | 13 1/2” |
| Chimney diameter | 6” |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height | 12’ |
| Overall dimension (Width) | 28 ⅜” |
| Overall dimension (Height) | 23 1/8” |
| Overall dimension (Depth) | 26 ⅜” |
| Door Type | Single, glass with cast iron frame |
| Door opening size (Width) | 17 ½” |
| Door opening size (Height) | 9” |
| Glass Type | Ceramic Glass |
| Glass surface - W x H | 16" x 9 1/4" |
| Firebox size (Width) | 21” |
| Firebox size (Height) | 11 7/8” |
| Firebox size (Depth) | 16 1/2” |
| Maximum log length | 20” |
| Log positioning | Loading over width |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| Minimum fireplace opening (Height) | 23 ⅜” |
| Minimum fireplace opening (Width) | 28 7/8” |
| Minimum fireplace opening (Depth) | 15 3/4” |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA / ASTM WK47329 |
| Canadian Standard (safety) | ULC S628 |
| USA Standard (safety) | UL 1482, UL 737 |
| Steel thickness-body | 3/16” |
| Steel thickness-top | 5/16” |
| Warranty | Limited Lifetime |
| Shipping Weight | 405 lb (178 kg) |
Minimum Clearance to Combustibles:
| Clearance to Combustibles* | Canada | United States |
| Clearance - Combustible side wall to unit | 16" | 16” |
| Clearance - Combustible side mantle to unit | 9" | 9” |
| Clearance - Combustible top mantle to unit | 27" | 27” |
| Clearance - Top of the unit to a 12" combustible mantle shelf | 27" | 27” |
| Clearance - Base of the unit to ceiling** | 84" | 84” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||
