Chimney Thimbles: Passing Safely Through a Combustible Wall
July 19, 2023
A major cause of chimney related fires, is failure to maintain required clearances (air space) to combustible materials. It is of utmost importance that the Insulated Thimble be installed only in accordance with their instructions.
Running any residential or building heating appliance, burning gas, liquid, or solid fuels through a combustible wall, will require an Insulated Wall Thimble as your passageway to connect appliances to interior or exterior masonry chimneys. The criteria for installing the Insulated Wall Thimble is in accordance with the N.F.P.A. 211 (Standard for Chimneys, Fireplaces, Vents and Solid Fuel Burning Appliances) and building codes, and should be UL Listed.

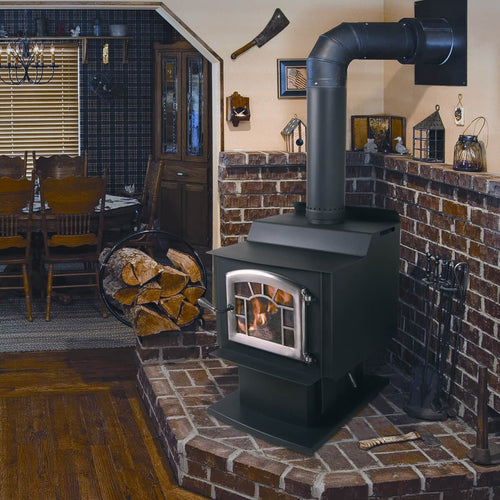

Wall thimbles are an important component for venting stoves and other appliances since the thimble will insulate between the pipe and the wall, to protect drywall, wood frames and other materials from high temperatures and risk of fires. Insulated Wall Thimbles are designed so the thimble assembly will reduce the minimum 18 inch clearance to combustibles, to a minimum of at least 2" clearance. You should pack insulation snugly against the outside box frame of the thimble, but never place insulation into the area within the thimbles's cylinder.
Single wall stove pipe, going from the stove to the chimney must have a minimum of 18" clearance to combustibles. 180 degree heat shields are available for single wall pipe, to reduce clearances to 6" for walls and 9" to the ceiling. Clearance for double wall stove pipe is 6" for these areas.
