Stainless Steel Chase Cover Order Form
Select the number of holes for your Chase Cover by clicking one of the tabs below.
Measuring For Your Custom Chimney Chase Cover
Also see our video Chimney Chase Cover Measuring Guide.

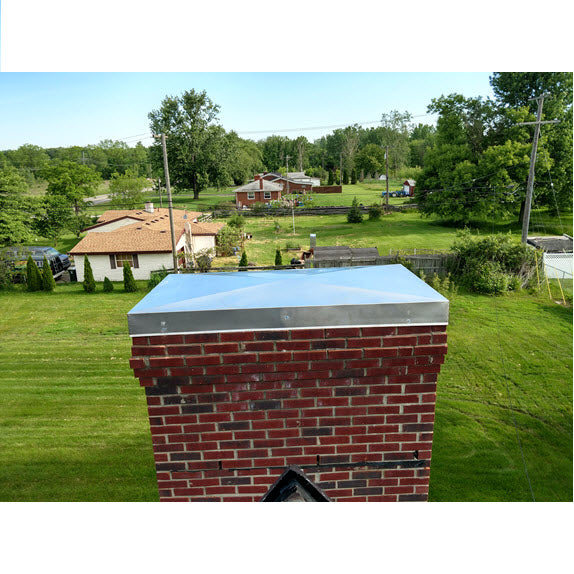

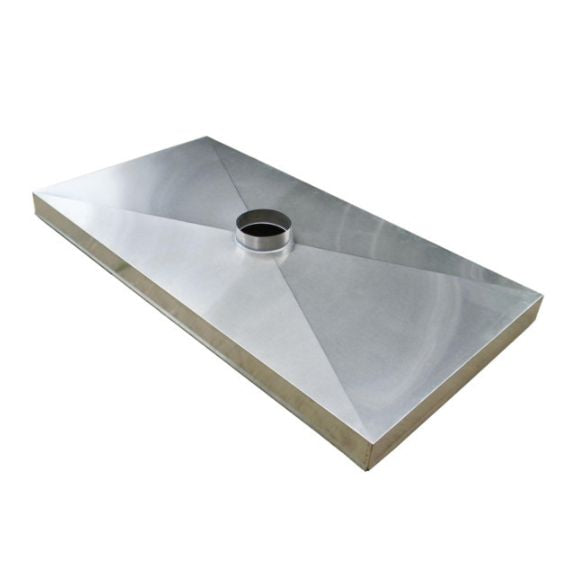

A chase cover fits over the top outside edge of your chase or brick chimney, similar to a shoe box top. It can have no holes one hole or multiple holes, and is custom fitted to your particular chimney or chase. Here's how to measure for a great fit:

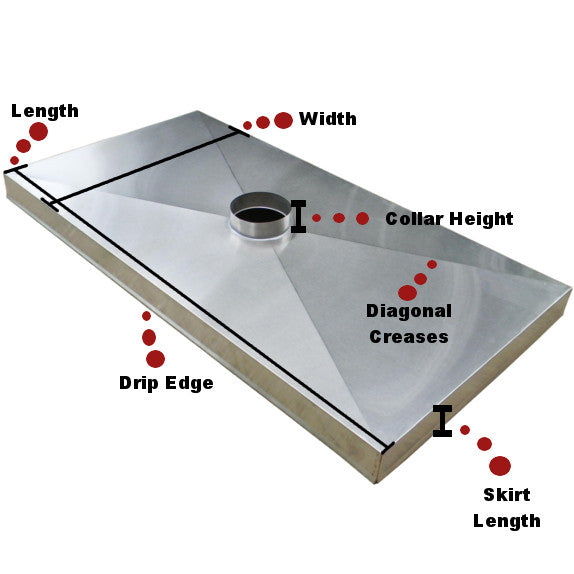

Length and Width: When measuring for a custom fitted chase cover, it is important that all measurements are accurate to the nearest 1/8". Also, be sure to measure all four sides. Just because one side appears to be the same length as the other does not mean it is! Mortar joints in between the bricks may be slightly different sizes, causing uneven side lengths. Measure both long sides and use the longest measurement for the length. Then measure both short sides and use the longest measurement for the width. 1/4" should be added to both length and width to provide the necessary tolerance for fabricating your chase cover.
Hole Measurements: If you need a hole or holes for your flue pipe to come through the chase cover, you should measure the round pipe diameter and add 1/2". (For oval or square/rectangle liners, add 1/2" to each dimension.) This extra allowance is important. If the hole is too small, your pipe will not fit through the chase cover. The gap between the pipe and hole can covered with an optional storm collar (for rigid pipe), or sealed with a sealer (for clay tile).
Be sure to include the dimensions to the edge of each hole from all four sides of the chase cover, so that the hole can be placed correctly. If you want the hole to be centered, then no additional dimensions are needed.

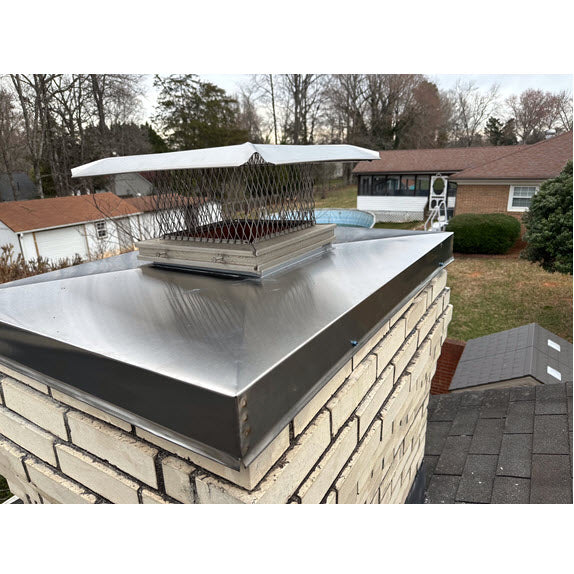

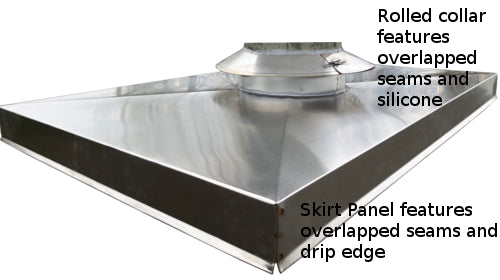

Collar Height: The standard collar is 2" to 3". The collar is rolled out with an overlap, spot welded, and siliconed for extra protection. For a square or rectangle hole that will have a clay tile flue liner protruding from it, you may want to make the collar the same height as the clay tile in order to install a single flue chimney cap.
Skirt Length: The skirt length should be long enough to cover any exposed wood and allow fasteners to go through the skirt and into the structure behind it for security. Standard skirt lengths are around 3".
Drip Edge and Diagonal Creases: Two important, no charge options are the top diagonal creases and the 1/2" drip edge, added to the bottom of the skirt. The creases prevent water and snow from accumulating and the drip edges keep the water from falling directly onto your siding or brick. Only the length, width and number of holes determine the price of the cover.

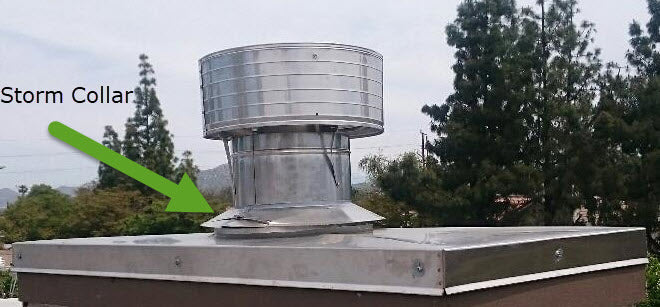

Storm Collar: Use the chart below to select your storm collar size.
| Storm Collar Size Chart | |
| 3" | fits 2 7/8" to 3 1/4" |
| 4" | fits 3 7/8" to 4 3/8" |
| 5" | fits 4 7/8" to 5 1/4" |
| 6" | fits 5 1/2" to 6 1/4" |
| 7" | fits 6 1/2" to 7 1/4" |
| 8" | fits 7 1/2" to 8 1/4" |
| 9" | fits 8 1/2" to 9 1/4" |
| 10" | fits 9 1/2" to 10 1/4" |
| 11" | fits 10 1/2" to 11 1/4" |
| 12" | fits 11 1/4" to 12 1/4" |
| 13" | fits 12 1/2" to 13 1/4" |
| 14" | fits 13 1/2" to 14 1/4" |
| 15" | fits 14 1/4" to 15 1/4" |
| 16" | fits 15 1/4" to 16 1/4" |
We hope these tips have been helpful. If you still have questions, please contact us and we will be glad to answer them.
Rockford Chimney Supply recommends and manufactures custom chase covers made of 304 stainless steel or copper, and they come with a lifetime warranty. We custom make every chase cover you can imagine, from 16" x 16" all the way up to 100" x 100". All seams are welded. The standard skirting / flashing is 3" with a drip edge. Our standard metal thickness is 24 gauge. If you would like a thicker gauge, you may select 22 gauge at a 10% additional cost or 20 gauge at a 15% additional cost. Any size, any shape, copper or stainless steel, multiple vents, the list goes on, it's all up to you. Buy your chimney cover online from Rockford Chimney Supply. Chimney covers, Flue Covers, Steel chimney tops, and Stainless steel flue caps are our specialty.
