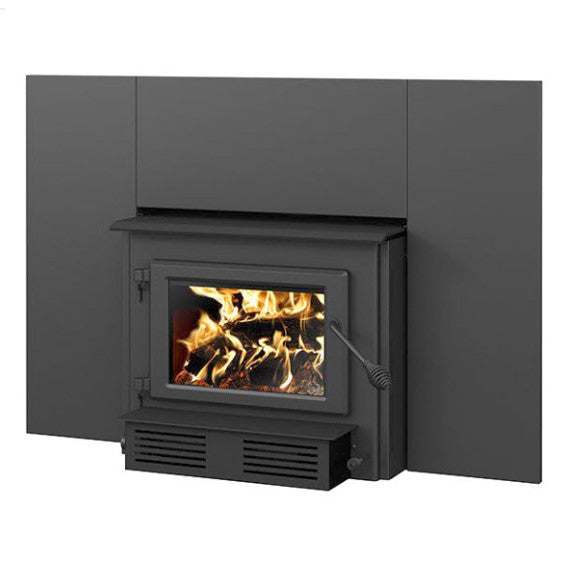

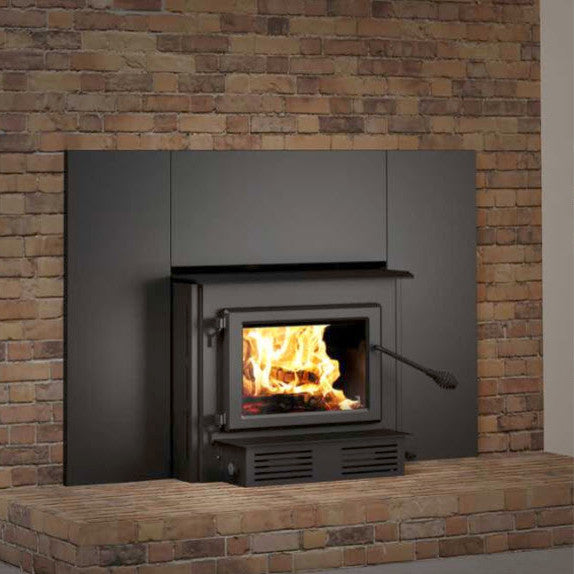

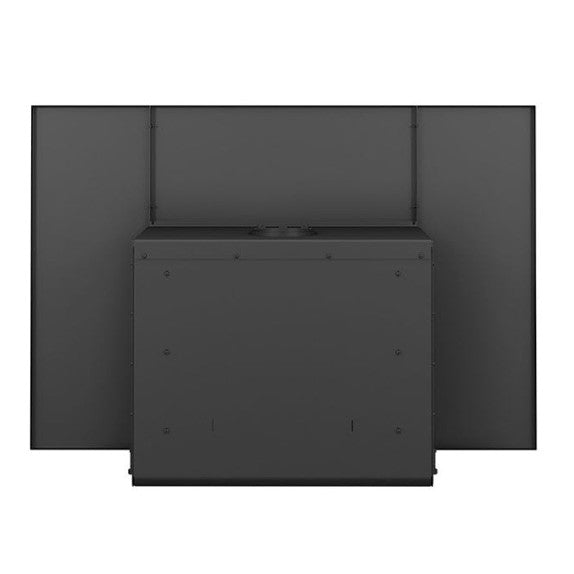

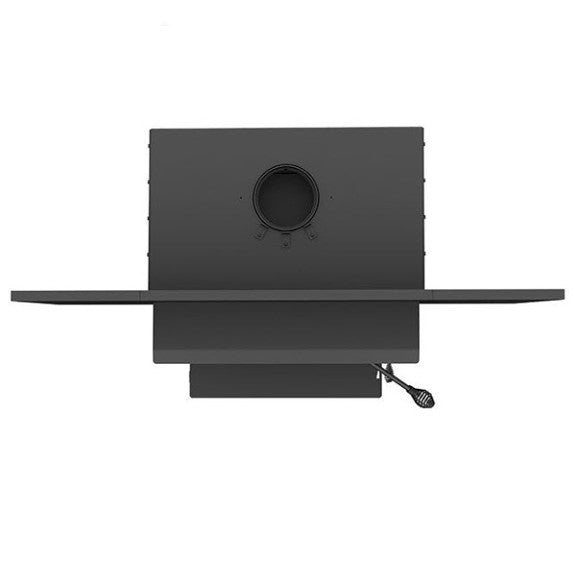

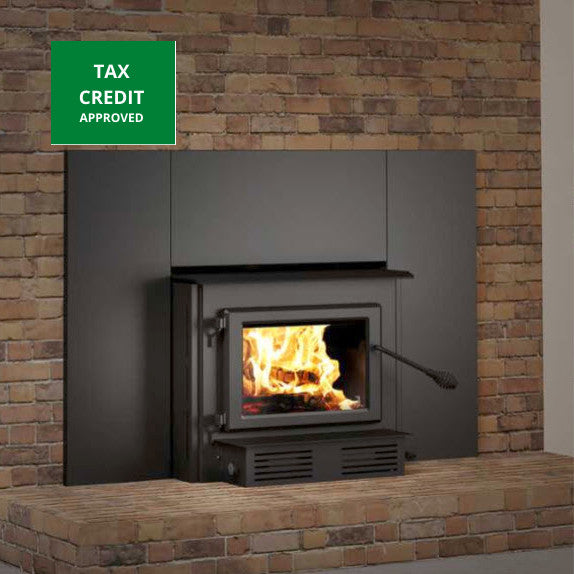

Century Heating CW2900 Wood Burning Insert
Product Images
Century Heating CW2900 Wood Burning Insert
Century Heating CW2900 Wood Burning Insert
Century Heating CW2900 Wood Burning Insert
Century Heating CW2900 Wood Burning Insert
Century Heating CW2900 Wood Burning Insert
Rigid Fire Screen
Fresh Air Intake
Product Details:
The Century Heating CW2900 Wood Burning Insert is a large size wood insert that is capable of heating up to 2,100 square feet. The 2.4" cubic foot firebox holds up to a 20" log and provides up to an 8 hour burn time. This EPA rated wood insert can produce up to 75,000 BTUs and has an optimal efficiency rating of 77%. The non-catalytic stove is easy to run and operate. A powerful 144 CFM blower is included to help push the heat across the space.
The Century Heating CW2900 insert comes standard with the large 34" x 50" faceplate, there is no need to upgrade. The unique spring attachment faceplate allows you to easily set the faceplate to any hearth material. The springs will tension the faceplate to the hearth without having to set the faceplate manually. The modern design will fit with most any decor while also providing plenty of warmth in the cold winter months. It is a challenge to find a wood stove insert for under $2000, the Century Heating CW2900 wood burning insert fulfills that challenge with a great combination of function and affordability.
Specifications & Manual
Century Heating CW2900 Wood Burning Insert Installation Manual
Century Heating CW2900 Wood Burning Insert Stove Dimensions
| Century Heating CW2900 Specifications | |
| Premium quality blower included (CFM) | Included (144 CFM) |
| Certified according to applicable standards | CAN/USA accredited laboratory |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12 ft. |
| Overall dimension (Width) | 28 1/2" |
| Overall dimension (Depth) | 26 1/2" |
| Overall dimension (Height) | 22 5/8" |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 17 1/2" |
| Door opening size (Height) | 9" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 14 7/8" x 9 1/4" |
| Firebox size (Width) | 21" |
| Firebox size (Height) | 11 7/8" |
| Firebox size (Depth) | 16 1/2" |
| Maximum log length | 20" (16" recommended) |
| Log positioning | Loading over width |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S628 |
| USA Standard (safety) | UL 1482, UL 737 |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 1/4" |
| Warranty | Limited 5 years |
| Shipping weight | 415 lb (188 kg) |
| Fuel type | Dry cordwood |
| Recommended heating area | 500 - 2,100 ft² |
| Overall firebox volume | 2.4 ft³ |
| EPA loading volume | 2.02 ft³ |
| Maximum burn time | 8 h |
| Maximum heat output-dry cordwood | 75,000 BTU/h |
| Minimum overall heat output rate | 14,800 BTU/h (4.34 kW) |
| Maximum overall heat output rate | 28,600 BTU/h (8.38 kW) |
| Average overall efficiency-dry cordwood (HHV) | 69% |
| Average overall efficiency-dry cordwood (LHV) | 74% |
| Optimum efficiency | 77% |
| Optimum heat transfer efficiency | 75% |
| Average particulate emission rate | 1.54 g/h |
| Average CO | 89.4 g/h |
Minimum Clearance to Combustibles:
| Clearance to Combustibles* | Canada | United States | ||
|---|---|---|---|---|
| Clearance - Combustible side wall to unit | 16" | 16” | ||
| Clearance - Combustible side mantle to unit | 9" | 9” | ||
| Clearance - Combustible top mantle to unit | 27" | 27” | ||
| Clearance - Top of the unit to a 12" combustible mantle shelf | 27" | 27” | ||
| Clearance - Base of the unit to ceiling** | 84” | 84” | ||
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | ||||
