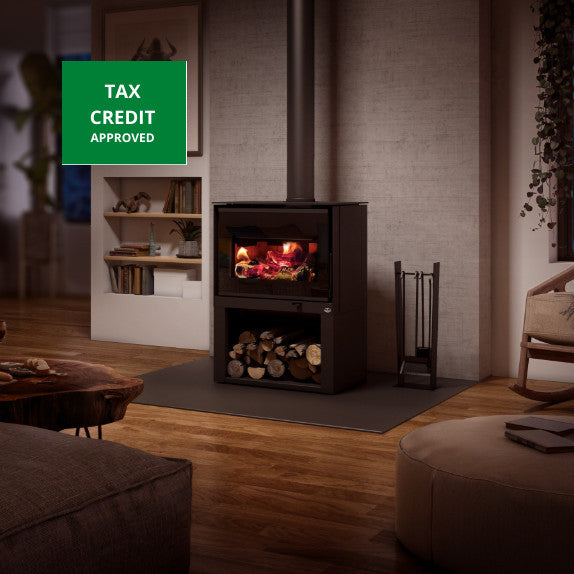

The Osburn Inspire 2000 freestanding wood stove features both sleek style and the wood burning efficiency you are looking for. Design your Inspire 2000 stove by first choosing one of the three base options available: minimalist base to keep the unit low, steel base to add firewood storage, or the soapstone base to add storage and radiant heat from the soapstone. With the base kits, there is a style available for everyone's taste.
The Osburn Inspire wood stove has impressive heating capabilities in addition to it's beautiful design. Heat your living space from 500 to 2,100 square feet with a maximum burn time of 8 hours and maximum heat output of 75,000 BTU/h. The firebox volume at 2.4 allows you to burn logs up to 20" in length.
Features
- High-efficiency appliance 2020 EPA approved
- Recommended heating area : 500 - 2,100 square feet
- Color: Black
- Maximum log length : 20"
- Overall firebox volume : 2.4
- Non-catalytic combustion technology
- Optimum efficiency : 77%
- Emissions (grams/hour) : 1.54 g/h
- Baffle : High heat-resistant C-cast
- Maximum burn time : 8 hours
- Firebox lined with refractory bricks for better heat distribution
- Stainless-steel secondary-air system improving gas combustion
- Recommended chimney diameter : 6"
Measuring for Your Osburn Inspire 2000
Stove Insert Measurement Guides
Installing Your New Wood Stove
Osburn Inspire 2000 Wood Stove Specifications |
|
Depth - Overall | 24 15/16" |
Height - Overall | 36 9/16" |
Width - Overall | 27 7/8" |
Firebox dimensions (Depth) | 17 11/16" |
Firebox dimensions (Width) | 21 1/4" |
Firebox dimensions (Height) | 11 15/16" |
Type of Fuel | Wood |
Maximum log length | 20" |
Log positioning | Over width |
Recommended Heating Area (sq. ft.) | 500-2,100 |
Firebox volume (cu. ft.) | 2.4 |
Door opening dimensions (Width) | 20" |
Door opening dimensions (Height) | 8 3/8" |
Type of Door | Single, glass with steel frame |
Glass Surface | 20 1/4" x 9 1/2" |
Glass Type | Ceramic glass |
Weight | 537 lb (244 kg) |
Recommended chimney diameter | 6" |
Flue Outlet Diameter | 6" |
Minimum chimney height (feet) | 12' |
Minimum floor protection in front of unit | 18" CAN/16"USA |
Center line of flue outlet to the back | 6 3/8" |
Center line of flue outlet to the side | 14" |
Maximum output - EPA test wood | 28,600 BTU/h |
Maximum output - seasoned cord wood | 75,000 BTU/h |
Steel thickness (top) | 5/16" |
Optimum efficiency | 77% |
Emissions (grams/hour) | 1.54 g/h |
Baffle | High heat-resistant C-cast |
Canadian Standard (emissions) | CSA B415.1-10 |
USA standard (emissions) | EPA |
Canadian Standard (safety) | ULC-S627 |
USA standard (safety) | UL 1482/UL 737 |
Warranty | Limited lifetime |
Minimum Clearances to Combustibles
Osburn Inspire 2000 Wood Stove Minimum Clearances to Combustibles* | ||
Single Wall Stove Pipe | Double Wall Stove Pipe | |
Clearance - back wall | 11" US / 14 1/2" CA | 6" US / 6" CA |
Clearance - placed in a corner | 10" US / 10" CA | 7" US / 7" CA |
Clearance - side wall | 16" US / 17" CA | 16" US / 17" CA |
Clearance – top (measured from the platform on which the appliance is installed)** | 84" US / 84" CA | 84" US / 84" CA |
Clearance - minimum floor protection in front of the fireplace | 16" US / 18" CA | 16" US / 18" CA |
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. |
