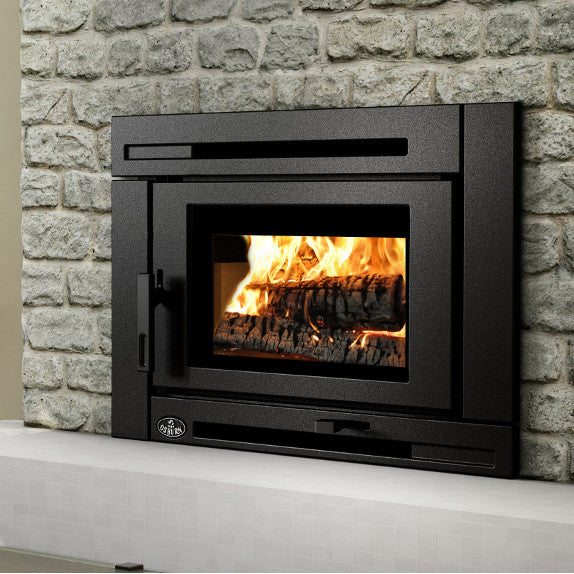

Osburn Matrix Wood Burning Insert

Product Images

Osburn Matrix Wood Burning Insert

Osburn Matrix Wood Burning Insert

Osburn Matrix Wood Burning Insert

Osburn Matrix Wood Burning Insert

Osburn Matrix Wood Burning Insert

Osburn Matrix Wood Burning Insert

Osburn Matrix Wood Burning Insert

Osburn Matrix Wood Burning Insert

Osburn Matrix Wood Burning Insert

Osburn Matrix Wood Burning Insert

Description:
Approx. Heating Area: 500 - 2,100 sq. ft. Max Output: 75,000 BTU/hEligible for Tax Incentive

Approx. Heating Area: 500 - 2,100 sq. ft. Max Output: 75,000 BTU/h

Eligible for Tax Incentive

$3,499.00

Product Details:

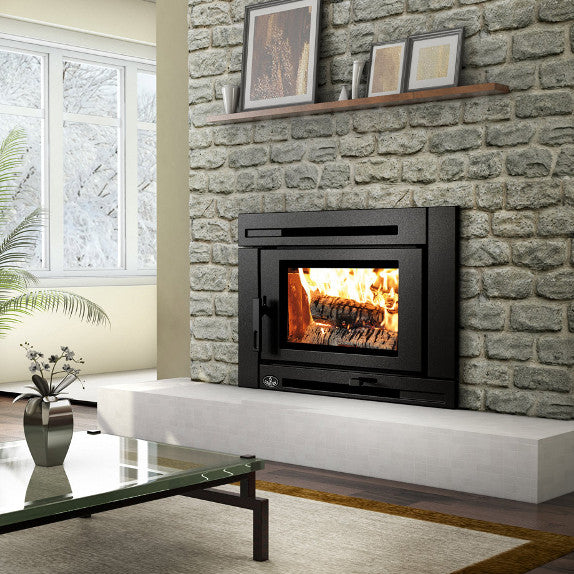

The Matrix wood insert defines the new standards for contemporary look and performance. This fireplace insert looks like a sleek fireplace, but has all the advantages of an insert. Its faceplate and blower assembly were developed to allow a flush finish with the masonry fireplace. Cast iron was selected as the material of choice for this clean and modern unit. Installation into larger openings is facilitated by the use of an optional sheet metal backing plate. This insert will surely become the focal point of the room.

The included surround for the Matrix wood insert measures 36.125" x 25.125". Optional Backing Plate Kits available for larger openings that require a larger surround.

Specifications & Manual

Osburn Matrix Wood Insert Manual

Osburn Matrix Wood Insert Dimensions

Osburn Matrix Backing Plate and Projection Kit Installation Guide

Osburn Matrix Wood Burning Insert
Type of Fuel Wood
Minimum chimney height (feet) 12
Recommended chimney diameter 6"
Minimum fireplace opening (Width) 28 7/8"
Minimum fireplace opening (Height) 23 5/16"
Minimum fireplace opening (Depth) 19 5/8"
Depth - Overall 23 1/8"
Height - Overall 25 1/8"
Width - Overall 36 1/8"
Firebox dimensions (Depth) 16 3/4"
Firebox dimensions (Width) 21"
Firebox dimensions (Height) 11 7/8"
Firebox volume (cu. ft.) 2.4
Recommended Heating Area (sq. ft.) 500-2,100
Maximum log length 20"
Log positioning Over width
Door opening dimensions (Width) 17 1/2"
Door opening dimensions (Height) 8 3/4"
Type of Door Single, glass with cast iron frame
Glass Surface 11 7/8" x 19 5/8"
Glass Type Ceramic glass
Weight 484 lb (220 kg)
Center line of flue outlet to the back 5 5/8"
Center line of flue outlet to the side 13 1/2"
Maximum output - EPA test wood 28,600 BTU
Maximum output - seasoned cord wood 75,000 BTU
Steel thickness (body) 3/16"
Steel thickness (top) 5/16"
Optimum efficiency 77%
Emissions (grams/hour) 1.54 g/h
Baffle High heat-resistant C-cast
Approval for Mobile Home Installation No
Canadian Standard (emissions) CSA B415.1-10
USA standard (emissions) EPA
Canadian Standard (safety) ULC-S628
USA standard (safety) UL-1482, UL-737
Warranty Limited lifetime

Minimum Clearances to Combustibles

Osburn Matrix Insert Minimum Clearances to Combustibles*
Clearance – combustible side mantle to unit 9"
Clearance – combustible top mantle to unit 27"
Clearance – combustible side wall to unit 16"
Clearance – minimum floor protection in front of the appliance 16" US / 18" CA
Clearance – top shelf to unit 27"
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

Specifications:

Features

  • High-efficiency appliance 2020 EPA approved
  • Blower Included : 90 CFM
  • Recommended heating area : 500 - 2,100 square feet
  • Maximum burn time : 8 hours
  • Maximum heat output : 75,000 BTU/h
  • Glass air-wash system
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless-steel secondary-air system improving gas combustion
  • Constant view of the fire through 19 5/8" x 11 7/8" glass surface
  • Approved Chimney Liner: Rock-Flex Stainless Flexible Liner Kit

Help & Documents:

Optional Accessory Details

Fresh Air Kit - 5 in. Diameter Oval

The 5" Fresh Air Oval Kit is required if you plan on connecting a fresh air intake pipe. The oval adapter kit comes with the oval adapter, 2 clamps and the fresh air intake register hood. The oval adapter is intended for 5" fresh air intake pipe. You will have to manually ovalize the flexible intake pipe to make the connection to the adapter. The oval adapter can be positioned on either side of the fireplace insert.

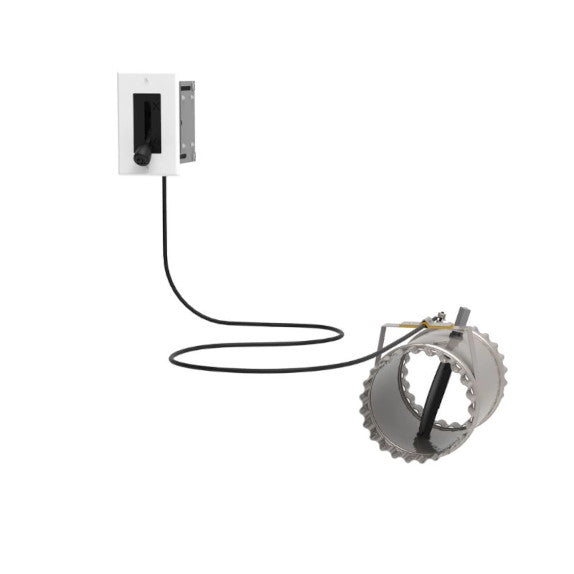

5" Fresh Air Intake Register with Airtight Damper

The 5" Fresh Air Intake Register with Airtight Damper opens and closes the fresh air supply to a wood stove insert. It's simple mechanism makes it possible to close the damper tightly when the wood stove insert is not in use. This will ensure the wood stove insert is not being cooled while the stove is not in use. Fresh Air Intake with Damper Installation Guide

Rigid Fire Screen

The Rigid Fire Screen allows you to burn wood in the wood insert with the door open just like an old-time fireplace. Hear the crackle of the wood, watch the flames dance around in the firebox and relax around the wood insert on a cold winter's night. The Rigid Fire Screen is easy to install and easy to remove when you are ready to load more wood. The insert should not be burning with the door open without the Fire Screen.

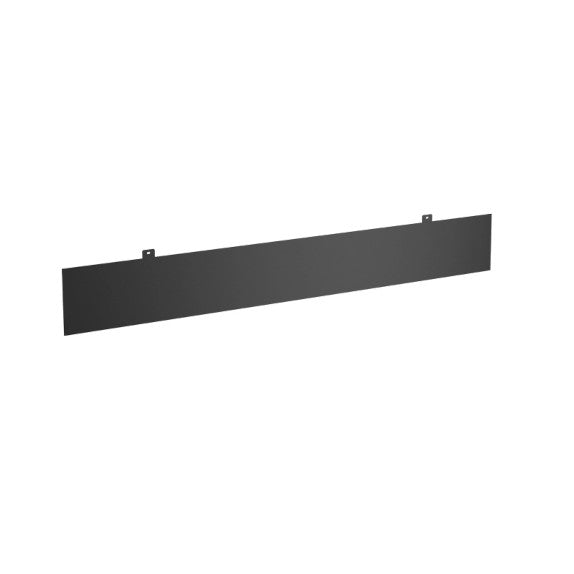

Bottom Faceplate Backing Plate

In the event the current fireplace is elevated above the hearth, then the Faceplate Backing Plate Kit is installed. The Bottom Faceplate Backing Plate is used to finish off this type of installation. This backing plate will provide the look of a picture frame around the insert. The Bottom Faceplate Backing Plate is available in both 44" x 6" and 50" x 6" sizes. Bottom Faceplate Backing Plate Installation Guide

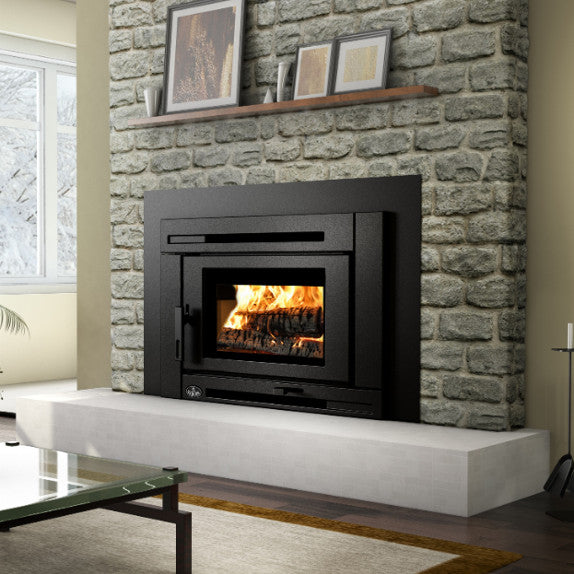

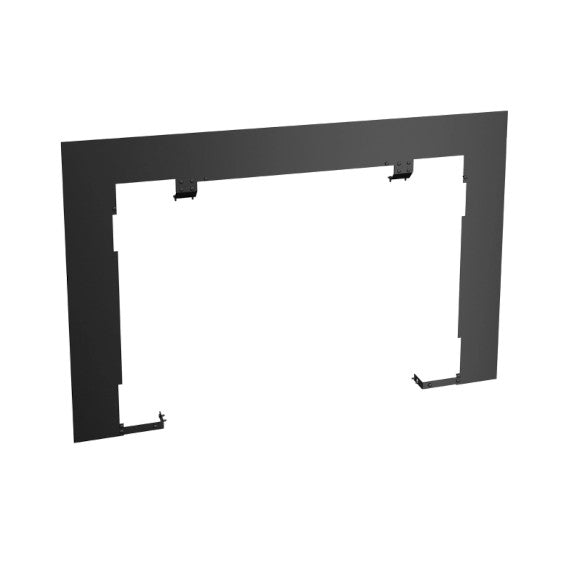

Faceplate Backing Plate Kit

The Faceplate Backing Plate is used when the standard flashing for the Osburn Matrix is not large enough to cover the opening of the fireplace. The standard Matrix surround measures 36.125" x 25.125". The Faceplate Backing Plate can be used to extend the surround to seal off the fireplace. The Backing Plate is available in two sizes: 44" x 29" and 50" x 29". The Projection Kit can be used in conjunction with the Faceplate Backing Plate Kit. The backing plate easily installs to the back of the standard surround. Faceplate Backing Plate Kit Installation Guide

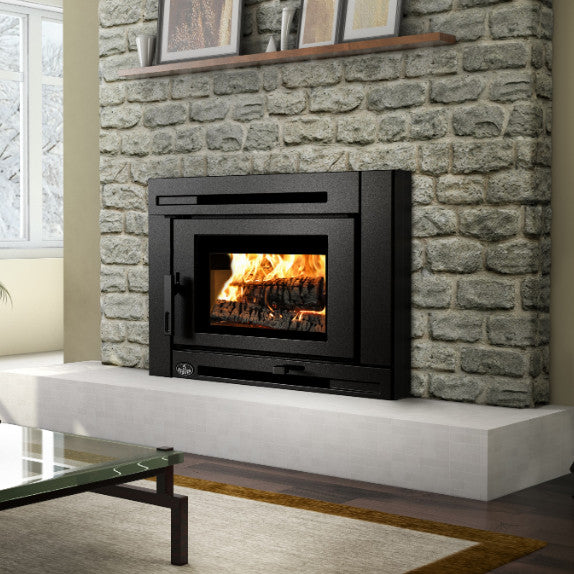

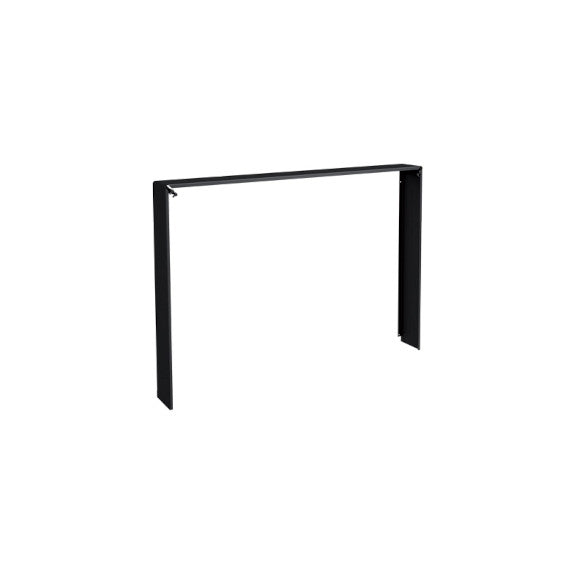

Projection Kit For Insert - 2 in. or 4 in.

The Projection Kit for the Osburn Matrix fireplace insert is the perfect solution if your fireplace depth is not large enough to fully push the insert into the fireplace opening. The Projection Kit can extend the insert either 2 or 4 inches outside of the fireplace. The Projection Kit simply bolts to the Matrix Faceplate for an easy installation. All of the required hardware is included. Projection Kit Installation Guide

Optional Chimney Liner Kit

Rock-Flex 316Ti stainless steel chimney liner kits are UL listed and the perfect choice to install for your new wood burning insert. Each kit includes the 316Ti Flexible Chimney Liner, Vertical Appliance Connector, 13 x 13 in. Premium Top Plate, and Round Rain Cap.

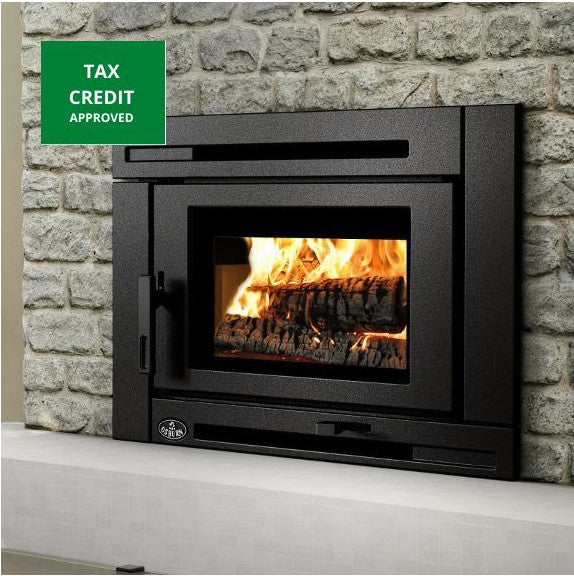

Tax Credit Information

The Osburn Matrix Wood Burning Insert is EPA rated and has a HHV rating of 75% which qualifies for the wood and pellet stove tax credit through the end of 2032. From January 2023 through December 2032 you can receive up to a 30% tax credit for the installation and parts required, such as chimney liner and insulation. This is one of the largest tax credits the wood and pellet stove industry has ever had. If you are looking to update your old drafty fireplace consider the Osburn Matrix Wood Burning Insert.

Click here to view more information about the tax credit

Osburn Tax Certificate

Osburn Efficiency Summary
