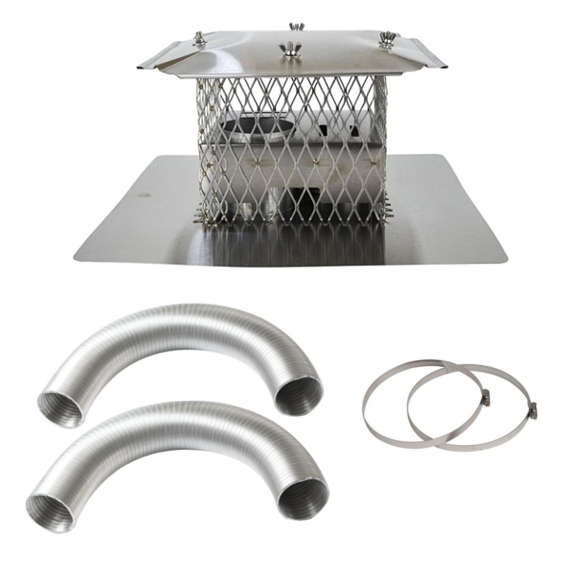

Co-Linear Chimney Cap and Liner Kit

Product Images

Co-Linear Chimney Cap and Liner Kit

Co-Linear Chimney Cap and Liner Kit
Description:
Use a Co-Linear Chimney Cap and Liner Kit to vent your gas or pellet fueled stove or insert into your...

Use a Co-Linear Chimney Cap and Liner Kit to vent your gas or pellet fueled stove or insert into your masonry chimney with the included exhaust and fresh air intake flexible liners.

Loading...
Configure for Price

Optional Add Ons:

Configure for Price

Product Details

Specifications

Help & Documents

Crown Mount Co-Linear Chimney Caps are the best option for venting a gas or pellet fireplace insert or stove in a masonry chimney. This unique chimney cap can accommodate the exhaust as well as the fresh air intake. No need to cut a hole in the side of the home, utilize the chimney for all your fresh air needs. The cap separates the exhaust and fresh air intake to ensure that the exhaust gas doesn't get pulled down the intake line.

The Crown Mount Co-Linear Chimney Cap is fixed on a 17" x 17" plate and is available in either a 3" exhaust with 3" air intake OR 4" exhaust with 3" air intake. The Co-Linear Chimney Caps are constructed from 304L stainless steel and equipped with quick-connect collars to easily attach the liners to the chimney cap.

Features:

  • 304L stainless steel chimney cap
  • Connect both the exhaust liner and fresh air intake liner in one cap
  • Includes 35' of 430 stainless steel flexible liner for fresh air intake
  • Includes 35' of 430 stainless steel flexible liner for exhaust
  • Includes two stainless steel hose clamps

Applications:

  • Used to vent a gas stove or gas fireplace insert into a masonry chimney along with the fresh air intake
  • Used to vent a pellet stove or pellet fireplace insert into a masonry chimney along with the fresh air intake
  • The crown mount plate installs onto the clay tile with silicone or to the chimney crown with masonry anchors (purchased separately)

If you will be connecting to a pellet stove, be sure to choose a connector to connect the flex liner to the exhaust hole. The Appliance Connector is used to connect vertically to the top of the stove. The Tee Connector is used to connect horizontally to the back of the stove. Please choose the connector selection in the options box above.

Product Details:

Crown Mount Co-Linear Chimney Caps are the best option for venting a gas or pellet fireplace insert or stove in a masonry chimney. This unique chimney cap can accommodate the exhaust as well as the fresh air intake. No need to cut a hole in the side of the home, utilize the chimney for all your fresh air needs. The cap separates the exhaust and fresh air intake to ensure that the exhaust gas doesn't get pulled down the intake line.

The Crown Mount Co-Linear Chimney Cap is fixed on a 17" x 17" plate and is available in either a 3" exhaust with 3" air intake OR 4" exhaust with 3" air intake. The Co-Linear Chimney Caps are constructed from 304L stainless steel and equipped with quick-connect collars to easily attach the liners to the chimney cap.

Specifications:

Features:

  • 304L stainless steel chimney cap
  • Connect both the exhaust liner and fresh air intake liner in one cap
  • Includes 35' of 430 stainless steel flexible liner for fresh air intake
  • Includes 35' of 430 stainless steel flexible liner for exhaust
  • Includes two stainless steel hose clamps

Help & Documents:

Applications:

  • Used to vent a gas stove or gas fireplace insert into a masonry chimney along with the fresh air intake
  • Used to vent a pellet stove or pellet fireplace insert into a masonry chimney along with the fresh air intake
  • The crown mount plate installs onto the clay tile with silicone or to the chimney crown with masonry anchors (purchased separately)

If you will be connecting to a pellet stove, be sure to choose a connector to connect the flex liner to the exhaust hole. The Appliance Connector is used to connect vertically to the top of the stove. The Tee Connector is used to connect horizontally to the back of the stove. Please choose the connector selection in the options box above.
