Drolet Eco-65R Pellet Stove

Product Images

Drolet Eco-65R Pellet Stove

Drolet Eco-65R Pellet Stove

Drolet Eco-65R Pellet Stove

Drolet Eco-65R Pellet Stove

Drolet Eco-65R Pellet Stove

Drolet Eco-65R Pellet Stove

Drolet Eco-65R Pellet Stove

Drolet Eco-65R Pellet Stove

Drolet Eco-65R Pellet Stove

Drolet Eco-65R Pellet Stove

Drolet Eco-65R Pellet Stove

Drolet Eco-65R Pellet Stove

Drolet Eco-65R Pellet Stove

Drolet Eco-65R Pellet Stove

Description:
Approx. Heating Area: 800 - 2600 sq.ft.Maximum Output: 28,526 BTU/hTax Credit Eligible

Approx. Heating Area: 800 - 2600 sq.ft.

Maximum Output: 28,526 BTU/h

Tax Credit Eligible

$3,799.00

Optional Add Ons:

Product Details

Specifications

Help & Documents

Options

The Drolet Eco-65R pellet stove capable of producing long lasting, stable heat with minimum effort. The giant hopper is capable of holding 125 pounds of wood pellets able to burn for up to 100 hours on one load of pellets. With a .77 g/h emissions rating and a 77% efficiency rating makes the Eco-65R pellet stove the perfect combination of high performance heating while far exceeding the EPA's strictest emissions standards.

Equipped with a powerful 500 CFM blower maximizes the 38,000 BTU's that is capable of heating up to 2,600 square feet. With the addition of the Hot Air Plenum Kit, you are able to run hot air vents to adjacent rooms maximizing the heating area.

Starting the Drolet Eco-65R could not be any easier. With the push of a button, the stove will ignite. The intuitive electronic controls allow you to manage the heat output in either the manual or thermostatic mode. Connect your Eco-65R Pellet Stove to a thermostat and enjoy maximum comfort with minimum effort. Not only is the Eco-65R pellet stove easy to operate, the intuitive design significantly reduces and simplifies the maintenance.

The Eco-65R pellet stove is a bottom-feed unit that requires less frequent maintenance than top-feed units. Access to the components are removable without tools which makes cleaning a breeze. The large ash drawer also allows you to reduce the frequency of maintenance.

The modern design will fit in with any decor and will be the focal point of any room it is in. If you are looking for a powerful pellet heating stove with minimum maintenance, the Drolet Eco-65R Pellet Stove is for you.

Included: cleaning tools (brush and scraper), 500 CFM fan, ceramic glass, ash shelf.

Features

  • Up to 100 hours burn time
  • Hopper capacity of 125 lb
  • Bottom-feed burner
  • EPA certified
  • Proudly made in Canada
  • Limited lifetime warranty
  • Certified for home installation

Measuring for Your Drolet Eco-65R Pellet Stove

Stove Insert Measurement Guides

Drolet Eco-65R Pellet Stove Specifications

Fuel type

Pellet (Premium grade or better)

Recommended heating area

800 - 2,600 ft²

Hopper capacity

125 lb (57 kg)

Maximum burn time

105 h

Maximum heat input rate

37,895 BTU/h ( 11.1 kW)

Minimum overall heat output rate

6,966 BTU/h (2.04 kW)

Maximum overall heat output rate

28,526 BTU/h (8.36 kW)

Minimum average overall efficiency (HHV)

76.7 %

Maximum average overall efficiency (LHV

84.4 %

Optimum efficiency

84.4 %

Optimum heat transfer efficiency

81 %

Burn rate

1.12 - 4.63 lb/h

Average particulate emission rate

0.77 g/h

Average CO

12.96 g/h

Average electrical power consumption for ignition cycle(1)

3.7 A (360 W)

Average electrical power consumption for continuous operation(1)

2.15 - 2.9 A (258 - 348 W)

Size

Large

Alcove installation approved

Yes

Mobile home approved

Yes, with fresh air intake

Certified according to applicable standards

By an accredited laboratory (CAN/USA)

Premium quality blower included (CFM)

CFM included

Combustion technology

Top-feed

Baffle type

Stainless steel

Flue outlet diameter

4"

Recommended chimney diameter

4"

Type of chimney

ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L)

Overall dimension (Width)

24"

Overall dimension (Height)

41"

Overall dimension (Depth)

34 3/8"

Voltage and frequency

120 VAC / 60 Hz

Noise level at 6 feet

53 dBa (+/- 3 dBa) - 59 dBa (+/- 3 dBa)

Door type

Single, glass with cast iron frame

Glass type

Ceramic glass

Glass surface - W x H

13 5/8" x 8 1/2"

High-efficiency certified appliance

Yes, EPA 2020 approved

Canadian Standard (emissions)

CSA B415.1-10

USA Standard (emissions)

EPA, ASTM E2779

Canadian Standard (safety)

ULC S627

USA Standard (safety)

UL 1482, ASTM E1509

Warranty

Limited lifetime

Shipping weight

440 lb (200 kg)



Optional Accessories:

3" x 5' Fresh Air Intake

The 3" x 5' Fresh air intake kit includes a 3" diameter aluminum insulated flexible liner that is 5' in length and also comes with the 3" wall vent hood. Fresh air is important for proper combustion for the stove. The fresh air intake kit is recommended for homes with a very tight building envelope. It will provide the stove with adequate combustion air to allow the stove to burn properly. The fresh air intake kit is required for mobile home installations.

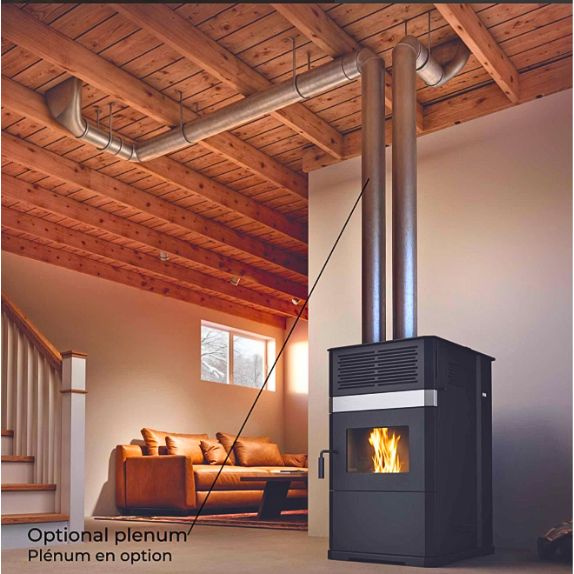

Hot Air Plenum Kit

The hot air plenum kit allows you to connect heating ducts to the pellet stove that are able to be routed to other rooms of the home, increasing the heating area. This unique feature is what sets the Drolet Eco-65R apart from the rest. Normally only pellet furnaces have a plenum to allow you to route heating ducts to other rooms. The Drolet Eco-65R allows you to connect two 5" heat ducts directly to the freestanding stove without having to tie into your currenting heating system. Note: 5" heat ducts are not included.

Digital Wall Thermostat

The Digital Wall Thermostat allows you to set the pellet stove to the exact temperature you desire to ensure a steady comfortable temperature without having to manually change the heat settings. Includes a 30' millivolt wire to allow you to connect the thermostat to the stove. When the pellet stove reaches the desired temperature for the room, the thermostat will turn off the pellet stove. When the room temperature then dips below the set temperature, the thermostat will start the pellet stove. If you are really looking for an easy way to run the stove without having to constantly manage the heat settings, the Thermostat is for you.

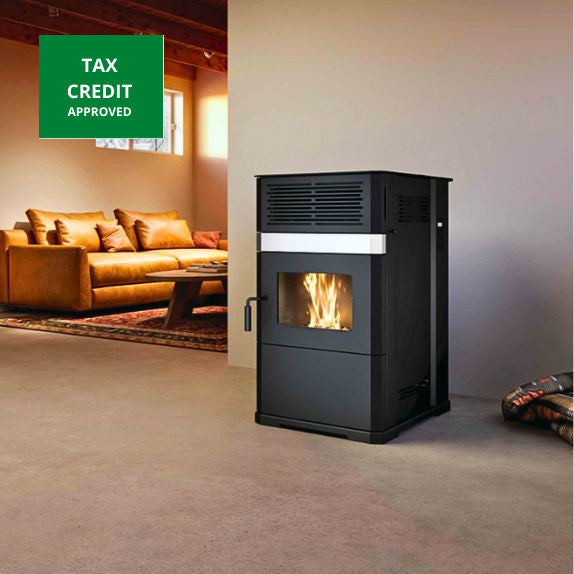

Tax Credit Information

The Drolet Eco-65R Pellet Burning Stove is EPA rated and has a HHV rating of 75% which qualifies for the wood and pellet stove tax credit through the end of 2032. From January 2023 through December 2032 you can receive up to a 30% tax credit for the installation and parts required, such as chimney liner and insulation. This is one of the largest tax credits the wood and pellet stove industry has ever had. If you are looking to update your old drafty fireplace consider the Drolet Eco-65R Pellet Burning Stove.

Product Details:

The Drolet Eco-65R pellet stove capable of producing long lasting, stable heat with minimum effort. The giant hopper is capable of holding 125 pounds of wood pellets able to burn for up to 100 hours on one load of pellets. With a .77 g/h emissions rating and a 77% efficiency rating makes the Eco-65R pellet stove the perfect combination of high performance heating while far exceeding the EPA's strictest emissions standards.

Equipped with a powerful 500 CFM blower maximizes the 38,000 BTU's that is capable of heating up to 2,600 square feet. With the addition of the Hot Air Plenum Kit, you are able to run hot air vents to adjacent rooms maximizing the heating area.

Starting the Drolet Eco-65R could not be any easier. With the push of a button, the stove will ignite. The intuitive electronic controls allow you to manage the heat output in either the manual or thermostatic mode. Connect your Eco-65R Pellet Stove to a thermostat and enjoy maximum comfort with minimum effort. Not only is the Eco-65R pellet stove easy to operate, the intuitive design significantly reduces and simplifies the maintenance.

The Eco-65R pellet stove is a bottom-feed unit that requires less frequent maintenance than top-feed units. Access to the components are removable without tools which makes cleaning a breeze. The large ash drawer also allows you to reduce the frequency of maintenance.

The modern design will fit in with any decor and will be the focal point of any room it is in. If you are looking for a powerful pellet heating stove with minimum maintenance, the Drolet Eco-65R Pellet Stove is for you.

Included: cleaning tools (brush and scraper), 500 CFM fan, ceramic glass, ash shelf.

Features

  • Up to 100 hours burn time
  • Hopper capacity of 125 lb
  • Bottom-feed burner
  • EPA certified
  • Proudly made in Canada
  • Limited lifetime warranty
  • Certified for home installation

Measuring for Your Drolet Eco-65R Pellet Stove

Stove Insert Measurement Guides

Specifications:

Drolet Eco-65R Pellet Stove Specifications

Fuel type

Pellet (Premium grade or better)

Recommended heating area

800 - 2,600 ft²

Hopper capacity

125 lb (57 kg)

Maximum burn time

105 h

Maximum heat input rate

37,895 BTU/h ( 11.1 kW)

Minimum overall heat output rate

6,966 BTU/h (2.04 kW)

Maximum overall heat output rate

28,526 BTU/h (8.36 kW)

Minimum average overall efficiency (HHV)

76.7 %

Maximum average overall efficiency (LHV

84.4 %

Optimum efficiency

84.4 %

Optimum heat transfer efficiency

81 %

Burn rate

1.12 - 4.63 lb/h

Average particulate emission rate

0.77 g/h

Average CO

12.96 g/h

Average electrical power consumption for ignition cycle(1)

3.7 A (360 W)

Average electrical power consumption for continuous operation(1)

2.15 - 2.9 A (258 - 348 W)

Size

Large

Alcove installation approved

Yes

Mobile home approved

Yes, with fresh air intake

Certified according to applicable standards

By an accredited laboratory (CAN/USA)

Premium quality blower included (CFM)

CFM included

Combustion technology

Top-feed

Baffle type

Stainless steel

Flue outlet diameter

4"

Recommended chimney diameter

4"

Type of chimney

ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L)

Overall dimension (Width)

24"

Overall dimension (Height)

41"

Overall dimension (Depth)

34 3/8"

Voltage and frequency

120 VAC / 60 Hz

Noise level at 6 feet

53 dBa (+/- 3 dBa) - 59 dBa (+/- 3 dBa)

Door type

Single, glass with cast iron frame

Glass type

Ceramic glass

Glass surface - W x H

13 5/8" x 8 1/2"

High-efficiency certified appliance

Yes, EPA 2020 approved

Canadian Standard (emissions)

CSA B415.1-10

USA Standard (emissions)

EPA, ASTM E2779

Canadian Standard (safety)

ULC S627

USA Standard (safety)

UL 1482, ASTM E1509

Warranty

Limited lifetime

Shipping weight

440 lb (200 kg)



Options:

Optional Accessories:

3" x 5' Fresh Air Intake

The 3" x 5' Fresh air intake kit includes a 3" diameter aluminum insulated flexible liner that is 5' in length and also comes with the 3" wall vent hood. Fresh air is important for proper combustion for the stove. The fresh air intake kit is recommended for homes with a very tight building envelope. It will provide the stove with adequate combustion air to allow the stove to burn properly. The fresh air intake kit is required for mobile home installations.

Hot Air Plenum Kit

The hot air plenum kit allows you to connect heating ducts to the pellet stove that are able to be routed to other rooms of the home, increasing the heating area. This unique feature is what sets the Drolet Eco-65R apart from the rest. Normally only pellet furnaces have a plenum to allow you to route heating ducts to other rooms. The Drolet Eco-65R allows you to connect two 5" heat ducts directly to the freestanding stove without having to tie into your currenting heating system. Note: 5" heat ducts are not included.

Digital Wall Thermostat

The Digital Wall Thermostat allows you to set the pellet stove to the exact temperature you desire to ensure a steady comfortable temperature without having to manually change the heat settings. Includes a 30' millivolt wire to allow you to connect the thermostat to the stove. When the pellet stove reaches the desired temperature for the room, the thermostat will turn off the pellet stove. When the room temperature then dips below the set temperature, the thermostat will start the pellet stove. If you are really looking for an easy way to run the stove without having to constantly manage the heat settings, the Thermostat is for you.

Tax Credit Information

The Drolet Eco-65R Pellet Burning Stove is EPA rated and has a HHV rating of 75% which qualifies for the wood and pellet stove tax credit through the end of 2032. From January 2023 through December 2032 you can receive up to a 30% tax credit for the installation and parts required, such as chimney liner and insulation. This is one of the largest tax credits the wood and pellet stove industry has ever had. If you are looking to update your old drafty fireplace consider the Drolet Eco-65R Pellet Burning Stove.
