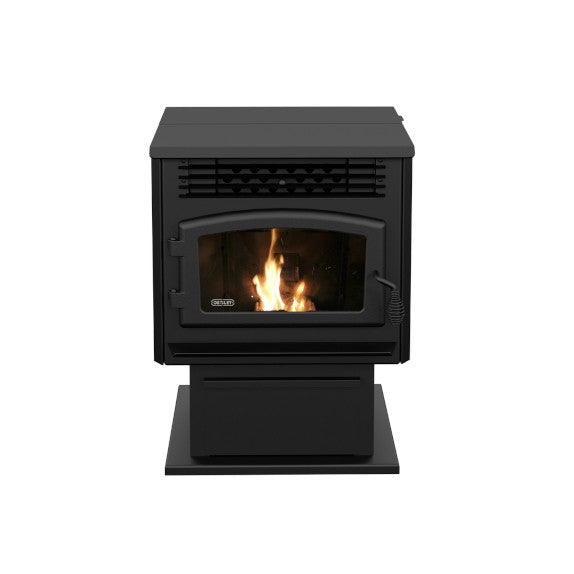

Drolet Pellet Stove Eco-55

Product Images

Drolet Pellet Stove Eco-55

Drolet Pellet Stove Eco-55

3 in. x 10 ft. Insulated Flex Pipe for Fresh Air Intake

3 in. x 10 ft. Insulated Flex Pipe for Fresh Air Intake

Hopper Extension

Hopper Extension

Description:
Approx. Heating Area: 500 to 2,000 sq. ft.Max Output: 28,540 BTU/h

Approx. Heating Area: 500 to 2,000 sq. ft.

Max Output: 28,540 BTU/h

$2,599.00

Product Details

Specifications

Help & Documents

The Drolet Eco-55 Pellet Stove is the perfect combination of simplicity and functionality. The intuitive electronics and easy to use thermostatic control makes running as simple as turning on a switch. No other Pellet stove is as easy to use and maintain as the Drolet Eco-55. The components are accessible without requiring tools to reach them. Add the hopper extension to allow you to lead up to 140 pounds of pellets for a maximum burn time of 120 hours.

    Specifications & Manuals

    Eco-55 Pellet Stove Installation Manual

    Eco-55 Pellet Stove Operation Manual

    Eco-55 Pellet Stove Dimensions

    Eco-55 Pellet Stove Specifications

    Fuel

    Pellet

    BTU Output

    6,648 – 28,540 BTU/h

    Hopper Capacity

    60 lbs

    Area Heated

    500 - 2,000 sq. ft.

    Burn Rate

    1.2 - 4.7 lbs per hour

    Maximum Burn Time

    51 hours

    Overall Dimensions

    32 5/8" H x 25 1/8" W x 29 1/2" D

    Weight

    277 lb.

    Voltage and Frequency

    120 VAC - 60 Hz

    Average electrical power consumption (continuous operation)

    1.3A - 2.5A (51W - 140W)

    Blower

    Blower Included

    Combustion Technology

    Top-feed

    High-efficiency certified appliance

    Yes, EPA 2020 approved

    Electronic Igniter

    Yes

    Glass Surface Dimensions

    15 3/4" W x 8 1/8" H

    Optimum Efficiency

    78.4%

    Mobile Home Approved

    Yes

    Warranty

    Limited Lifetime

    Additional Information

    THIS HEATER HAD BEEN TESTED TO ASTM E 1509, UL 1482, ULC S627, CSA B415.1-10

    Minimum Clearances to Combustibles

    Drolet Eco-55 Pellet Stove Minimum Clearances to Combustibles*

    Clearance - back wall

    3" US / 3" CA

    Clearance - placed in a corner

    3" US / 3" CA

    Clearance - side wall

    6" US / 6" CA

    Clearance – top (measured from the platform on which the appliance is installed)**

    48" US / 48" CA

    * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

    ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

    Features:

    • Hopper capacity of 60 lb.
    • Maximum burn time of 51 hours per hopper.
    • EPA 2020 certified at only 0.96 g/h, produces up to 39,260 BTU/h.
    • Recommended heating area of 500 - 2000 sq. ft.
    • Mobile home and alcove approved.
    • Includes a limited lifetime warranty
    • Includes a blower for optimal heating.

    Optional Accessory Details

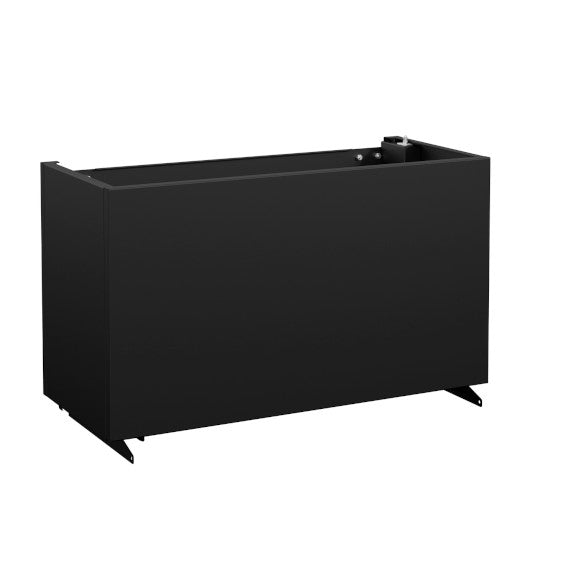

    55 Series Hopper Extension

    The Hopper Extension allows you to reload your pellet stove less frequently. The extension will allow the pellet stove to hold 20 more pounds of pellets, making the total hopper capacity up to 80 pounds. This will allow the stove to run for up to an additional 17 hours. The Hopper Extension measures 24.625" wide, 14" tall, and 11.625" deep. The Hopper Extension will not affect any of the stoves clearance to combustible material. Hopper Extension Manual

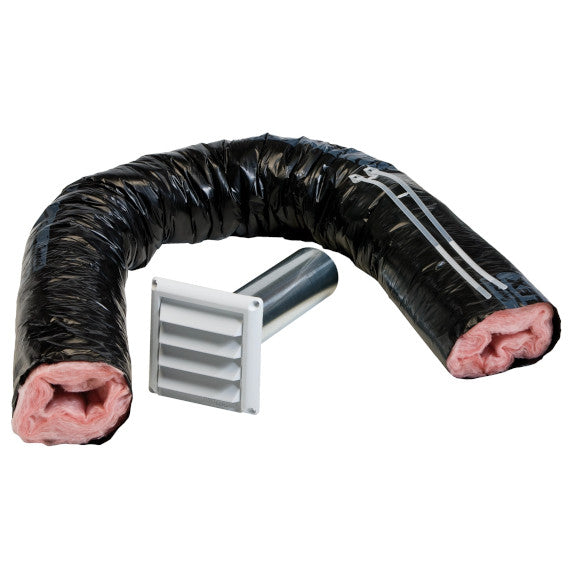

    3" x 10' Insulated Flex Pipe for Fresh Air Intake Kit

    This Fresh Air Intake Kit includes a 3" x 10' aluminum insulated flexible pipe and the outside air hood. This kit is perfect for short runs when going right through the wall behind the stove. Make sure the outside air hood is in a location where it will not be obstructed by snow or ice. Use appropriate size hose clamps or foil tape to ensure the connection ends are air tight.

    Product Details:

    The Drolet Eco-55 Pellet Stove is the perfect combination of simplicity and functionality. The intuitive electronics and easy to use thermostatic control makes running as simple as turning on a switch. No other Pellet stove is as easy to use and maintain as the Drolet Eco-55. The components are accessible without requiring tools to reach them. Add the hopper extension to allow you to lead up to 140 pounds of pellets for a maximum burn time of 120 hours.

      Specifications & Manuals

      Eco-55 Pellet Stove Installation Manual

      Eco-55 Pellet Stove Operation Manual

      Eco-55 Pellet Stove Dimensions

      Eco-55 Pellet Stove Specifications

      Fuel

      Pellet

      BTU Output

      6,648 – 28,540 BTU/h

      Hopper Capacity

      60 lbs

      Area Heated

      500 - 2,000 sq. ft.

      Burn Rate

      1.2 - 4.7 lbs per hour

      Maximum Burn Time

      51 hours

      Overall Dimensions

      32 5/8" H x 25 1/8" W x 29 1/2" D

      Weight

      277 lb.

      Voltage and Frequency

      120 VAC - 60 Hz

      Average electrical power consumption (continuous operation)

      1.3A - 2.5A (51W - 140W)

      Blower

      Blower Included

      Combustion Technology

      Top-feed

      High-efficiency certified appliance

      Yes, EPA 2020 approved

      Electronic Igniter

      Yes

      Glass Surface Dimensions

      15 3/4" W x 8 1/8" H

      Optimum Efficiency

      78.4%

      Mobile Home Approved

      Yes

      Warranty

      Limited Lifetime

      Additional Information

      THIS HEATER HAD BEEN TESTED TO ASTM E 1509, UL 1482, ULC S627, CSA B415.1-10

      Minimum Clearances to Combustibles

      Drolet Eco-55 Pellet Stove Minimum Clearances to Combustibles*

      Clearance - back wall

      3" US / 3" CA

      Clearance - placed in a corner

      3" US / 3" CA

      Clearance - side wall

      6" US / 6" CA

      Clearance – top (measured from the platform on which the appliance is installed)**

      48" US / 48" CA

      * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

      ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

      Specifications:

      Features:

      • Hopper capacity of 60 lb.
      • Maximum burn time of 51 hours per hopper.
      • EPA 2020 certified at only 0.96 g/h, produces up to 39,260 BTU/h.
      • Recommended heating area of 500 - 2000 sq. ft.
      • Mobile home and alcove approved.
      • Includes a limited lifetime warranty
      • Includes a blower for optimal heating.

      Help & Documents:

      Optional Accessory Details

      55 Series Hopper Extension

      The Hopper Extension allows you to reload your pellet stove less frequently. The extension will allow the pellet stove to hold 20 more pounds of pellets, making the total hopper capacity up to 80 pounds. This will allow the stove to run for up to an additional 17 hours. The Hopper Extension measures 24.625" wide, 14" tall, and 11.625" deep. The Hopper Extension will not affect any of the stoves clearance to combustible material. Hopper Extension Manual

      3" x 10' Insulated Flex Pipe for Fresh Air Intake Kit

      This Fresh Air Intake Kit includes a 3" x 10' aluminum insulated flexible pipe and the outside air hood. This kit is perfect for short runs when going right through the wall behind the stove. Make sure the outside air hood is in a location where it will not be obstructed by snow or ice. Use appropriate size hose clamps or foil tape to ensure the connection ends are air tight.
