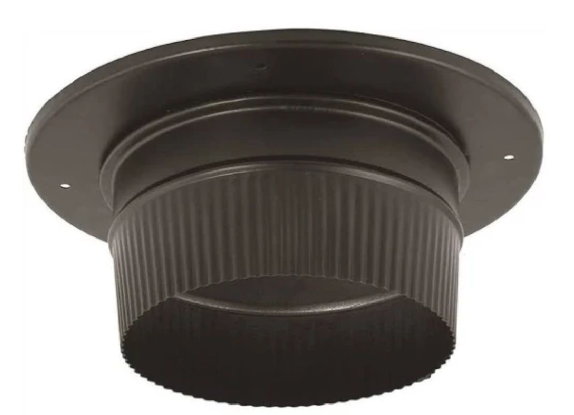

The DuraTech Single Wall Snap Lock Adapter with Trim is used to make the connection from a DuraTech Ceiling Support Box to single wall black stove pipe. The Snap Lock Adapter simply snaps to the bottom of the ceiling support box and provides a positive drip free connection from the DuraTech chimney to a single wall pipe.
Note: The DuraTech Single Wall Snap Lock Adapter will only connect to the DuraTech ceiling support box. For through the wall installations use the DuraTech Finish Collar.
Measurement Chart:
Size | 5" | 6" | 7" | 8" |
A | 5.25" | 6.25" | 7.25" | 8.25" |
B | 4.875" | 5.875" | 6.875" | 7.875" |
C | 9" | 9" | 11" | 11" |
Product Details:
The DuraTech Single Wall Snap Lock Adapter with Trim is used to make the connection from a DuraTech Ceiling Support Box to single wall black stove pipe. The Snap Lock Adapter simply snaps to the bottom of the ceiling support box and provides a positive drip free connection from the DuraTech chimney to a single wall pipe.
Note: The DuraTech Single Wall Snap Lock Adapter will only connect to the DuraTech ceiling support box. For through the wall installations use the DuraTech Finish Collar.
Measurement Chart:
Size | 5" | 6" | 7" | 8" |
A | 5.25" | 6.25" | 7.25" | 8.25" |
B | 4.875" | 5.875" | 6.875" | 7.875" |
C | 9" | 9" | 11" | 11" |
