DuraVent PelletVent Pro Wall Strap & Tee Support
Product Images
DuraVent PelletVent Pro Wall Strap & Tee Support
Product Details
Help & Documents

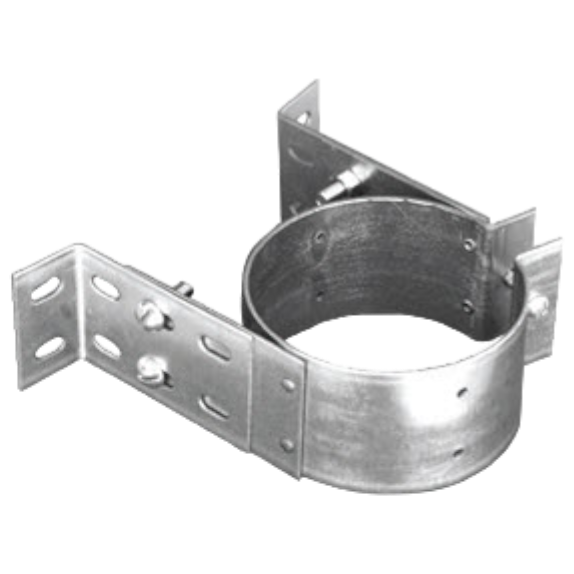

The DuraVent PelletVent Pro Wall Strap/Tee Support is used to support the weight of the PelletVent Pro Pipe for through-the-wall venting when a tee is used to run the pipe up the side of the home & above the roof. The Wall Strap/Tee Support provides the necessary 1" clearance from combustible materials. The Wall Strap/Tee Support can also be used to stabilize the pipe above a ceiling support box for long attic or chimney chase runs.
Note:
Must be installed directly above a tee connection for a vertical run.
Must be installed every 8' of vertical pipe that is running along an exterior wall or inside an attic or chimney chase above the initial support.
Measurement Chart:
| Size | 3" | 4" |
| A | 3 5/8" | 4 5/8" |
Product Details:
The DuraVent PelletVent Pro Wall Strap/Tee Support is used to support the weight of the PelletVent Pro Pipe for through-the-wall venting when a tee is used to run the pipe up the side of the home & above the roof. The Wall Strap/Tee Support provides the necessary 1" clearance from combustible materials. The Wall Strap/Tee Support can also be used to stabilize the pipe above a ceiling support box for long attic or chimney chase runs.
Note:
Must be installed directly above a tee connection for a vertical run.
Must be installed every 8' of vertical pipe that is running along an exterior wall or inside an attic or chimney chase above the initial support.
Measurement Chart:
| Size | 3" | 4" |
| A | 3 5/8" | 4 5/8" |
