Osburn Inspire 2000 Wood Fireplace Insert
Product Images

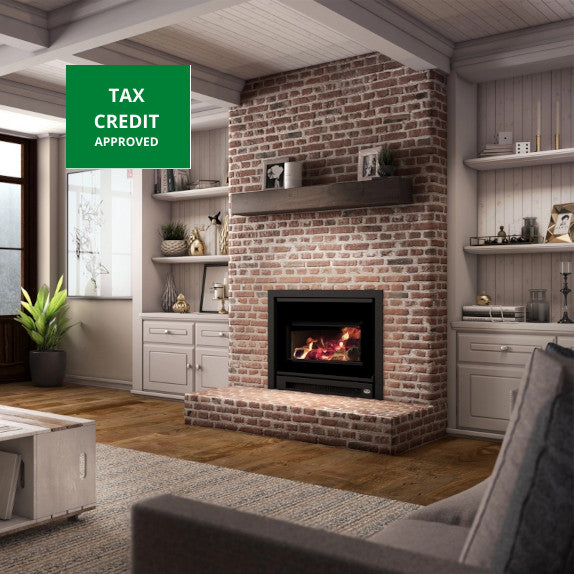

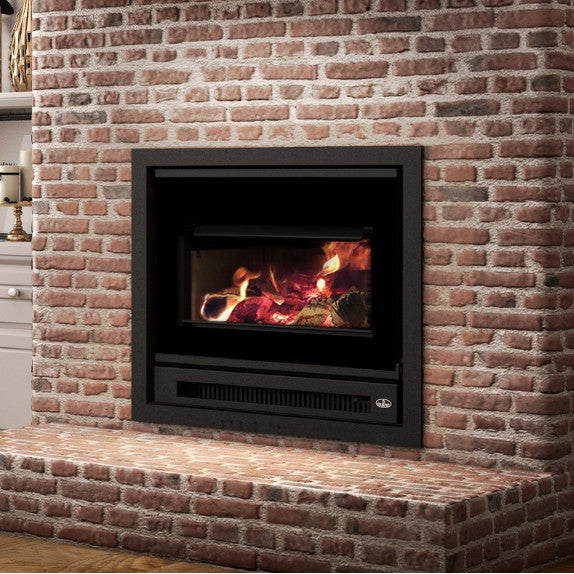

Osburn Inspire 2000 Wood Fireplace Insert
Osburn Inspire 2000 Wood Fireplace Insert
Osburn Inspire 2000 Wood Fireplace Insert
Osburn Inspire 2000 Wood Fireplace Insert
Narrow Faceplate (U Shaped)
Narrow Faceplate
32 in. x 50 in. Cuttable Faceplate (16 gauge)
Moulded Refractory Panel Kit for Minimalist Base and Insert

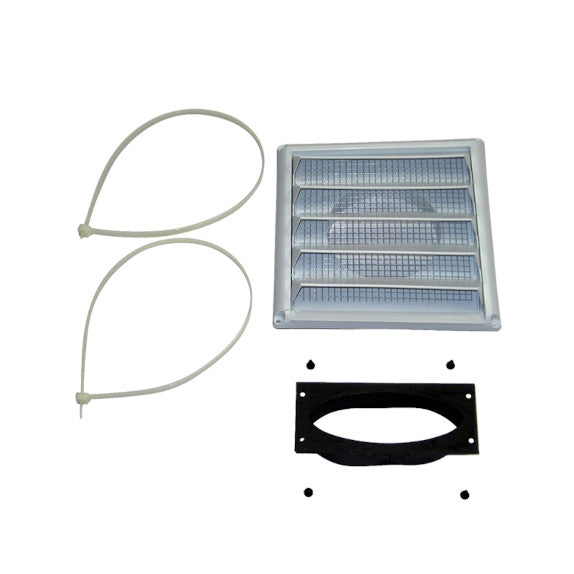

5 in. Fresh Air Intake Kit Oval

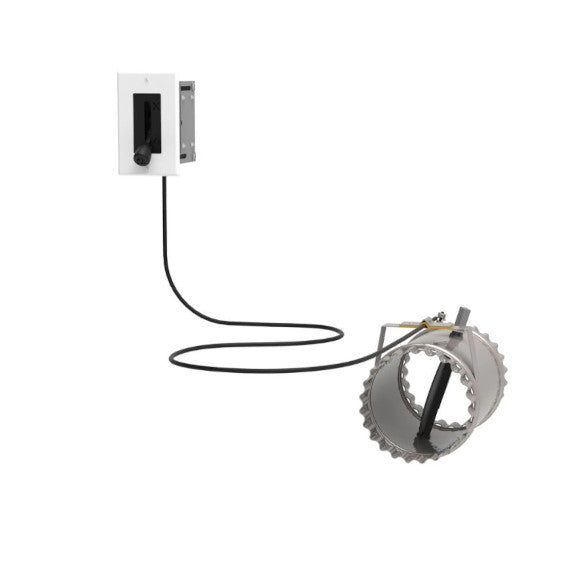

5 in. Fresh Air Intake Register with Airtight Damper
Product Details
Specifications
Help & Documents
Options
If you are looking for a sleek, modern design that is un-intrusive to your living space, the Osburn Inspire 2000 is the wood fireplace insert for you. This unit is highly efficient and does not lack in aesthetics. The Osburn Inspire 2000 insert offers modernism, comfort, and functionality. Order yours today to start enjoying this insert's 77% optimal efficiency, 176 CFM heat circulating blower, and 8 hour maximum burn time.
The recommended heating area is 500 - 2,100 square feet and requires a minimum fireplace opening of 24 5/8" h x 29" w x 20 3/4" d as well as a minimum chimney height of 12 feet. The firebox will accept the maximum log length of 20" which you can watch burn through the large glass measuring 24 13/16" x 18 1/2".
Features:
- High-efficiency appliance 2020 EPA approved
- Ultra-quiet blower with variable speed control included (CFM) : 176
- Recommended eating area : 500 - 2,100 square feet
- Color: Black
- Non-catalytic combustion technology
- Optimum efficiency : 77%
- Emissions (grams/hour) : 1.54 g/h
- Baffle : High heat-resistant C-cast
- Maximum burn time : 8 hours
- Firebox lined with refractory bricks for better heat distribution
- Stainless-steel secondary-air system improving gas combustion
- Recommended chimney diameter : 6"
- Approved Chimney Liner: Rock-Flex Stainless Flexible Liner Kit
Measuring for Your
Stove Insert Measurement Guides
Installing Your New Wood Fireplace Insert
Osburn Inspire 2000 Insert Specifications |
|
| Minimum fireplace opening (Width) | 29" |
| Minimum fireplace opening (Height) | 24 5/8" |
| Minimum fireplace opening (Depth) | 20 3/4" |
| Firebox dimensions (Depth) | 16 3/4" |
| Firebox dimensions (Width) | 21" |
| Firebox dimensions (Height) | 11 3/4" |
| Maximum log length | 20" |
| Door opening dimensions (Width) | 20" |
| Door opening dimensions (Height) | 8 1/4" |
| Type of Door | Single, glass with cast iron frame |
| Glass Surface | 24 13/16" x 18 1/2" |
| Weight | 420 lb (191 kg) |
| Firebox volume (cu. ft.) | 2.4 |
| Minimum floor protection in front of unit | 18" CAN/16"USA |
| Glass Type | Ceramic glass |
| Depth - Overall | 20 3/4" |
| Height - Overall | 24" |
| Width - Overall | 28 1/2" |
| Center line of flue outlet to the back | 5 5/8" |
| Center line of flue outlet to the side | 13 1/2" |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (emissions) | EPA |
| Canadian Standard (safety) | ULC-S628 |
| USA standard (safety) | UL 1482/UL 737 |
| Maximum output - EPA test wood | 28,600 BTU/h |
| Maximum output - seasoned cord wood | 75,000 BTU/h |
| Type of Fuel | Wood |
| Type of Chimney (°F) | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 12' |
| Log positioning | Over width |
| Recommended Heating Area (sq. ft.) | 500-2,100 |
| Steel thickness (top) | 3/8" |
| Optimum efficiency | 77% |
| Emissions (grams/hour) | 1.54 g/h |
| Baffle | High heat-resistant C-cast |
| Recommended chimney diameter | 6" |
| Warranty | Limited lifetime |
Minimum Clearances to Combustibles
| Osburn 1700 Insert Minimum Clearances to Combustibles* | |
| Clearance - top shelf to unit | 27" |
| Clearance - combustible side mantle to unit | 9" |
| Clearance - combustible top mantle to unit | 27" |
| Clearance - combustible side wall to unit | 16" |
| Clearance - minimum floor protection in front of the fireplace | 16" US / 18" CA |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | |
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | |
Product Details:
If you are looking for a sleek, modern design that is un-intrusive to your living space, the Osburn Inspire 2000 is the wood fireplace insert for you. This unit is highly efficient and does not lack in aesthetics. The Osburn Inspire 2000 insert offers modernism, comfort, and functionality. Order yours today to start enjoying this insert's 77% optimal efficiency, 176 CFM heat circulating blower, and 8 hour maximum burn time.
The recommended heating area is 500 - 2,100 square feet and requires a minimum fireplace opening of 24 5/8" h x 29" w x 20 3/4" d as well as a minimum chimney height of 12 feet. The firebox will accept the maximum log length of 20" which you can watch burn through the large glass measuring 24 13/16" x 18 1/2".
Features:
- High-efficiency appliance 2020 EPA approved
- Ultra-quiet blower with variable speed control included (CFM) : 176
- Recommended eating area : 500 - 2,100 square feet
- Color: Black
- Non-catalytic combustion technology
- Optimum efficiency : 77%
- Emissions (grams/hour) : 1.54 g/h
- Baffle : High heat-resistant C-cast
- Maximum burn time : 8 hours
- Firebox lined with refractory bricks for better heat distribution
- Stainless-steel secondary-air system improving gas combustion
- Recommended chimney diameter : 6"
- Approved Chimney Liner: Rock-Flex Stainless Flexible Liner Kit
Measuring for Your
Stove Insert Measurement Guides
Installing Your New Wood Fireplace Insert
Specifications:
Osburn Inspire 2000 Insert Specifications |
|
| Minimum fireplace opening (Width) | 29" |
| Minimum fireplace opening (Height) | 24 5/8" |
| Minimum fireplace opening (Depth) | 20 3/4" |
| Firebox dimensions (Depth) | 16 3/4" |
| Firebox dimensions (Width) | 21" |
| Firebox dimensions (Height) | 11 3/4" |
| Maximum log length | 20" |
| Door opening dimensions (Width) | 20" |
| Door opening dimensions (Height) | 8 1/4" |
| Type of Door | Single, glass with cast iron frame |
| Glass Surface | 24 13/16" x 18 1/2" |
| Weight | 420 lb (191 kg) |
| Firebox volume (cu. ft.) | 2.4 |
| Minimum floor protection in front of unit | 18" CAN/16"USA |
| Glass Type | Ceramic glass |
| Depth - Overall | 20 3/4" |
| Height - Overall | 24" |
| Width - Overall | 28 1/2" |
| Center line of flue outlet to the back | 5 5/8" |
| Center line of flue outlet to the side | 13 1/2" |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (emissions) | EPA |
| Canadian Standard (safety) | ULC-S628 |
| USA standard (safety) | UL 1482/UL 737 |
| Maximum output - EPA test wood | 28,600 BTU/h |
| Maximum output - seasoned cord wood | 75,000 BTU/h |
| Type of Fuel | Wood |
| Type of Chimney (°F) | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 12' |
| Log positioning | Over width |
| Recommended Heating Area (sq. ft.) | 500-2,100 |
| Steel thickness (top) | 3/8" |
| Optimum efficiency | 77% |
| Emissions (grams/hour) | 1.54 g/h |
| Baffle | High heat-resistant C-cast |
| Recommended chimney diameter | 6" |
| Warranty | Limited lifetime |
Minimum Clearances to Combustibles
| Osburn 1700 Insert Minimum Clearances to Combustibles* | |
| Clearance - top shelf to unit | 27" |
| Clearance - combustible side mantle to unit | 9" |
| Clearance - combustible top mantle to unit | 27" |
| Clearance - combustible side wall to unit | 16" |
| Clearance - minimum floor protection in front of the fireplace | 16" US / 18" CA |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | |
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | |
