Osburn Stratford II Wood Fireplace
Product Images
Osburn Stratford II Wood Fireplace
Osburn Stratford II Wood Fireplace
Osburn Stratford II Wood Fireplace
Osburn Stratford II Wood Fireplace
Osburn Stratford II Wood Fireplace
Product Details:
The Stratford II Zero Clearance Wood Fireplace is a decorative and efficient wood fireplace that meets 2020 EPA emissions standards, it's what you've been hoping to find! The Osburn Stratford II wood fireplace has even more to offer including a 2.5 cubic foot firebox that's easy to access through double-cast iron doors. It's distinctive style and exceptional heating capacity is sure to impress you. A forced air system for heating adjacent rooms is among the several options available to complete your wood fireplace.
Features:
- High-efficiency 2020 EPA certified appliance
- Recommended heating area : 750 - 2,200 sq. feet
- Premium quality convection blower included 176 CFM
- Glass air-wash system
- 74% optimum efficiency
- 1.14 g/h Average particulate emissions rate
- High heat-resistant C-cast baffle
- Stainless-steel secondary-air system improving gas combustion
- 9 hour Maximum burn time
- Cast iron andirons
- Non-catalytic combustion technology
- Moulded refractory bricks
- Flue outlet diameter : 6''
- Approved Chimney Type: Rock-Vent Class A chimney system & more
Specifications & Manual
Osburn Stratford II Fireplace Product Manual
Osburn Stratford II Dimensions & Quick Install Overview
Osburn Stratford II Faceplate Install Overview
| Osburn Stratford II Specifications | |
| Depth - Overall | 29 3/4" |
| Height - Overall | 40 5/8" |
| Width - Overall | 36 3/4" |
| Firebox dimensions (Depth) | 12 7/8" |
| Firebox dimensions (Width) | 20 3/8" |
| Firebox dimensions (Height) | 12 1/8" |
| Maximum log length | 20" |
| Door opening dimensions (Width) | 25 3/8" |
| Door opening dimensions (Height) | 10 1/2" |
| Type of Door | Double, glass with cast iron frame |
| Glass Surface | 22 1/4" w X 12 1/2" h |
| Maximum output - EPA test wood | 48,200 BTU/h |
| Maximum input - seasoned cord wood | 80,000 BTU/h |
| Weight | 468 lb (212 kg) |
| Firebox volume (cu. ft.) | 2.5 |
| Glass Type | Ceramic glass |
| Center line of flue outlet to the back | 9 1/8" |
| Center line of flue outlet to the side | 18 3/8" |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S610 |
| USA standard (safety) | UL 127 |
| Mobile Home Installation Approval | No |
| Type of Fuel | Wood |
| Type of Chimney | UL 103 HT (2100°F) / CAN/ULC S629 |
| Minimum chimney height (feet) | 15 |
| Log positioning | Over width |
| Recommended Heating Area (sq. ft.) | 750-2,200 |
| Optimum efficiency | 74 % |
| Emissions (grams/hour) | 1.14 g/h |
| Baffle | High heat-resistant C-cast |
| Recommended chimney diameter | 6" |
| Warranty | Limited lifetime |
| Tested or/and listed as per applicable standards by | An accredited laboratory |
Minimum Clearances to Combustibles
| Osburn Stratford II Minimum Clearances to Combustibles* | |
| Clearance - top (measured from the platform on which the appliance is installed)** | 80" |
| Clearance - combustible side mantle to unit | 8" |
| Clearance - side wall | 13" |
| Clearance - minimum floor protection in front of the fireplace | 16" |
| Clearance - top shelf to unit | 58" |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | |
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | |
Door Overlay & Faceplate Option Details

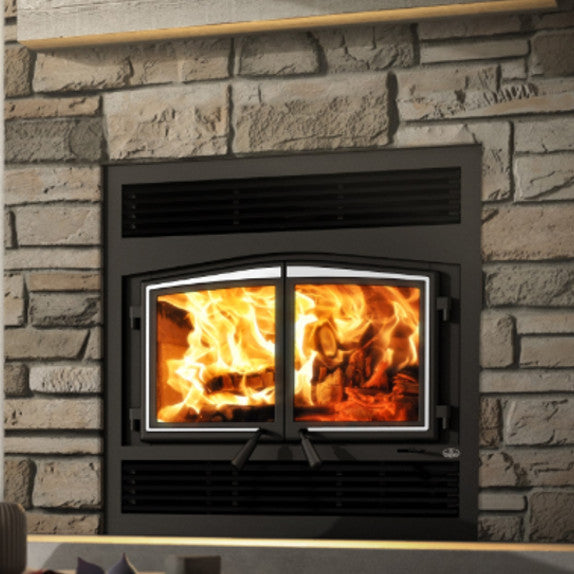

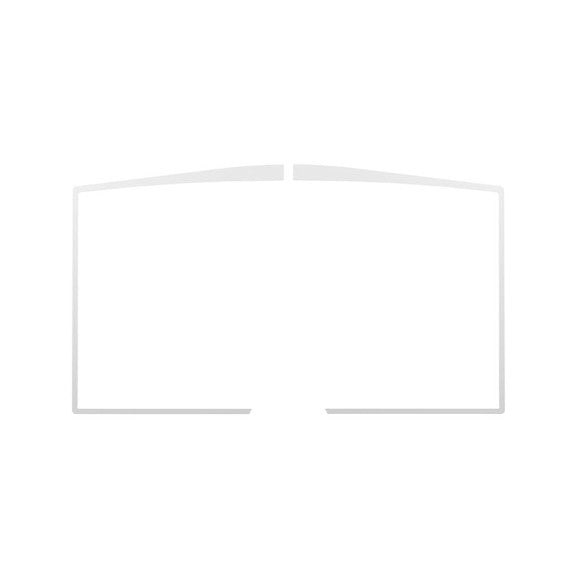

Door Overlay
The Door Overlay is required to complete the installation of the Osburn Stratford. The Door Overlay is available in either black or brushed nickel finish. The options for the Door Overlay allow you to tailor the look of the fireplace to your liking. The Black Door Overlay give the fireplace more of a traditional appearance, while the Brushed Nickel Door Overlay give the fireplace more of a sleek and modern look. The Door Overlay easily installs to the stove with the included bolts.

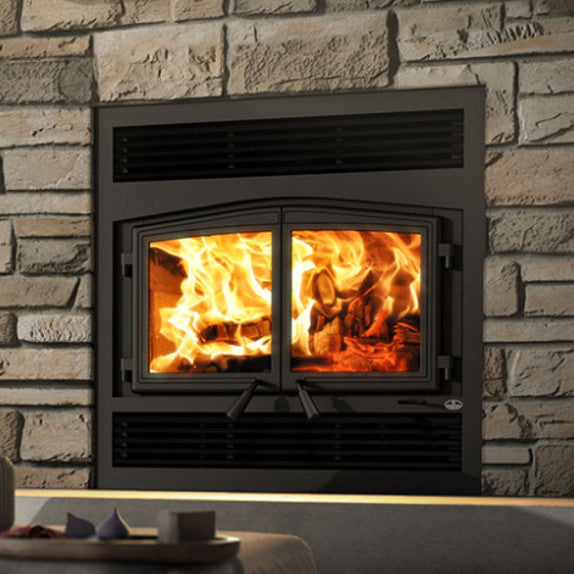

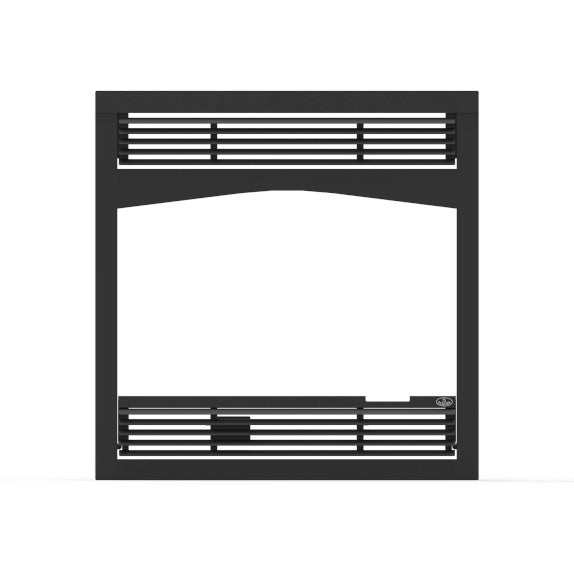

Traditional Style Faceplate
The Traditional Style Faceplate offers a traditional appearance and utilizes a standard louvered grate to conceal the blower and the air circulating space. The louvers are easily removed in the event the blower needs servicing. The Faceplate measures 35.25" tall and 34.75" wide. Non-combustible facing material can come in contact with the Faceplate.

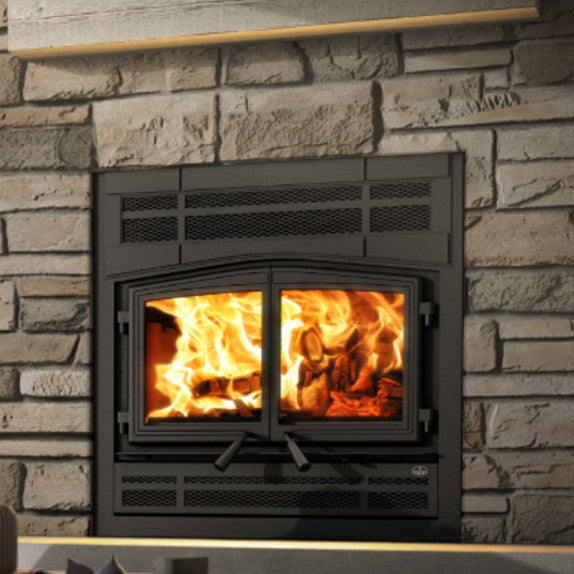

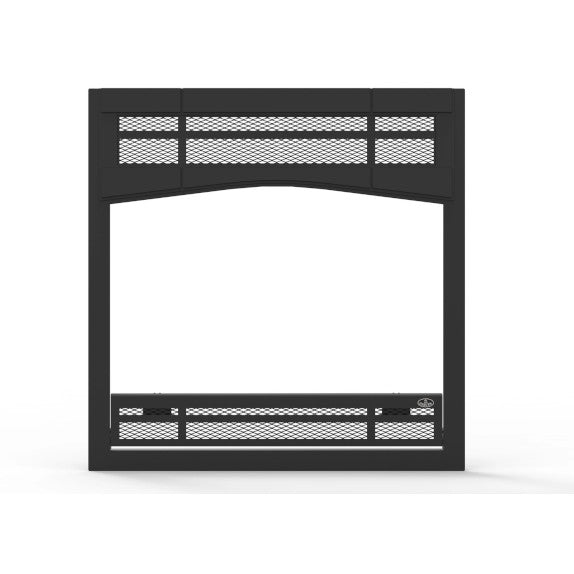

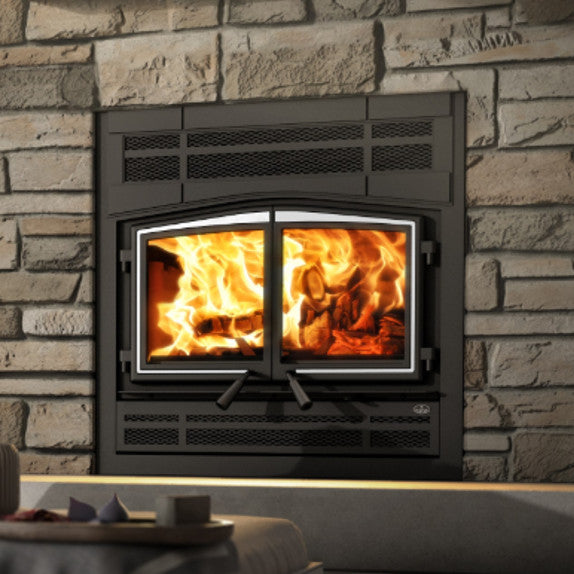

Prairie Style Faceplate
The unique design of the Prairie Style Faceplate will give the fireplace a modern, architectural appearance. The grated style mesh conceals the blower and air circulating space. The Prairie Style Faceplate is sure to enhance the aesthetics of any room. The Faceplate measures 35.25" tall and 34.75" wide. Non-combustible facing material can come in contact with the Faceplate.
Optional Accessory Details

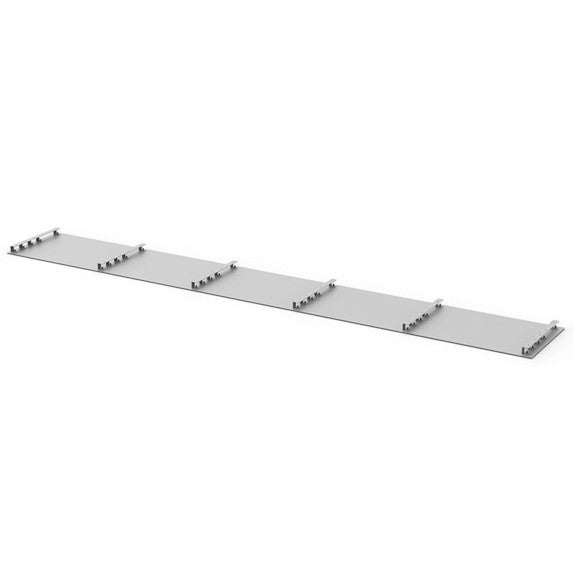

Heat Shield for Surround Shelf
The Heat Shield for a surround shelf will allow you to install a combustible mantel closer to the fireplace. The Heat Shield will prevent the mantel from overheating. You can lower a mantel up to 8" lower than the installation instructions state for the mantel height above the fireplace. The Heat Shield can accommodate a mantel with a depth of 6" to 12" and up to 84" long. Heat Shield for Surround Shelf Installation Guide
Fire Screen Door
Want to enjoy the Osburn Stratford like a traditional fireplace? Then the Fire Screen Door is perfect for you. Sit back, hear the crackling of the wood, feel the direct heat of the fire and enjoy the beauty of a fire inside your home. The Fire Screen fits perfectly inside the door opening without having to remove the doors every time. You should never leave the fireplace unattended when the Fire Screen is installed. Fire Screen Door Installation Guide

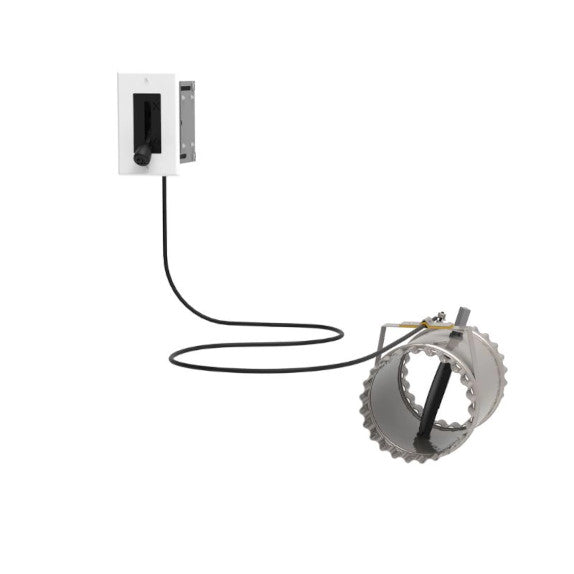

4" Fresh Air Intake Register with Airtight Damper
The 4" Fresh Air Intake Register with Airtight Damper opens and closes the fresh air supply to a wood fireplace. It's simple mechanism makes it possible to close the damper tightly when the wood stove insert is not in use. This will ensure the wood fireplace is not being cooled while not in use. Fresh Air Intake Installation Guide

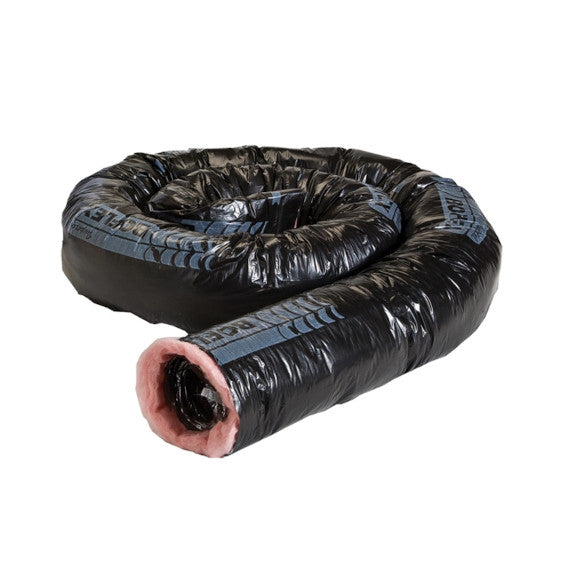

6" x 25' Insulated Flex Pipe for Forced Air Distribution
If you choose to install the Forced Air Distribution Kit to the fireplace, the 6" x 25' insulated flex pipe is a great choice to route your forced air into your existing heating ducts. The insulation will help keep the air warm for better heating capabilities.
4" x 25' or 4" x 10' Insulated Flex Pipe for Fresh Air Kit
The 4" Insulated Fresh Air Intake Pipe is perfect for the longer runs necessary to draw air to the fireplace. The flexible pipe can maneuver and bend around framing of the home to pull the air from virtually anywhere outside.

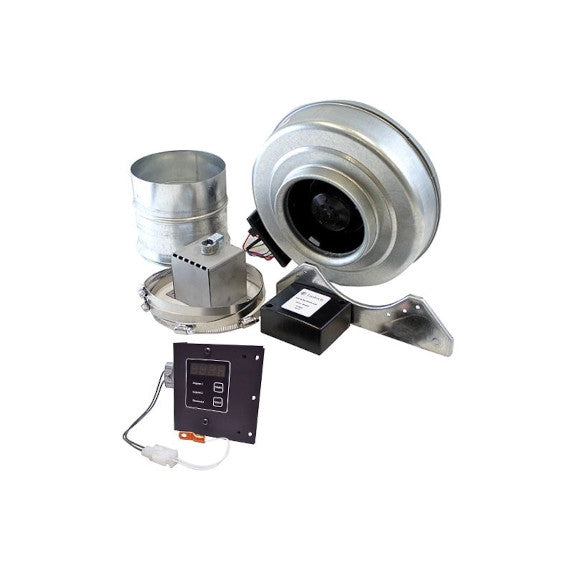

Forced Air Distribution Kit 300 CFM
Are you looking to gain a bit more heating capacity out of your Osburn Stratford fireplace? The forced air distribution kit offers a powerful 300 CFM blower that forces hot air from the fireplace to other rooms in the home. Connect the distribution kit to the insulated flex duct and heat more of your home. The Forced Air Kit can heat adjacent rooms either on the same level, above the fireplace and even below the fireplace up to 50' away. The blower must be a minimum of 3' from the fireplace and there must be a minimum of 12' of insulated pipe between the blower and the air outlet register. A thermostat will be required to regulate the heat in the adjacent room to prevent overheating the other room. Forced Air Distribution Kit Installation Guide

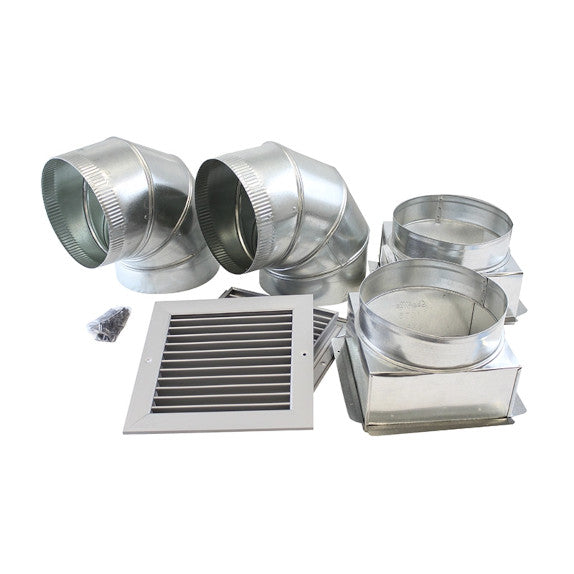

Hot Air Gravity Distribution Kit (Traditional Style)
The Traditional Hot Air Gravity Distribution Kit allows you to heat other parts of the home directly above the Osburn Stratford fireplace. The kit includes 2 grills, 2 - 90 degree elbows and 6 steel brackets with hardware and fasteners. The minimum height of the hot air duct is 68" and the max length of the hot air ducts must not exceed 10'. The hot air ducts must maintain a 2" clearance to combustible material when passing through a wall or floor. The higher you install the grills above the fireplace the more draw and heat will be generated. 8" duct (not included) is required to complete the installation.
Hot Air Gravity Distribution Kit (Modern with Adj. Pipes)
The Modern Hot Air Gravity Distribution Kit allows you to heat other parts of the home directly above the Osburn Stratford fireplace. The modern design is sleeker and better looking option for the air distribution. The kit includes a decorative plate, adjustable frame, heat distribution box, telescoping section and anchor plates. The minimum height of the hot air duct is 68" and the max length of the hot air ducts must not exceed 10'. The hot air ducts must maintain a 2" clearance to combustible material when passing through a wall or floor. The higher you install the grills above the fireplace the more draw and heat will be generated. 8" duct (not included) is required to complete the installation.

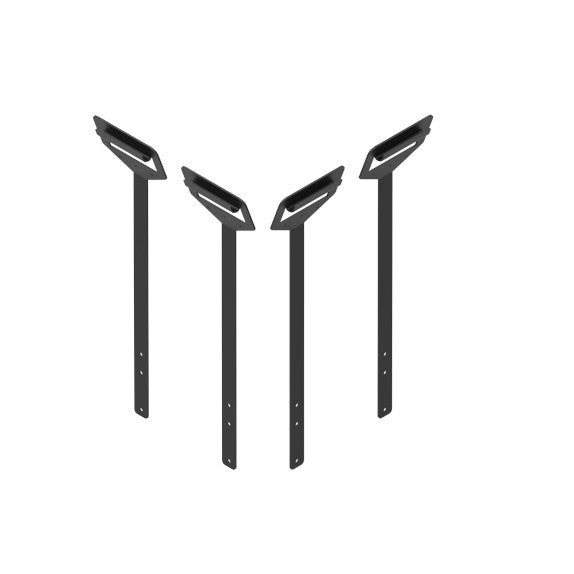

Fireplace Carrying Handle Kit
The Fireplace Carrying Handle Kit makes transporting the fireplace to the install location much easier. The Handle Kit enables you to attach handles to the sides of the fireplace and gives you a better grip when lifting the fireplace. A 7/16" ratchet is all that is required to attach the handles to the fireplace for carrying. Fireplace Carrying Handle Kit
