Osburn 2000 Wood Stove with Blower
Product Images
Product Details
Specifications
Help & Documents
Options

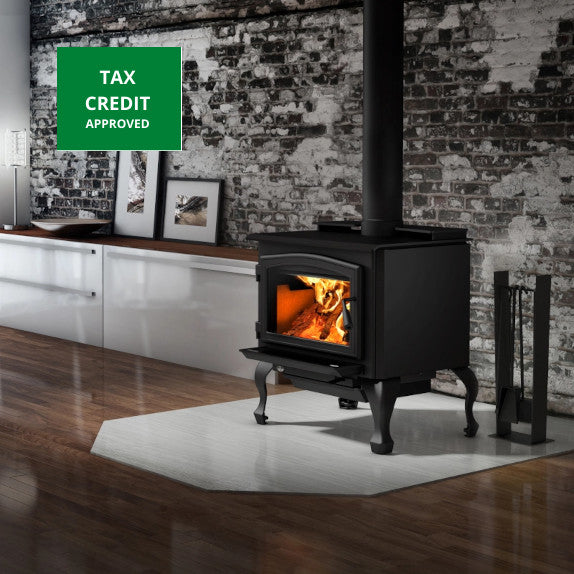

The Osburn 2000 freestanding stove is one of the most popular units in the Osburn family of wood stoves. Its cast-iron door, which features the distinctive lines you've come to expect from Osburn, gives it a look combining the contemporary and the traditional. With a 2.4 cubic foot firebox, the Osburn 2000 will delight the most serious of wood stove enthusiasts who want both style and heating power. Also equipped with a 130 CFM blower, the Osburn 2000 is the most sought-after model of the season!
Features
- High-efficiency appliance 2020 EPA approved
- Ultra-quiet crossflow blower with variable speed control included - 130 CFM
- Recommended heating area : 500 - 2,100 square feet
- Maximum log length : 20"
- Overall firebox volume : 2.4
- Maximum burn time : 8 hours
- Easy-to-access ash drawer
- Optimum efficiency : 77%
- Emissions (grams/hour) : 1.54 g/h
- Baffle : High heat-resistant C-cast
- Glass air-wash system
- Firebox lined with refractory bricks for better heat distribution
- Stainless-steel secondary-air system improving gas combustion
- Non-catalytic combustion technology
- Recommended chimney diameter : 6"
Measuring for Your Osburn 2000
Stove Insert Measurement Guides
Installing Your New Wood Stove
Video of Installing a Wood Burning Stove
Osburn 2000 Wood Stove Specifications |
|
Height - Overall | 33 1/8" |
Width - Overall | 27" |
Depth - Overall | 29" |
Firebox dimensions (Height) | 11 7/8" |
Firebox dimensions (Width) | 21" |
Firebox dimensions (Depth) | 16 3/4" |
Firebox volume (cu. ft.) | 2.4 |
Type of Fuel | Wood |
Maximum log length | 20" |
Log positioning | Over width |
Recommended Heating Area (sq. ft.) | 500-2,100 |
Door opening dimensions (Height) | 9" |
Door opening dimensions (Width) | 17 1/2" |
Type of Door | Single, glass with cast iron frame |
Glass Surface | 17 1/8" x 10 1/4" |
Glass Type | Ceramic glass |
Weight | 390 lb (177 kg) |
Minimum chimney height (feet) | 12 |
Recommended chimney diameter | 6" |
Flue Outlet Diameter | 6" |
Maximum output - seasoned cord wood | 75,000 BTU/h |
Maximum output - EPA test wood | 28,600 BTU/h |
Center line of flue outlet to the back | 6 5/8" |
Center line of flue outlet to the side | 13 1/2" |
Canadian Standard (emissions) | CSA B415.1-10 |
USA standard (emissions) | EPA |
Canadian Standard (safety) | ULC S627 |
USA standard (safety) | UL 1482, UL 737 |

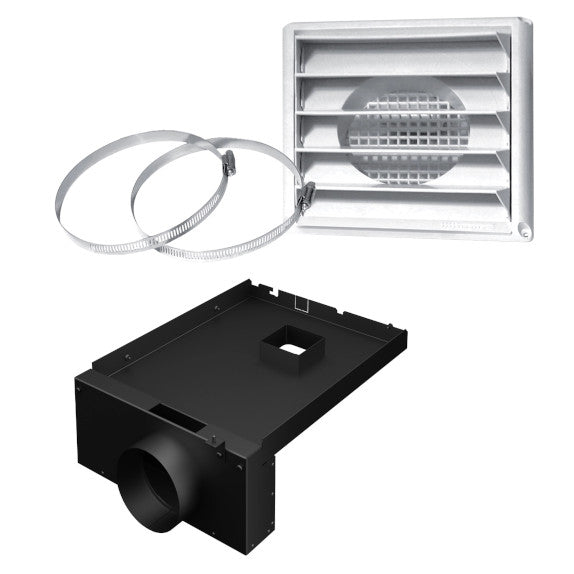

Mobile Home Approved | Yes, with fresh air intake |
Steel thickness (top) | 5/16" |
Optimum efficiency | 77% |
Emissions (grams/hour) | 1.54 g/h |
Baffle | High heat-resistant C-cast |
Warranty | Limited lifetime |
Minimum Clearances to Combustibles
Osburn 2000 Wood Stove Minimum Clearances to Combustibles* | ||
Single Wall Stove Pipe | Double Wall Stove Pipe | |
Clearance - back wall | 11" US / 14 1/2" CA | 6" US / 6" CA |
Clearance - placed in a corner | 10" US / 10" CA | 7" US / 7" CA |
Clearance - side wall | 16" US / 17" CA | 16" US / 17" CA |
Clearance – top (measured from the platform on which the appliance is installed)** | 84" US / 84" CA | 84" US / 84" CA |
Clearance - minimum floor protection in front of the stove | 16" US / 18" CA | 16" US / 18" CA |
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. |
Product Details:
The Osburn 2000 freestanding stove is one of the most popular units in the Osburn family of wood stoves. Its cast-iron door, which features the distinctive lines you've come to expect from Osburn, gives it a look combining the contemporary and the traditional. With a 2.4 cubic foot firebox, the Osburn 2000 will delight the most serious of wood stove enthusiasts who want both style and heating power. Also equipped with a 130 CFM blower, the Osburn 2000 is the most sought-after model of the season!
Features
- High-efficiency appliance 2020 EPA approved
- Ultra-quiet crossflow blower with variable speed control included - 130 CFM
- Recommended heating area : 500 - 2,100 square feet
- Maximum log length : 20"
- Overall firebox volume : 2.4
- Maximum burn time : 8 hours
- Easy-to-access ash drawer
- Optimum efficiency : 77%
- Emissions (grams/hour) : 1.54 g/h
- Baffle : High heat-resistant C-cast
- Glass air-wash system
- Firebox lined with refractory bricks for better heat distribution
- Stainless-steel secondary-air system improving gas combustion
- Non-catalytic combustion technology
- Recommended chimney diameter : 6"
Measuring for Your Osburn 2000
Stove Insert Measurement Guides
Installing Your New Wood Stove
Video of Installing a Wood Burning Stove
Specifications:
Osburn 2000 Wood Stove Specifications |
|
Height - Overall | 33 1/8" |
Width - Overall | 27" |
Depth - Overall | 29" |
Firebox dimensions (Height) | 11 7/8" |
Firebox dimensions (Width) | 21" |
Firebox dimensions (Depth) | 16 3/4" |
Firebox volume (cu. ft.) | 2.4 |
Type of Fuel | Wood |
Maximum log length | 20" |
Log positioning | Over width |
Recommended Heating Area (sq. ft.) | 500-2,100 |
Door opening dimensions (Height) | 9" |
Door opening dimensions (Width) | 17 1/2" |
Type of Door | Single, glass with cast iron frame |
Glass Surface | 17 1/8" x 10 1/4" |
Glass Type | Ceramic glass |
Weight | 390 lb (177 kg) |
Minimum chimney height (feet) | 12 |
Recommended chimney diameter | 6" |
Flue Outlet Diameter | 6" |
Maximum output - seasoned cord wood | 75,000 BTU/h |
Maximum output - EPA test wood | 28,600 BTU/h |
Center line of flue outlet to the back | 6 5/8" |
Center line of flue outlet to the side | 13 1/2" |
Canadian Standard (emissions) | CSA B415.1-10 |
USA standard (emissions) | EPA |
Canadian Standard (safety) | ULC S627 |
USA standard (safety) | UL 1482, UL 737 |
Mobile Home Approved | Yes, with fresh air intake |
Steel thickness (top) | 5/16" |
Optimum efficiency | 77% |
Emissions (grams/hour) | 1.54 g/h |
Baffle | High heat-resistant C-cast |
Warranty | Limited lifetime |
Minimum Clearances to Combustibles
Osburn 2000 Wood Stove Minimum Clearances to Combustibles* | ||
Single Wall Stove Pipe | Double Wall Stove Pipe | |
Clearance - back wall | 11" US / 14 1/2" CA | 6" US / 6" CA |
Clearance - placed in a corner | 10" US / 10" CA | 7" US / 7" CA |
Clearance - side wall | 16" US / 17" CA | 16" US / 17" CA |
Clearance – top (measured from the platform on which the appliance is installed)** | 84" US / 84" CA | 84" US / 84" CA |
Clearance - minimum floor protection in front of the stove | 16" US / 18" CA | 16" US / 18" CA |
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. |
