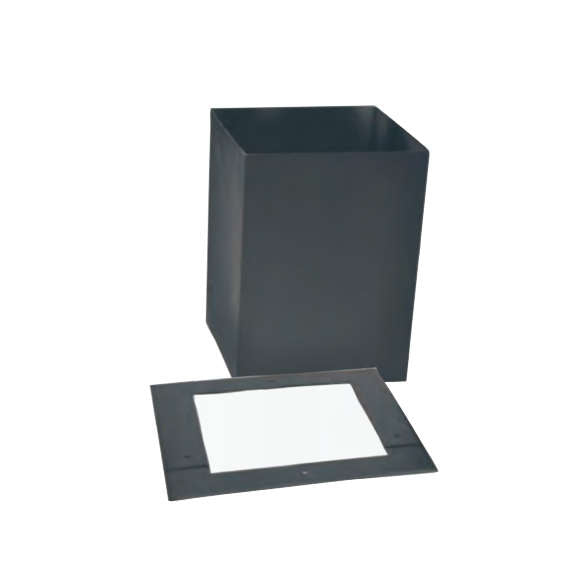

Rock-Vent Pellet Pipe Ceiling Support Box
Product Images
Rock-Vent Pellet Pipe Ceiling Support Box
Product Details
Help & Documents
The Rock-Vent Pellet Pipe Square Ceiling Support Box is used to support our pellet pipe for through-the-ceiling applications. The Support Box is 11" tall and provides the appropriate clearance between the joists. There is a support clamp which will clamp around the pipe supporting the pipe above the box. The Support Box can support up to 40 feet of pipe. A trim collar is included to provide a nice finished look in the living space.
Measurement Chart:
Pellet Vent Square Ceiling Support Box
| 3” | 4” | |
| A | 3.8” | 4.8” |
| B | 5.8” | 6.8” |
| C | 9.9” | 9.9” |
| YY | 11” | 11” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
Product Details:
The Rock-Vent Pellet Pipe Square Ceiling Support Box is used to support our pellet pipe for through-the-ceiling applications. The Support Box is 11" tall and provides the appropriate clearance between the joists. There is a support clamp which will clamp around the pipe supporting the pipe above the box. The Support Box can support up to 40 feet of pipe. A trim collar is included to provide a nice finished look in the living space.
Measurement Chart:
Pellet Vent Square Ceiling Support Box
| 3” | 4” | |
| A | 3.8” | 4.8” |
| B | 5.8” | 6.8” |
| C | 9.9” | 9.9” |
| YY | 11” | 11” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
