Rock-Vent Pellet Pipe Standard Flashing
Product Images
Rock-Vent Pellet Pipe Standard Flashing
Product Details
Help & Documents

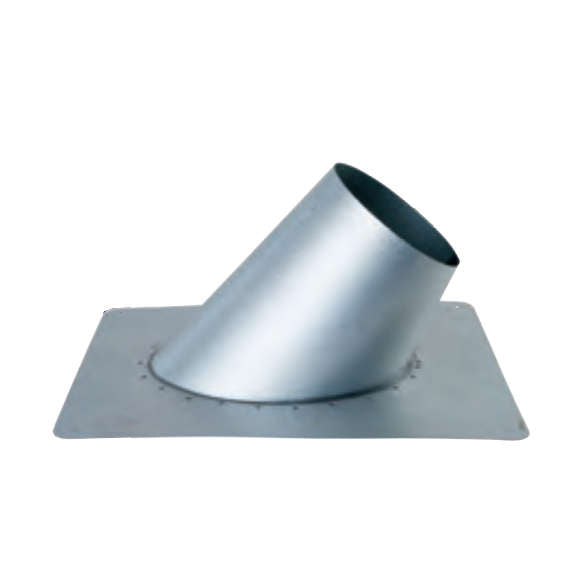

The Rock-Vent Pellet Pipe Roof Flashing is used to seal around the pellet pipe when it passes through a roof. The flashing is constructed from galvalume steel and available in two adjustable roof pitches. We offer the roof flashing to accommodate 0/12 to 6/12 pitch and another for 7/12 to 12/12 roof pitch. The flashing is used for shingle material roofs only. Custom fabricated flashings are available for metal roofs (please contact us). The storm collar, which seals the gap between the pipe and flashing, is sold separately.
Measurement Chart:
Pellet Vent Roof Flashing
| 3” | 4” | |
| A | 4.75” | 5.75” |
| B | 7.75” | 8.75” |
| C | 14.75” | 15.25” |
Pellet Vent Storm Collar
| 3” | 4” | |
| YY | 2.5” | 2.5” |
| A | 3.75” | 4.75” |
| B | 8” | 9” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
Product Details:
The Rock-Vent Pellet Pipe Roof Flashing is used to seal around the pellet pipe when it passes through a roof. The flashing is constructed from galvalume steel and available in two adjustable roof pitches. We offer the roof flashing to accommodate 0/12 to 6/12 pitch and another for 7/12 to 12/12 roof pitch. The flashing is used for shingle material roofs only. Custom fabricated flashings are available for metal roofs (please contact us). The storm collar, which seals the gap between the pipe and flashing, is sold separately.
Measurement Chart:
Pellet Vent Roof Flashing
| 3” | 4” | |
| A | 4.75” | 5.75” |
| B | 7.75” | 8.75” |
| C | 14.75” | 15.25” |
Pellet Vent Storm Collar
| 3” | 4” | |
| YY | 2.5” | 2.5” |
| A | 3.75” | 4.75” |
| B | 8” | 9” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
