Rock-Vent Pellet Pipe Masonry Thimble Adapter
Product Images
Rock-Vent Pellet Pipe Masonry Thimble Adapter
Product Details
Specifications

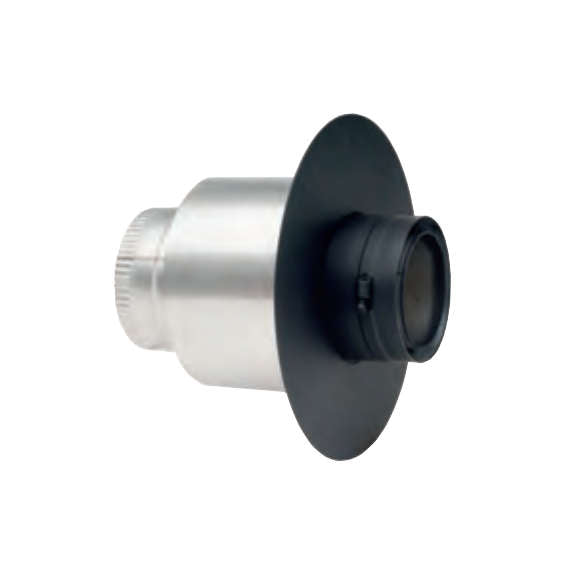

The Rock-Vent Pellet Pipe Masonry Thimble Adapter is used to connect a flexible chimney liner tee snout to the Rock-Vent Pellet Pipe. The Masonry Adapter fits into a masonry thimble and has a black trim plate which provides a nice finished look on the appliance side. The other end connects to the flexible chimney liner tee snout for a direct connection. Available to fit 6", 7", or 8" diameter thimble holes and can connect to either a 3" or 4" flex liner tee snout. The collar at the end of the trim plate will connect directly to the Rock-Vent Pellet Pipe.
Measurement Chart:
Pellet Vent Masonry Adapter
Connects 3” Pellet Vent to 3” Flex Liner
| 6” Masonry | 7” Masonry | 8” Masonry | |
| A | 3.75” | 3.75” | 3.75” |
| B | 3” | 3” | 3” |
| C | 5.9” | 6.9” | 7.9” |
| D | 9” | 10” | 11” |
| E | 8” | 8” | 8” |
Connects 4” Pellet Vent to 4” Flex Liner
| 6” Masonry | 7” Masonry | 8” Masonry | |
| A | 4.75” | 4.75” | 4.75” |
| B | 4” | 4” | 4” |
| C | 5.9” | 6.9” | 7.9” |
| D | 9” | 10” | 11” |
| E | 8” | 8” | 8” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
Product Details:
The Rock-Vent Pellet Pipe Masonry Thimble Adapter is used to connect a flexible chimney liner tee snout to the Rock-Vent Pellet Pipe. The Masonry Adapter fits into a masonry thimble and has a black trim plate which provides a nice finished look on the appliance side. The other end connects to the flexible chimney liner tee snout for a direct connection. Available to fit 6", 7", or 8" diameter thimble holes and can connect to either a 3" or 4" flex liner tee snout. The collar at the end of the trim plate will connect directly to the Rock-Vent Pellet Pipe.
Measurement Chart:
Pellet Vent Masonry Adapter
Connects 3” Pellet Vent to 3” Flex Liner
| 6” Masonry | 7” Masonry | 8” Masonry | |
| A | 3.75” | 3.75” | 3.75” |
| B | 3” | 3” | 3” |
| C | 5.9” | 6.9” | 7.9” |
| D | 9” | 10” | 11” |
| E | 8” | 8” | 8” |
Connects 4” Pellet Vent to 4” Flex Liner
| 6” Masonry | 7” Masonry | 8” Masonry | |
| A | 4.75” | 4.75” | 4.75” |
| B | 4” | 4” | 4” |
| C | 5.9” | 6.9” | 7.9” |
| D | 9” | 10” | 11” |
| E | 8” | 8” | 8” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
Specifications:
