Rock-Vent Pellet Pipe Wall Support
Product Images
Rock-Vent Pellet Pipe Wall Support
Product Details
Help & Documents

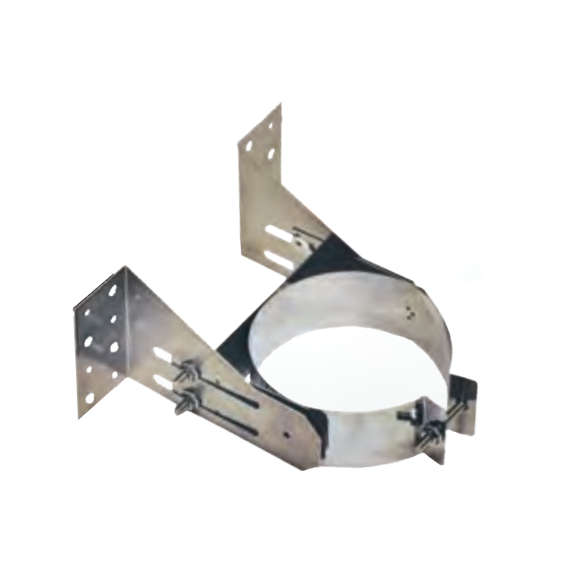

The Rock-Vent Pellet Pipe Wall Support is used to stabilize the pipe for exterior installations where added stability is needed. A Wall Support is required for every 8 feet of Pellet Pipe. The Wall Support adjusts from 1 to 4 inch clearance from the wall. Constructed with a stainless steel band and galvanized mounting brackets for a long lasting, worry-free support.
Measurement Chart:
Pellet Vent Wall Support
| 3” | 4” | |
| YY | 1”- 4” | 1”- 4” |
| A | 3.75” | 4.75” |
| B | 2” | 2” |
| C | 4” | 4” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
Product Details:
The Rock-Vent Pellet Pipe Wall Support is used to stabilize the pipe for exterior installations where added stability is needed. A Wall Support is required for every 8 feet of Pellet Pipe. The Wall Support adjusts from 1 to 4 inch clearance from the wall. Constructed with a stainless steel band and galvanized mounting brackets for a long lasting, worry-free support.
Measurement Chart:
Pellet Vent Wall Support
| 3” | 4” | |
| YY | 1”- 4” | 1”- 4” |
| A | 3.75” | 4.75” |
| B | 2” | 2” |
| C | 4” | 4” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
