Class A Roof Support
Product Details
Help & Documents

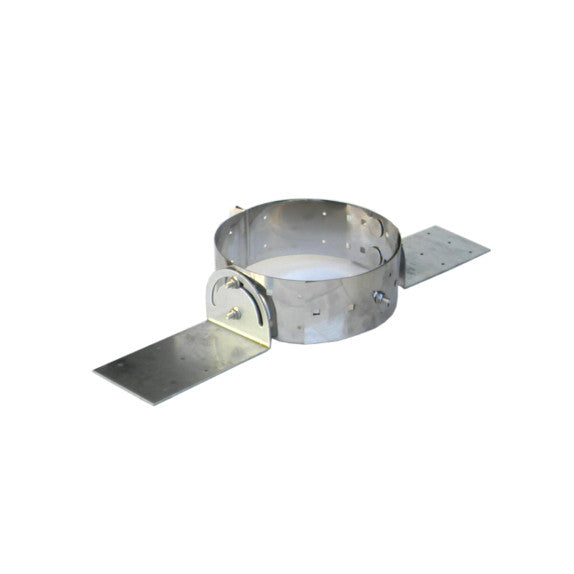

The Rock-Vent Class A Roof Support is designed to provide support for the chimney pipe at the roof line. Easily adjusts to any roof pitch and fits Rock-Vent pipe diameters of 5" to 8". Constructed with a stainless steel band with galvanized mounting brackets.
Use the Roof Support to extend Class A chimney pipe below a cathedral ceiling, when exceeding the weight limit of the primary support, above an offset, or to provide additional stability to any installation.
A roof support bracket can support up to a total of 45 feet of Rock-Vent Class-A Chimney Pipe, and no more than 20 feet below the roof support bracket. Note: Do not mount Roof Support Bracket to sheathing only.
Measurement Chart:
Class A Roof Support
| 5” | 6” | 7” | 8” | |
| A | 7.5” | 8.5” | 9.5” | 10.5” |
| B | 4” | 4” | 4” | 4” |
| C | 6.125” | 6.125” | 6.125” | 6.125” |
| YY | 3” | 3” | 3” | 3” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
Product Details:
The Rock-Vent Class A Roof Support is designed to provide support for the chimney pipe at the roof line. Easily adjusts to any roof pitch and fits Rock-Vent pipe diameters of 5" to 8". Constructed with a stainless steel band with galvanized mounting brackets.
Use the Roof Support to extend Class A chimney pipe below a cathedral ceiling, when exceeding the weight limit of the primary support, above an offset, or to provide additional stability to any installation.
A roof support bracket can support up to a total of 45 feet of Rock-Vent Class-A Chimney Pipe, and no more than 20 feet below the roof support bracket. Note: Do not mount Roof Support Bracket to sheathing only.
Measurement Chart:
Class A Roof Support
| 5” | 6” | 7” | 8” | |
| A | 7.5” | 8.5” | 9.5” | 10.5” |
| B | 4” | 4” | 4” | 4” |
| C | 6.125” | 6.125” | 6.125” | 6.125” |
| YY | 3” | 3” | 3” | 3” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
