Rock-Vent Insulated Chimney Pipe Ceiling Kit
Product Images
Pitched Ceiling Kit
Rock-Vent Insulated Chimney Pipe Ceiling Kit
Rock-Vent Insulated Chimney Pipe Ceiling Kit

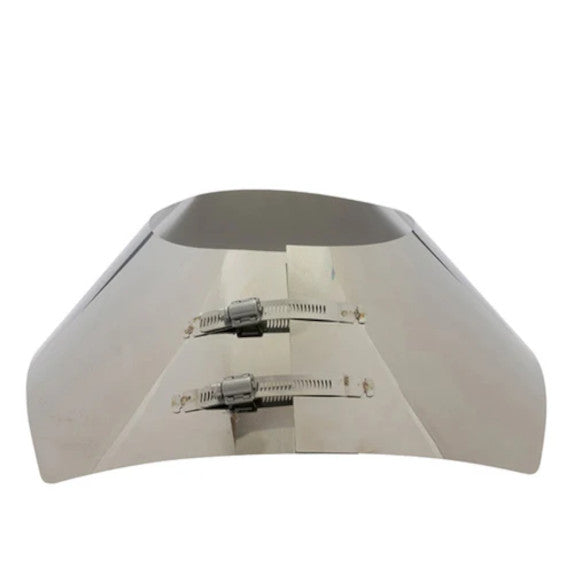

Square Storm Collar
Rock-Vent Insulated Chimney Pipe Ceiling Kit
Rock-Vent Insulated Chimney Pipe Ceiling Kit
Rock-Vent Insulated Chimney Pipe Ceiling Kit
Product Details
We offer a package that includes the common items needed to complete a flat or pitched ceiling installation for ease of ordering.

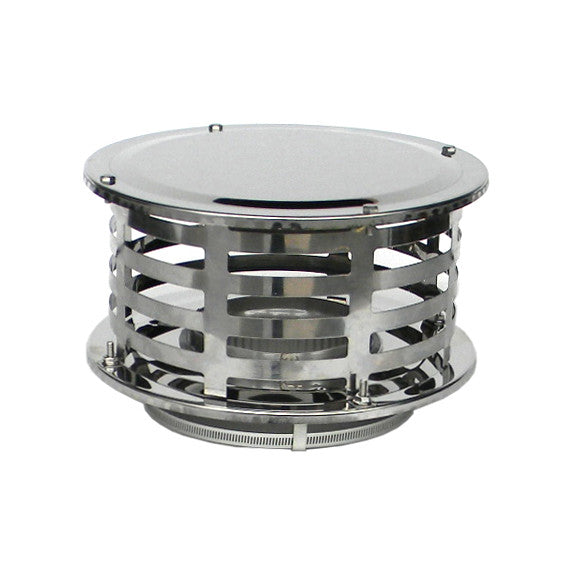

Start building your Ceiling Support Kit by choosing your 24" Square Ceiling Support with Trim & Male Adapter (to connect to black single wall stove pipe), Attic Insulation Shield (if needed), 0/12 to 6/12 or 7/12 to 12/12 Roof Flashing with Storm Collar (shingle and metal options available), and the chimney rain cap.

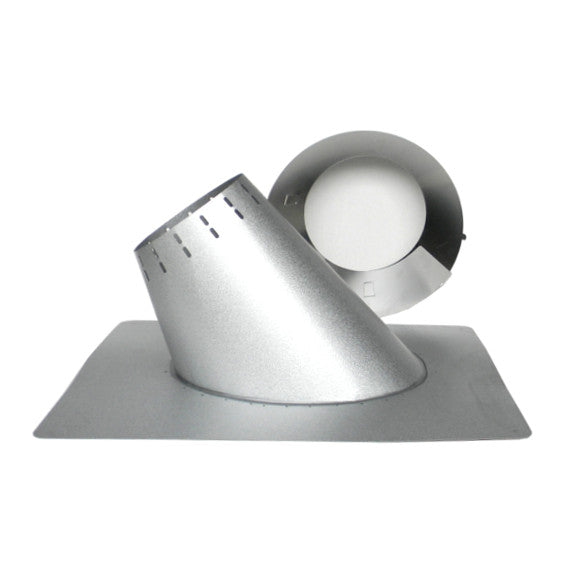

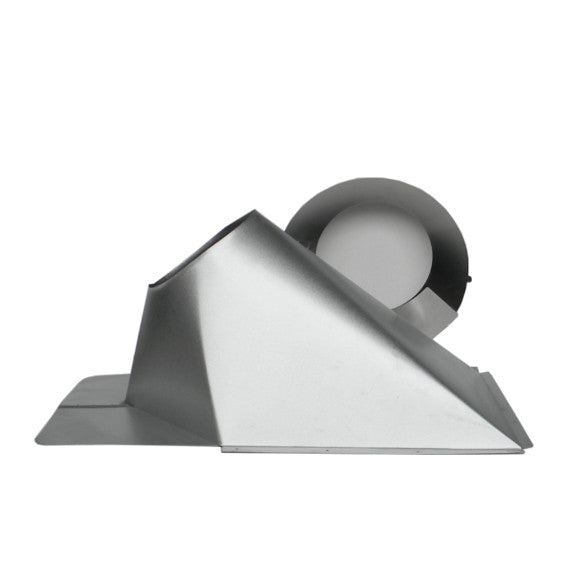

Choose the appropriate flashing & roof pitch for your installation: Standard Roof Flashing for shingled roofs or Metal Roof Flashing for metal roofs.
To order the chimney pipe you need to go along with this installation kit, please choose the Rock-Vent Class A chimney pipe for your installation.
Note: The Ceiling Support Box needs to extend at least 3" lower than the lowest part of the ceiling. Please refer to installation instructions for details & measurements.

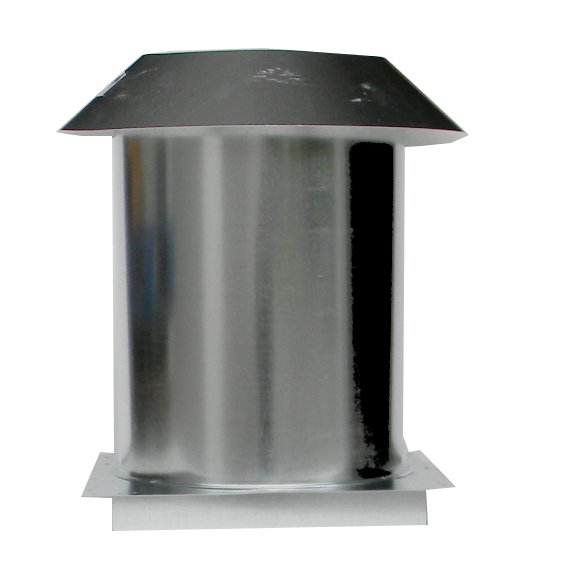

Attic Insulation Shielding Overview:
Do you need the Attic Insulation Shield? One of these three methods should be followed (please see manual below for more details):
- If your attic space is greater than 15", you should have room to install the attic insulation shield.
- Or, if your ceiling support box protrudes 10" into the attic space, you can fit the Square Collar around the chimney pipe and this would act as your attic insulation shield.
- And, if neither of the above options will work (typically low attic installations), you are required to enclose the chimney pipe in a framed enclosure and maintain the required 2 inch air space to combustibles
- Please see manual below for more details
Installation & Configuration
Example installation with the most common components needed for passing through a combustible roof / ceiling. Please note, some of the components displayed in this image are sold separately.
Rock-Vent Class A Installation Instructions
Watch How to install Rock-Vent chimney pipe.
Product Details:
We offer a package that includes the common items needed to complete a flat or pitched ceiling installation for ease of ordering.
Start building your Ceiling Support Kit by choosing your 24" Square Ceiling Support with Trim & Male Adapter (to connect to black single wall stove pipe), Attic Insulation Shield (if needed), 0/12 to 6/12 or 7/12 to 12/12 Roof Flashing with Storm Collar (shingle and metal options available), and the chimney rain cap.
Choose the appropriate flashing & roof pitch for your installation: Standard Roof Flashing for shingled roofs or Metal Roof Flashing for metal roofs.
To order the chimney pipe you need to go along with this installation kit, please choose the Rock-Vent Class A chimney pipe for your installation.
Note: The Ceiling Support Box needs to extend at least 3" lower than the lowest part of the ceiling. Please refer to installation instructions for details & measurements.
Attic Insulation Shielding Overview:
Do you need the Attic Insulation Shield? One of these three methods should be followed (please see manual below for more details):
- If your attic space is greater than 15", you should have room to install the attic insulation shield.
- Or, if your ceiling support box protrudes 10" into the attic space, you can fit the Square Collar around the chimney pipe and this would act as your attic insulation shield.
- And, if neither of the above options will work (typically low attic installations), you are required to enclose the chimney pipe in a framed enclosure and maintain the required 2 inch air space to combustibles
- Please see manual below for more details
Installation & Configuration
Example installation with the most common components needed for passing through a combustible roof / ceiling. Please note, some of the components displayed in this image are sold separately.
Rock-Vent Class A Installation Instructions
Watch How to install Rock-Vent chimney pipe.
