Rock-Vent Insulated Tee and Tee Cap
Product Images

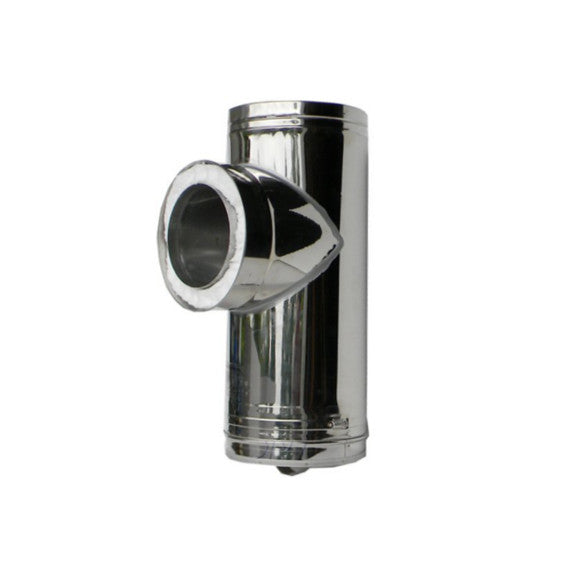

Rock-Vent Insulated Tee and Tee Cap
Rock-Vent Insulated Tee and Tee Cap
Product Details
Help & Documents
The Rock-Vent Insulated Tee and Tee Cap will be located at the base of the chimney in your installation. The Tee can be installed on the interior or the exterior of a structure.
The included tee cover is now easier to remove by means of a one nut driver connection; it's easy to remove, yet childproof. Install with a wall support or a tee support assembly.
The Standard Tee features a deep bottom reservoir, extending 8.75" below the snout, which means you do not need an extra section of pipe when using a tee support assembly to attach the tee cover. The tee snout length measure 3" in length. No more screws stripping out on the tee cover, making cleaning and inspection a breeze!
We offer two steel options for the Insulated Tee: 304L Stainless Steel Inner/430 Stainless Steel Outer or 316L Stainless Steel Inner/430 Stainless Steel Outer.
Measurement Chart:
Class A Tee
| 5” | 6” | 7” | 8” | |
| A | 5” | 6” | 7” | 8” |
| B | 7.5” | 8.5” | 9.5” | 10.5” |
| C | 10.4” | 11.4” | 12.4” | 13.4” |
| D | 7.5” | 8.5” | 9.5” | 10.5” |
| E | 18.125” | 19.125” | 20.125” | 21.125” |
| F | 7.125” | 7.125” | 7.125” | 7.125” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
Product Details:
The Rock-Vent Insulated Tee and Tee Cap will be located at the base of the chimney in your installation. The Tee can be installed on the interior or the exterior of a structure.
The included tee cover is now easier to remove by means of a one nut driver connection; it's easy to remove, yet childproof. Install with a wall support or a tee support assembly.
The Standard Tee features a deep bottom reservoir, extending 8.75" below the snout, which means you do not need an extra section of pipe when using a tee support assembly to attach the tee cover. The tee snout length measure 3" in length. No more screws stripping out on the tee cover, making cleaning and inspection a breeze!
We offer two steel options for the Insulated Tee: 304L Stainless Steel Inner/430 Stainless Steel Outer or 316L Stainless Steel Inner/430 Stainless Steel Outer.
Measurement Chart:
Class A Tee
| 5” | 6” | 7” | 8” | |
| A | 5” | 6” | 7” | 8” |
| B | 7.5” | 8.5” | 9.5” | 10.5” |
| C | 10.4” | 11.4” | 12.4” | 13.4” |
| D | 7.5” | 8.5” | 9.5” | 10.5” |
| E | 18.125” | 19.125” | 20.125” | 21.125” |
| F | 7.125” | 7.125” | 7.125” | 7.125” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
