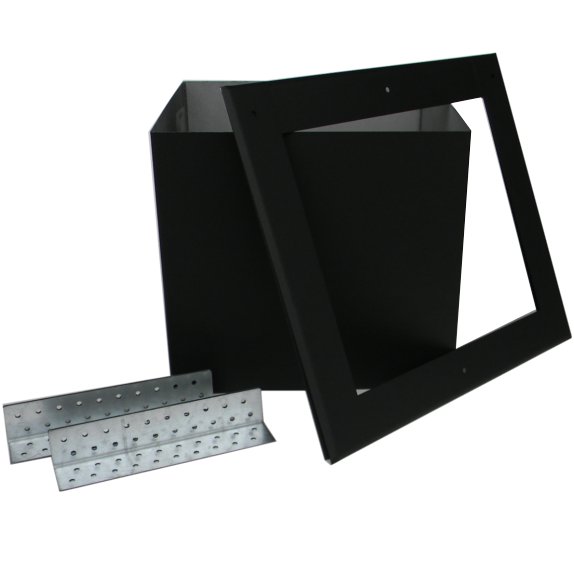

The Square Ceiling Support is used on flat, cathedral, or sloped ceilings. The bottom of the ceiling support must extend a minimum of 3 inches into the room. A Universal Adapter is included to connect Rock-Vent Class A to either single or double wall stove pipe. Supports up to 60' of chimney pipe from a floor or ceiling joist. Constructed of 24 gauge galvalume steel painted black. Square Ceiling Support includes a 2 piece trim collar suitable for any ceiling pitch. Faceplate is 18 gauge stainless steel painted black and is a unique design that doesn't rely on spot weld construction, but utilizes a secure formed edge for long term peace of mind.
Measurement Charts:
11” Square Ceiling Support

5” | 6” | 7” | 8” | |
A | 5.2” | 6.2” | 7.2” | 8.2” |
B | 11” | 12” | 13” | 14” |
C Trim | 15”x15” | 16”x16” | 17”x17” | 18”x18” |
YY | 11” | 11” | 11” | 11” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
24” Square Ceiling Support
5” | 6” | 7” | 8” | |
A | 5.2” | 6.2” | 7.2” | 8.2” |
B | 11” | 12” | 13” | 14” |
C Trim | 15”x15” | 16”x16” | 17”x17” | 18”x18” |
YY | 24” | 24” | 24” | 24” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
Product Details:
The Square Ceiling Support is used on flat, cathedral, or sloped ceilings. The bottom of the ceiling support must extend a minimum of 3 inches into the room. A Universal Adapter is included to connect Rock-Vent Class A to either single or double wall stove pipe. Supports up to 60' of chimney pipe from a floor or ceiling joist. Constructed of 24 gauge galvalume steel painted black. Square Ceiling Support includes a 2 piece trim collar suitable for any ceiling pitch. Faceplate is 18 gauge stainless steel painted black and is a unique design that doesn't rely on spot weld construction, but utilizes a secure formed edge for long term peace of mind.
Measurement Charts:
11” Square Ceiling Support

5” | 6” | 7” | 8” | |
A | 5.2” | 6.2” | 7.2” | 8.2” |
B | 11” | 12” | 13” | 14” |
C Trim | 15”x15” | 16”x16” | 17”x17” | 18”x18” |
YY | 11” | 11” | 11” | 11” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
24” Square Ceiling Support
5” | 6” | 7” | 8” | |
A | 5.2” | 6.2” | 7.2” | 8.2” |
B | 11” | 12” | 13” | 14” |
C Trim | 15”x15” | 16”x16” | 17”x17” | 18”x18” |
YY | 24” | 24” | 24” | 24” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
