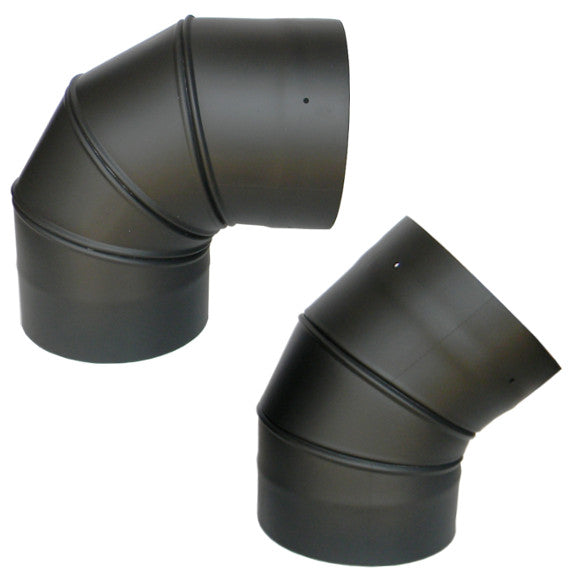

Black Single Wall Adjustable Elbows

Product Images

Black Single Wall Adjustable Elbows

Black Single Wall Adjustable Elbows

Description:
Our Single Wall Stove Pipe Elbows are available in 45 and 90 degrees. The adjustable model is easy to adjust...

Our Single Wall Stove Pipe Elbows are available in 45 and 90 degrees. The adjustable model is easy to adjust to the angle you need for installation, but won't come apart at the seams.

As low as$91.99

Product Details

Our Single Wall Stove Pipe Elbows are available in 45 and 90 degrees.

The adjustable model is easy to adjust to the angle you need for installation, but won't come apart at the seams.

Offset Charts:

45 Degree Offset Chart

Pipe Length 6" Dia.: A Offset 6" Dia.: B Height 7" Dia.: A Offset 7" Dia.: B Height 8" Dia.: A Offset 8" Dia.: B Height
6" 7.62" 16.18" 7.99" 16.88" 8.25" 17.59"
12" 11.85" 20.43" 12.24" 21.11" 12.5" 21.83"
18" 16.07" 24.69" 16.5" 25.33" 16.74" 26.07"
24" 20.3" 28.95" 20.76" 29.56" 20.99" 30.3"
36" 28.75" 37.47" 29.27" 38.02" 29.49" 38.78"
48" 37.2" 45.99" 37.79" 46.47" 37.98" 47.26"


90 Degree Offset Chart

Pipe Length 6" Dia.: A Offset 6" Dia.: B Height 7" Dia.: A Offset 7" Dia.: B Height 8" Dia.: A Offset 8" Dia.: B Height
0" 11 3/4" 13 7/8" 11 3/4" 14 7/8" 11 3/4" 15 7/8"
6" 16" 13 7/8" 16" 14 7/8" 16" 15 7/8"
12" 22" 13 7/8" 22" 14 7/8" 22" 15 7/8"
18" 28" 13 7/8" 28" 14 7/8" 28" 15 7/8"
24" 34" 13 7/8" 34" 14 7/8" 34" 15 7/8"
36" 46" 13 7/8" 46" 14 7/8" 46" 15 7/8"
48" 58" 13 7/8" 58" 14 7/8" 58" 15 7/8"

*Due to many variables beyond our control, the installer should check actual parts for final dimensions.

Product Details:

Our Single Wall Stove Pipe Elbows are available in 45 and 90 degrees.

The adjustable model is easy to adjust to the angle you need for installation, but won't come apart at the seams.

Offset Charts:

45 Degree Offset Chart

Pipe Length 6" Dia.: A Offset 6" Dia.: B Height 7" Dia.: A Offset 7" Dia.: B Height 8" Dia.: A Offset 8" Dia.: B Height
6" 7.62" 16.18" 7.99" 16.88" 8.25" 17.59"
12" 11.85" 20.43" 12.24" 21.11" 12.5" 21.83"
18" 16.07" 24.69" 16.5" 25.33" 16.74" 26.07"
24" 20.3" 28.95" 20.76" 29.56" 20.99" 30.3"
36" 28.75" 37.47" 29.27" 38.02" 29.49" 38.78"
48" 37.2" 45.99" 37.79" 46.47" 37.98" 47.26"


90 Degree Offset Chart

Pipe Length 6" Dia.: A Offset 6" Dia.: B Height 7" Dia.: A Offset 7" Dia.: B Height 8" Dia.: A Offset 8" Dia.: B Height
0" 11 3/4" 13 7/8" 11 3/4" 14 7/8" 11 3/4" 15 7/8"
6" 16" 13 7/8" 16" 14 7/8" 16" 15 7/8"
12" 22" 13 7/8" 22" 14 7/8" 22" 15 7/8"
18" 28" 13 7/8" 28" 14 7/8" 28" 15 7/8"
24" 34" 13 7/8" 34" 14 7/8" 34" 15 7/8"
36" 46" 13 7/8" 46" 14 7/8" 46" 15 7/8"
48" 58" 13 7/8" 58" 14 7/8" 58" 15 7/8"

*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
