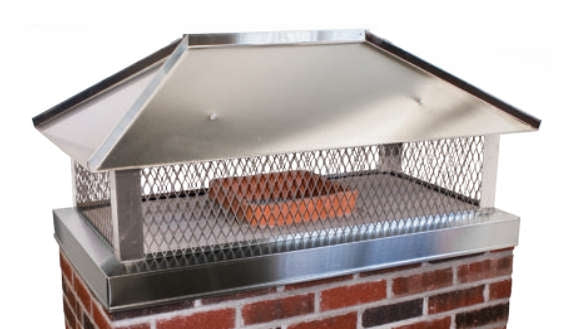

Stainless Steel Multi-Flue Cap with Hip and Ridge Lid, Outside Mount

Product Images

Stainless Steel Multi-Flue Cap with Hip and Ridge Lid, Outside Mount

Stainless Steel Multi-Flue Cap with Hip and Ridge Lid, Outside Mount

Optional Powder Coating

Optional Powder Coating

Optional Powder Coat Colors

Optional Powder Coat Colors

Diagram of Chimney Cap

Diagram of Chimney Cap

Description:
Outside Mount, Hip & Ridge Lid multi flue caps are made per order for the perfect fit. Features 2" overhang,...

Outside Mount, Hip & Ridge Lid multi flue caps are made per order for the perfect fit. Features 2" overhang, 3/4" mesh, 6/12 lid pitch, 3" vertical skirt, 2" horizontal skirt, removable lid & drip edges.

As low as$1.00

Product Details

Specifications

The Outside Mount with Hip and Ridge Lid Multi-Flue Cap is the perfect top-mount chimney cap for curb appeal and durability. The pitched lid is a statement piece with decorative appearance and is sure to increase the value of any home. Fabricated from 304L, our stainless steel chimney cap provides unmatched protection for the top & inside of the chimney.

Additionally, the Hip and Ridge lid is fabricated with a 6/12 pitch and provides a 2" lid overhang over the sides of the mesh screen. The lid of the stainless steel chimney cap is removable for easy access to the chimney flues for cleanings and maintenance. Provide charm and long-lasting defense against critters, rain, snow, debris, and deterioration.

Installation

Installing your new stainless steel chimney cap will be a breeze with the 3" vertical skirt. The vertical skirt panel will encompass the full perimeter of the masonry chimney. Add a bead of silicone on the inner skirt panel and slide the outside mount cap over the chimney.

Using a drill bit, pre-drill the pilot holes through the skirt panel and into the chimney. Secure the cap with masonry screws and silicone (included). Depending on cap size, we recommend adding 2-3 masonry screws evenly spaced along the sides of the cap. That usually works out to be 18 to 24 inches between masonry screws.

With the measurements you provide, we will fabricate the cap for a perfect fit. Removable lid for easy access, cleanings, and maintenance. Features a lid overhang of 2" on all sides of the mesh screen.

Why Choose Our Stainless Steel Chimney Cap

When choosing a multi-flue chimney cap, stainless steel is the best option. You are choosing to install a chimney cap that will last a lifetime, never rust, and offer protection for your chimney.

Our cap is equipped with a 2" horizontal skirt that provides a ledge for the cap to be supported by the outside edge of the chimney. Features a 3" vertical skirt that extends down each side of the chimney, allowing you to attach the cap to the sides of the chimney. The vertical side skirt has a drip edge to help divert rainwater from running straight down the chimney sides.

Constructed out of 304L stainless steel and warrantied for life against rust or defects. The Hip and Ridge lid is ideal for customers concerned about snow load or would like to enhance the appearance of the home's exterior.

Add beauty & curb appeal to your chimney cap by adding optional powder coating. See image swatch above for color options - Read More About Powder Coating

Measuring for Your Stainless Steel Chimney Cap

Measure your chimney to ensure a custom fit with our measuring tips. Provide your measurements and we will fabricate the stainless steel chimney cap accordingly.

Most importantly, we recommend adding at least 1/4" extra allowance to the exact length and width measurements of the masonry chimney. Screen height size is recommended to be at least 6" taller than the tallest flue. For example, if your tallest flue measures 8", then the screen height should be at least 14".

Note: Stainless Steel Multi-Flue Caps are made custom per order and are non-returnable. Fabrication time is currently 1-2 weeks due to item popularity. Powder coating adds 1 week to the timeline (and is worth the wait!)

When measuring for your new Hip and Ridge Stainless Steel Chimney Cap, here are the items you will want to consider:

  • Overall length of chimney (we recommend adding 1/4" to the exact measurement)
  • Overall width of chimney (we recommend adding 1/4" to the exact measurement)
  • Screen height (should be at least 6" higher than the tallest flue)
  • Measuring Form (Printable PDF)

Features

  • 2" Lid Overhang
  • 3/4" Mesh
  • 6/12 Lid Pitch
  • 3" Vertical Skirt
  • 2" Horizontal Skirt
  • Corner Reinforcement Braces
  • Self-Locking Serrated Flange Nuts
  • Removable Lid
  • Drip Edges
  • 24 Gauge Stainless Steel

Product Details:

The Outside Mount with Hip and Ridge Lid Multi-Flue Cap is the perfect top-mount chimney cap for curb appeal and durability. The pitched lid is a statement piece with decorative appearance and is sure to increase the value of any home. Fabricated from 304L, our stainless steel chimney cap provides unmatched protection for the top & inside of the chimney.

Additionally, the Hip and Ridge lid is fabricated with a 6/12 pitch and provides a 2" lid overhang over the sides of the mesh screen. The lid of the stainless steel chimney cap is removable for easy access to the chimney flues for cleanings and maintenance. Provide charm and long-lasting defense against critters, rain, snow, debris, and deterioration.

Installation

Installing your new stainless steel chimney cap will be a breeze with the 3" vertical skirt. The vertical skirt panel will encompass the full perimeter of the masonry chimney. Add a bead of silicone on the inner skirt panel and slide the outside mount cap over the chimney.

Using a drill bit, pre-drill the pilot holes through the skirt panel and into the chimney. Secure the cap with masonry screws and silicone (included). Depending on cap size, we recommend adding 2-3 masonry screws evenly spaced along the sides of the cap. That usually works out to be 18 to 24 inches between masonry screws.

With the measurements you provide, we will fabricate the cap for a perfect fit. Removable lid for easy access, cleanings, and maintenance. Features a lid overhang of 2" on all sides of the mesh screen.

Why Choose Our Stainless Steel Chimney Cap

When choosing a multi-flue chimney cap, stainless steel is the best option. You are choosing to install a chimney cap that will last a lifetime, never rust, and offer protection for your chimney.

Our cap is equipped with a 2" horizontal skirt that provides a ledge for the cap to be supported by the outside edge of the chimney. Features a 3" vertical skirt that extends down each side of the chimney, allowing you to attach the cap to the sides of the chimney. The vertical side skirt has a drip edge to help divert rainwater from running straight down the chimney sides.

Constructed out of 304L stainless steel and warrantied for life against rust or defects. The Hip and Ridge lid is ideal for customers concerned about snow load or would like to enhance the appearance of the home's exterior.

Add beauty & curb appeal to your chimney cap by adding optional powder coating. See image swatch above for color options - Read More About Powder Coating

Measuring for Your Stainless Steel Chimney Cap

Measure your chimney to ensure a custom fit with our measuring tips. Provide your measurements and we will fabricate the stainless steel chimney cap accordingly.

Most importantly, we recommend adding at least 1/4" extra allowance to the exact length and width measurements of the masonry chimney. Screen height size is recommended to be at least 6" taller than the tallest flue. For example, if your tallest flue measures 8", then the screen height should be at least 14".

Note: Stainless Steel Multi-Flue Caps are made custom per order and are non-returnable. Fabrication time is currently 1-2 weeks due to item popularity. Powder coating adds 1 week to the timeline (and is worth the wait!)

When measuring for your new Hip and Ridge Stainless Steel Chimney Cap, here are the items you will want to consider:

  • Overall length of chimney (we recommend adding 1/4" to the exact measurement)
  • Overall width of chimney (we recommend adding 1/4" to the exact measurement)
  • Screen height (should be at least 6" higher than the tallest flue)
  • Measuring Form (Printable PDF)

Specifications:

Features

  • 2" Lid Overhang
  • 3/4" Mesh
  • 6/12 Lid Pitch
  • 3" Vertical Skirt
  • 2" Horizontal Skirt
  • Corner Reinforcement Braces
  • Self-Locking Serrated Flange Nuts
  • Removable Lid
  • Drip Edges
  • 24 Gauge Stainless Steel
