Product Details

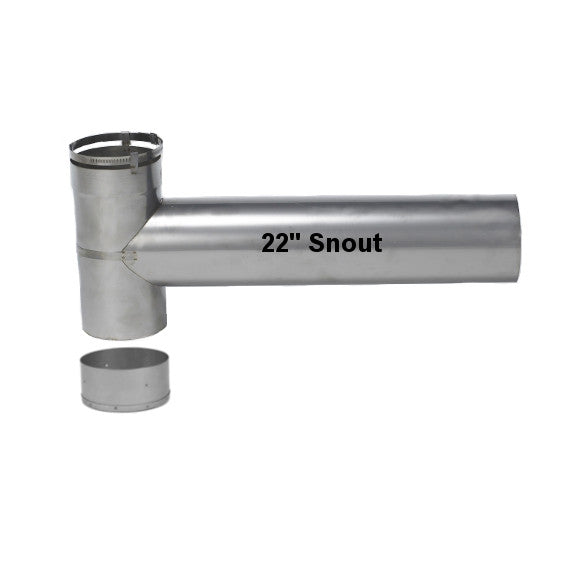

Need more length? This tee connection features the quick-connect band clamp connection and the snout measures 22" long. The 22" snout is perfect for a long thimble, or if you wish to pull your stove a little further out on the hearth. If you need the snout to be less than 22" simply cut it down with a hack saw.

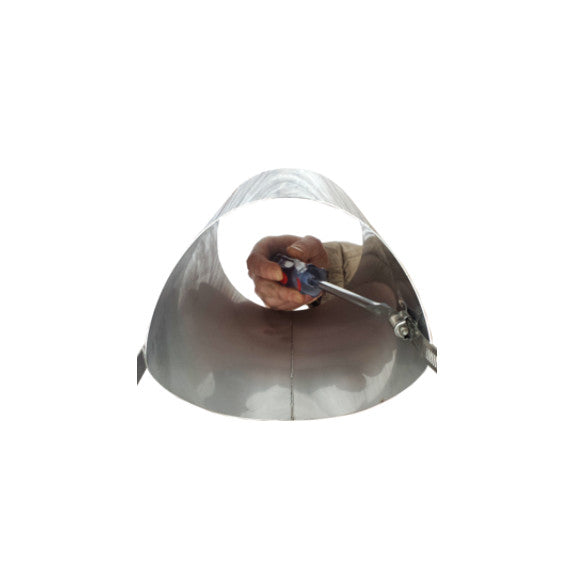

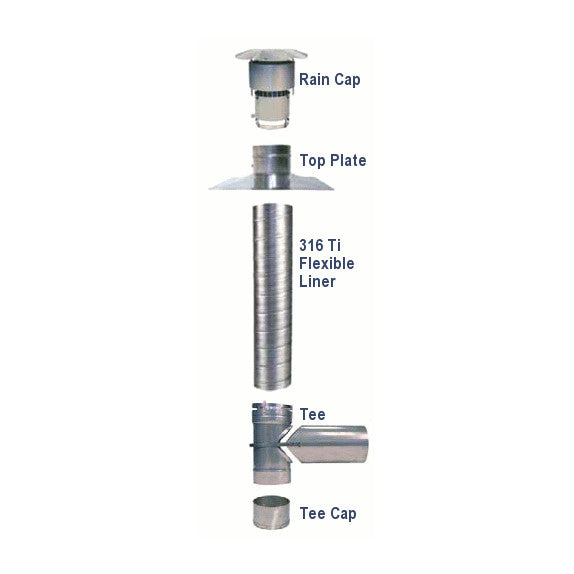

The Tee Connector features a tee cap, a removable 22" long snout, a secure inside removable clamp connection and the quick connect band. Tee Connections are used to connect our flexible liner to the back of an appliance such as a stove or most commonly used to pass through a chimney thimble. The vertical part of the tee (the tee body) will connect to the flexible chimney liner. The horizontal part of the tee (the snout) will connect to the back of the appliance or pass through the thimble. The unique quick-connect clamp design allows the two parts of the tee to easily attach with a tight and secure seal. The quick-connect clamp screw is located inside the tee snout for easy access during installation. A clean out cap is always included! The removable clean out tee cap allows for easy access for cleanings.

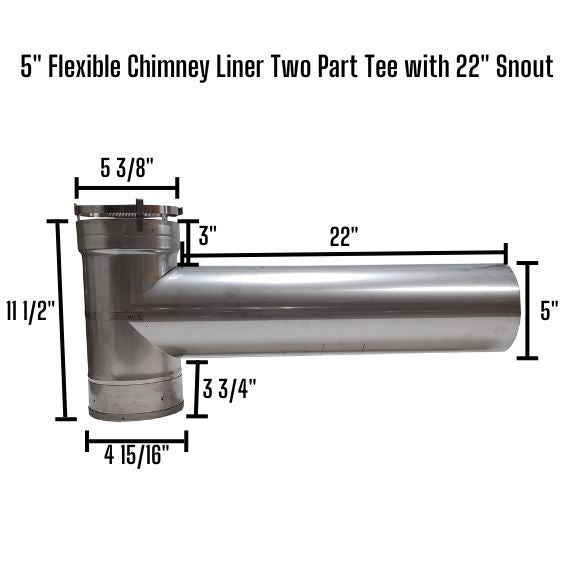

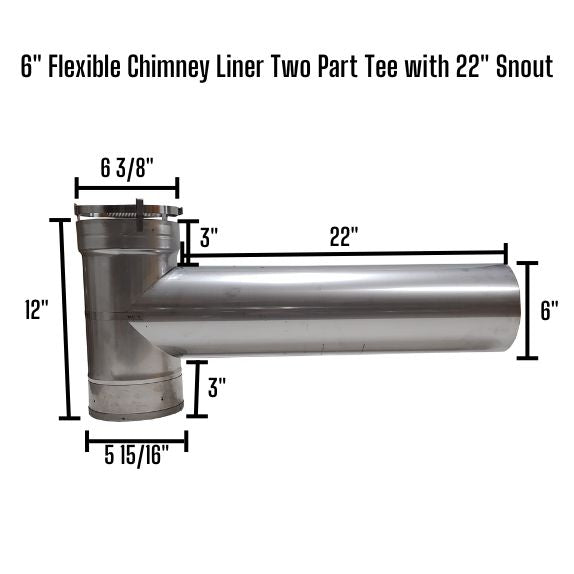

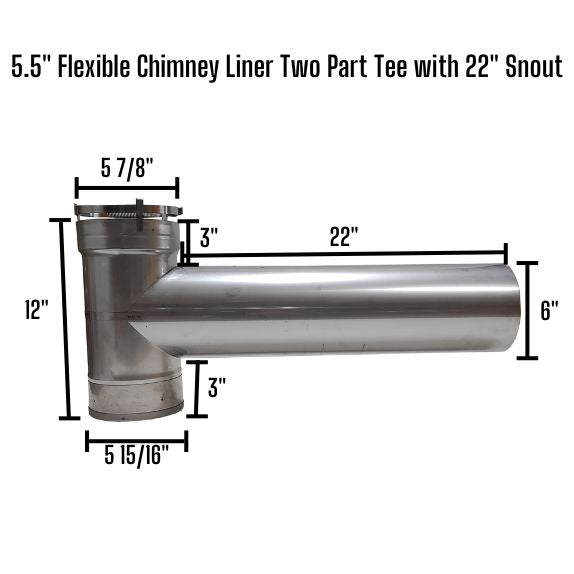

The Tee Connection adds 1/2" to the diameter size of the flexible liner (Ex: A 6" diameter tee connection has an outside diameter around 6.5"). Clean out cap is always included! See our Rock-Flex Tee Connector dimensions.
Note: The Tee Snout is a female end and depending on your application you will need to have it crimped or add a Flex Liner Snout Adapter (only for 5.5" to 8" diameters).
Watch our Chimney Tee Connector Installation Video

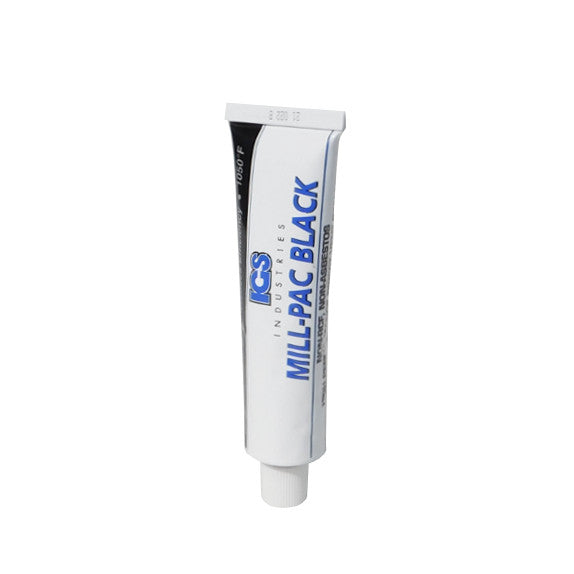

Use the conveniently sized 90ml squeeze tube of Mill-Pac to seal the connection. Maximum temperature range 1050 degrees Fahrenheit. Product cures with heat from the appliance. Optional accessory.
Note: This is not for use with our Premium Smooth Wall flexible chimney liner
Product Details:
Need more length? This tee connection features the quick-connect band clamp connection and the snout measures 22" long. The 22" snout is perfect for a long thimble, or if you wish to pull your stove a little further out on the hearth. If you need the snout to be less than 22" simply cut it down with a hack saw.
The Tee Connector features a tee cap, a removable 22" long snout, a secure inside removable clamp connection and the quick connect band. Tee Connections are used to connect our flexible liner to the back of an appliance such as a stove or most commonly used to pass through a chimney thimble. The vertical part of the tee (the tee body) will connect to the flexible chimney liner. The horizontal part of the tee (the snout) will connect to the back of the appliance or pass through the thimble. The unique quick-connect clamp design allows the two parts of the tee to easily attach with a tight and secure seal. The quick-connect clamp screw is located inside the tee snout for easy access during installation. A clean out cap is always included! The removable clean out tee cap allows for easy access for cleanings.
The Tee Connection adds 1/2" to the diameter size of the flexible liner (Ex: A 6" diameter tee connection has an outside diameter around 6.5"). Clean out cap is always included! See our Rock-Flex Tee Connector dimensions.
Note: The Tee Snout is a female end and depending on your application you will need to have it crimped or add a Flex Liner Snout Adapter (only for 5.5" to 8" diameters).
Watch our Chimney Tee Connector Installation Video
Use the conveniently sized 90ml squeeze tube of Mill-Pac to seal the connection. Maximum temperature range 1050 degrees Fahrenheit. Product cures with heat from the appliance. Optional accessory.
Note: This is not for use with our Premium Smooth Wall flexible chimney liner
