Selkirk SuperPro / SuperVent Wall Thimble
Product Images
Selkirk SuperPro / SuperVent Wall Thimble
Product Details
Help & Documents

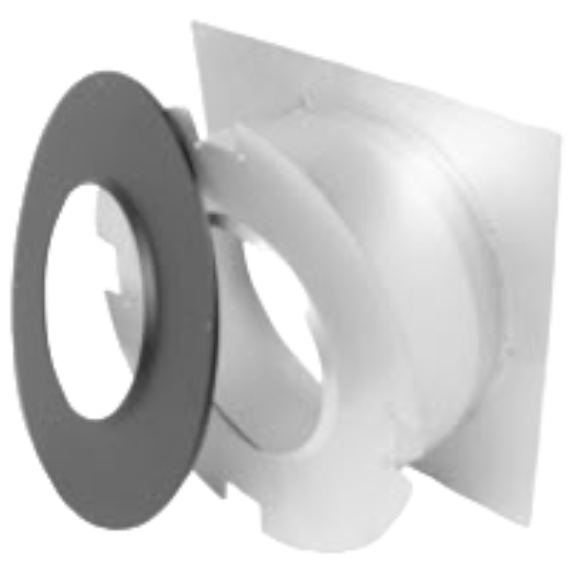

The SuperPro / SuperVent Wall Thimble is used to provide safe passage of the chimney pipe as it passes through a wall. The Wall Thimble can accommodate a wall thickness from 4.5 in. to 8.75 in. The black interior firestop will provide a finished look for the wall penetration and the galvanized exterior firestop will ensure the thimble is water tight.
A section of SuperPro / SuperVent chimney pipe must pass through the wall thimble and extend a minimum of 3 in. inside the living space to provide the appropriate clearance for the stove pipe The horizontal section passing through the thimble must not exceed 24 in. in length.
SuperPro and SuperVent models are compatible with each other according to the manufacturer. The 6 in. & 8 in. diameters are the SuperPro model (compatible with SuperVent). The 7 in. diameter is the SuperVent model (compatible with SuperPro).
Special Order: 7" available upon request, please contact us for quote.
Measurement Chart:
Selkirk SuperPro / SuperVent Wall Thimble
| Size | 6" | 7" | 8" |
| A | 8.125" | 9.125" | 10.125" |
| B | 16" | 16" | 16" |
| C | 16.125" | 16.125" | 16.125" |
Â
Product Details:
The SuperPro / SuperVent Wall Thimble is used to provide safe passage of the chimney pipe as it passes through a wall. The Wall Thimble can accommodate a wall thickness from 4.5 in. to 8.75 in. The black interior firestop will provide a finished look for the wall penetration and the galvanized exterior firestop will ensure the thimble is water tight.
A section of SuperPro / SuperVent chimney pipe must pass through the wall thimble and extend a minimum of 3 in. inside the living space to provide the appropriate clearance for the stove pipe The horizontal section passing through the thimble must not exceed 24 in. in length.
SuperPro and SuperVent models are compatible with each other according to the manufacturer. The 6 in. & 8 in. diameters are the SuperPro model (compatible with SuperVent). The 7 in. diameter is the SuperVent model (compatible with SuperPro).
Special Order: 7" available upon request, please contact us for quote.
Measurement Chart:
Selkirk SuperPro / SuperVent Wall Thimble
| Size | 6" | 7" | 8" |
| A | 8.125" | 9.125" | 10.125" |
| B | 16" | 16" | 16" |
| C | 16.125" | 16.125" | 16.125" |
Â
Help & Documents:
DIY Center
(AKA ‘The Rockford Files’)
From video tutorials to product walkthroughs, we have a variety of DIY resources just for you! Click the button below to view our entire library.
Our 316Ti flexible chimney liner and chimney liner components have passed the rigorous testing at the Underwriters Laboratories with best in class status and are UL Listed. So if you are looking for UL listed chimney liner sold directly to homeowners, then look no further than Rockford Chimney
