Terra-Cotta Top Plate
Product Images
Terra-Cotta Top Plate
Product Details

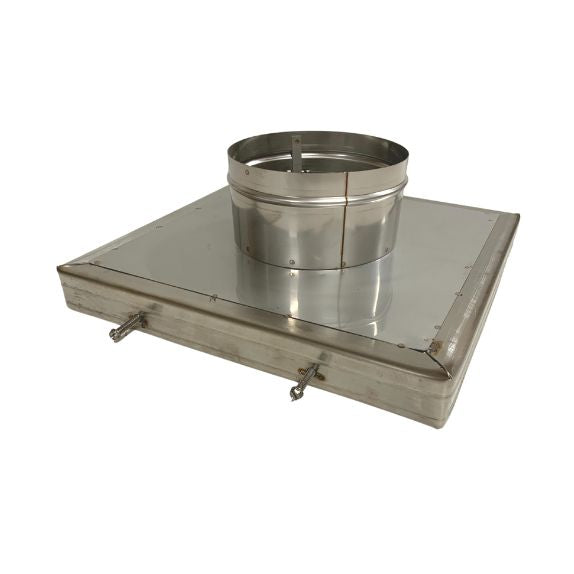

Our Terra-Cotta Top Plate fastens right on the terra-cotta flue tile. The top plate pressure screws to the tile like a traditional single flue cap and gives a great no hassle, finished look. No drilling or cutting required! The collar quick-connect band clamp securely tightens to the flexible chimney liner with ease and supports the weight of the liner while also keeping rain, wind, and snow out of the existing flue. The clay tile flue should protrude through the chimney crown at least 1.5" in order for the pressure screws to grab the sides of the flue tile. You are sure to love it!
See our Top Plate & Chimney Cap Options Product Overview for a detailed explanation of each option.
Note: The sizes listed in the dropdown begin with the diameter of the flexible chimney liner followed by the length and width of the top plate. Example: 6" x 13" x 13" is for a 6" diameter flexible chimney liner and the plate will measure 13" x 13".
Sizing Chart:
|
Fits Clay Liner Size: |
||
|
Top Plate Size WxL |
Length |
Width |
|---|---|---|
|
8” x 8” |
6 1/2" to 9 1/8" |
6 1/2" to 9 1/8" |
|
8" x 13" |
6 1/2" to 9 1/8" |
11" to 14 1/8" |
|
13" x 13" |
11 1/2" to 14 1/8" |
11 1/2" to 14 1/8" |
|
13" x 18" |
11 1/2" to 14 1/8" |
16" to 19 1/8" |
Product Details:
Our Terra-Cotta Top Plate fastens right on the terra-cotta flue tile. The top plate pressure screws to the tile like a traditional single flue cap and gives a great no hassle, finished look. No drilling or cutting required! The collar quick-connect band clamp securely tightens to the flexible chimney liner with ease and supports the weight of the liner while also keeping rain, wind, and snow out of the existing flue. The clay tile flue should protrude through the chimney crown at least 1.5" in order for the pressure screws to grab the sides of the flue tile. You are sure to love it!
See our Top Plate & Chimney Cap Options Product Overview for a detailed explanation of each option.
Note: The sizes listed in the dropdown begin with the diameter of the flexible chimney liner followed by the length and width of the top plate. Example: 6" x 13" x 13" is for a 6" diameter flexible chimney liner and the plate will measure 13" x 13".
Sizing Chart:
|
Fits Clay Liner Size: |
||
|
Top Plate Size WxL |
Length |
Width |
|---|---|---|
|
8” x 8” |
6 1/2" to 9 1/8" |
6 1/2" to 9 1/8" |
|
8" x 13" |
6 1/2" to 9 1/8" |
11" to 14 1/8" |
|
13" x 13" |
11 1/2" to 14 1/8" |
11 1/2" to 14 1/8" |
|
13" x 18" |
11 1/2" to 14 1/8" |
16" to 19 1/8" |
