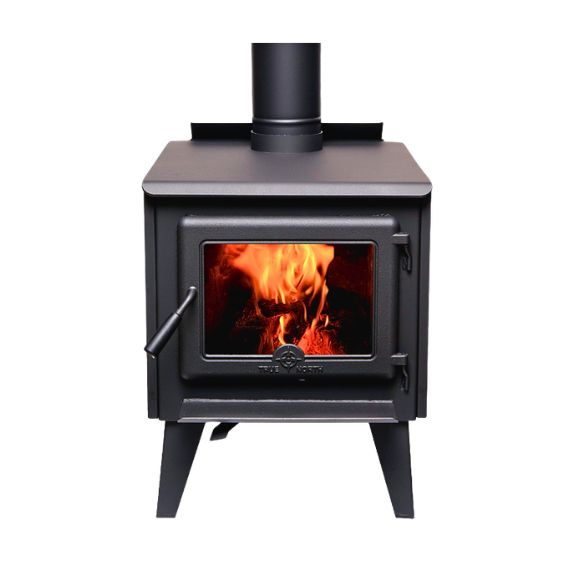

True North TN20 Wood Stove
Product Images
True North TN20 Wood Stove
True North TN20 Wood Stove
Product Details
Specifications
Help & Documents
Options
The True North TN20 Wood Burning Stove is a dependable heating solution designed for homeowners who want efficient warmth and straightforward operation in a compact footprint. Built with rugged steel construction and a clean-burning tube combustion system, the TN20 delivers impressive heat output of up to 60,000 BTUs while maintaining simple, user-friendly controls.
The TN20 is capable of heating medium to large living spaces, making it an excellent choice for cabins, workshops, or primary living areas. Its 2.0 cubic foot firebox provides ample capacity for extended burns while maintaining efficient fuel use. Designed to accommodate logs up to 18 inches in length, this stove allows for easy loading and steady heat production, helping you maintain a comfortable environment with fewer reloads.

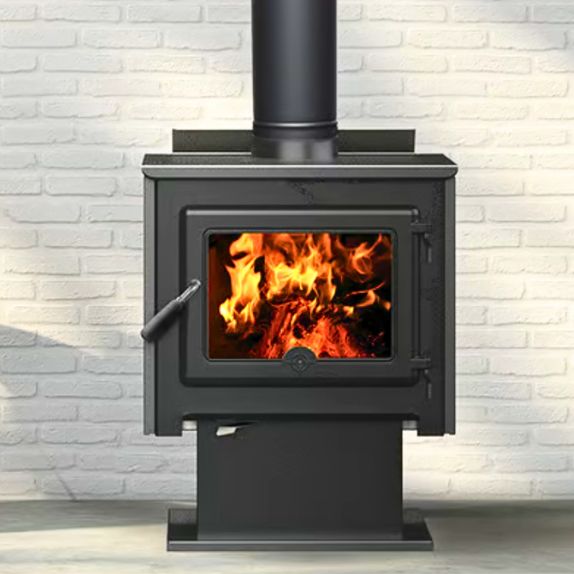

The TN20 offers the flexibility to match your installation style with a choice between classic metallic black legs for a traditional freestanding look or a pedestal base for a more contemporary appearance and added height. For improved heat distribution, an optional 80 CFM blower can be added to help move warm air throughout the room more quickly and evenly, maximizing overall comfort. Engineered with reliable non-catalytic technology and an air wash system to keep the glass clear, the TN20 combines low maintenance with efficient performance, giving you a beautiful view of the fire along with dependable heat.
Features
- Reliable, durable catalytic-free technology
- EPA2020 Certified
- Air wash system for super clean ceramic glass
- Inside and outside combustion air capable
- Heavy plate-steel top
- Mobile home approved
- Single-Lever Air Control
- Cast iron door
Measuring for Your True North TN20 Wood Stove
Stove Insert Measurement Guides
Installing Your New Wood Stove
True North TN20 Wood Stove Specifications |
|
| Fuel Type | Cord Wood |
| Recommended heating area | Up to 2,000 sq. ft. |
| Overall firebox volume | 2.0 cu. ft. |
| Maximum Burn Time | 8 Hours |
| Maximum heat output-dry cordwood | 55,000 BTU |
| Minimum overall heat output rate | 13,900 BTU |
| Maximum overall heat output rate | 29,200 BTU |
| Optimum efficiency | 73.00% |
| Average particulate emission rate | 1.6 g/hr. |
| Size | Large |
| Alcove installation approved | Yes |
| Mobile Home Installation Approval | Yes, with fresh air intake |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Overall dimension (Width) | 21 5/8" |
| Overall dimension (Height) | 28 1/8" |
| Overall dimension (Depth) | 28 3/4" |
| Premium quality blower included (CFM) | Optional |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6″ |
| Recommended chimney diameter | 6” |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12’ |
| Door Type | Single, glass with cast iron frame |
| Glass type/td> | Ceramic glass |
| Steel thickness-body | 10 Gauge steel |
| Steel thickness-top | 10 Gauge Steel |
| Maximum log length | 20” |
| Log positioning | Side to Side |
| Firebox lined with refractory bricks | Yes |
| Baffle type | Insulated board |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (safety) | ULC S627 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| USA Standard (safety) | UL 1482, UL 737 |
| Warranty | Limited Lifetime |
Minimum Clearance to Combustibles:
| Clearance to Combustibles* | Single Wall | Double Wall | Mobile Home |
| Clearance - Back Wall | 12” | 8” | 5” |
| Clearance - Side Wall | 12” | 8” | 8” |
| Clearance - Corner | 8” | 3” | 3” |
| Clearance - Base of the unit to ceiling | 57 3/4” | 57 3/4” | 57 3/4” |
| Clearance - Center of exhaust hole to Back Wall | 18 3/8” | 11 3/8” | 11 3/8” |
| Clearance - Center of exhaust hole to Side Wall | 22 3/4” | 18 3/4” | 18 5/8” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. |
