Bring dependable warmth and modern clean-burn performance into your home with the True North TN25c wood burning stove. Designed for homeowners who want efficient heat without complicated operation. The TN25c combines rugged steel construction with advanced combustion technology to deliver steady, comfortable warmth all season long.
The TN25c features innovative Passive Catalytic Technology combined with Electronic Combustion Assist, allowing the stove to operate without a manual bypass while delivering a cleaner, more efficient burn. This advanced system helps lower emissions, improve efficiency, and simplify operation while giving you reliable performance with less maintenance.
With an approximate heating capacity of 1,300 to 2,000 square feet, this stove is ideal for medium-to-large living spaces, cabins and open floor plans, providing powerful output while maintaining excellent fuel efficiency. The TN25c produces up to 60,000 BTUs of peak heat output, with EPA-tested output ranging from about 13,900 to 29,200 BTUs. The 76% HHV efficiency rating proves you will get maximum heat efficiency with every load of wood.
At the heart of the TN25c is a 2.0 cubic foot firebox that is capable of handling up to 20" logs. The firebox is easy to load and maintains a steady fire. Once the fire is established, the TN25c can burn for up to 8 hours with one load of wood. For even greater comfort, an optional 80 CFM convection blower is available to more effectively push warm air throughout your room, improving overall heating performance.

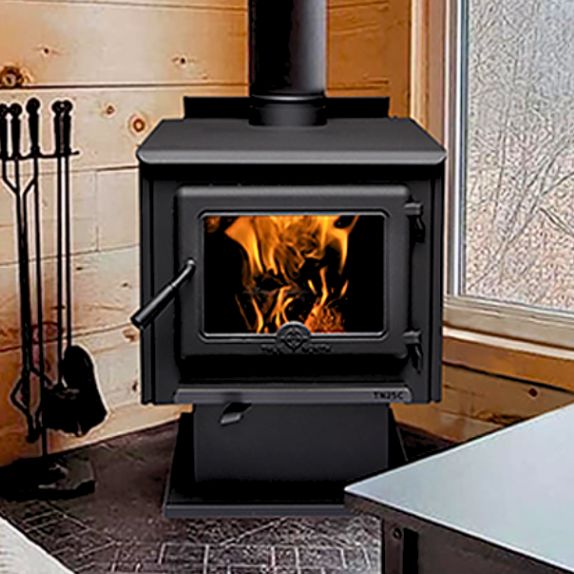

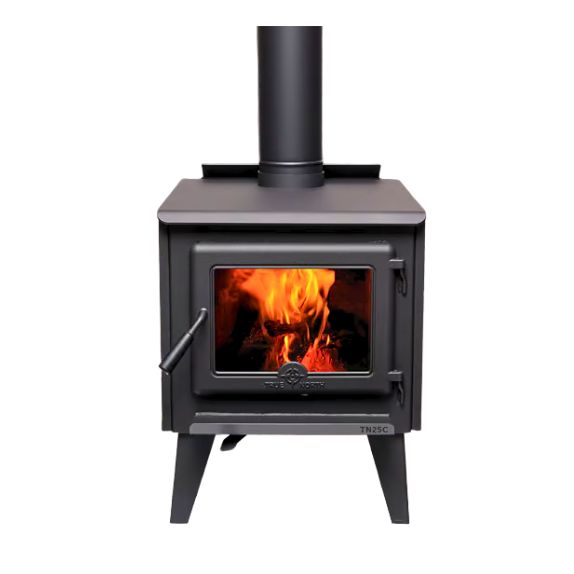

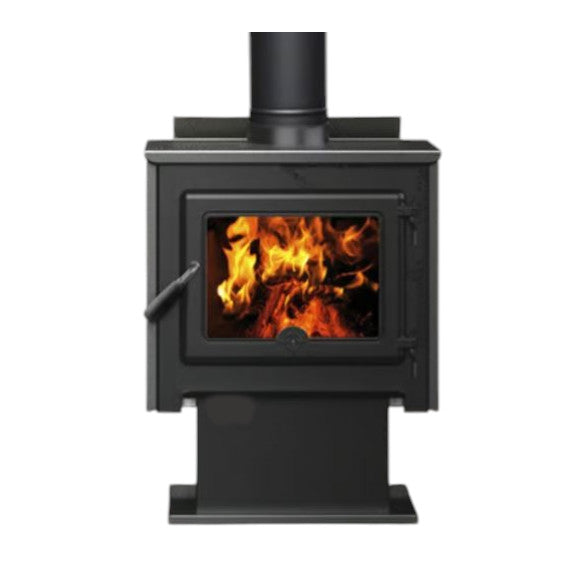

The True North TN25c Wood Stove offers the choice of metallic black legs or a pedestal base, allowing you to tailor the stove’s look and presence to your space while maintaining the same performance and build quality. Choosing legs gives the stove a more traditional, freestanding appearance with a lighter visual footprint, making it a great fit for classic or rustic interiors. On the other hand, the pedestal base creates a more streamlined, contemporary look with a solid, grounded feel that can complement modern spaces.
Features
- Complete with Cast Iron Door, Side Shields and Pedestal
- Easy to use Single Lever Air Control
- Electronic Combustion Assist (Patent Pending)
- Passive Cat Technology (Patent Pending)
- No Manual Bypass
- Inside and Outside Combustion Air Capable
- Heavy Plate-Steel Top
- Mobile Home Approved
Measuring for Your True North TN25C Wood Stove
Stove Insert Measurement Guides
Installing Your New Wood Stove
True North TN25C Wood Stove Specifications |
|
| Fuel Type | Dry cordwood (18" recommended) |
| Recommended heating area | Up to 2,000 sq. ft. |
| Overall firebox volume | 2 cu. ft. |
| Maximum Burn Time | 8 Hours |
| Maximum heat output-dry cordwood | 60,000 BTU |
| Minimum overall heat output rate | 13,450 BTU |
| Maximum overall heat output rate | 29,200 BTU |
| Optimum efficiency | 76.00% |
| Average particulate emission rate | 1.1 g/hr. |
| Size | Large |
| Alcove installation approved | Yes, with fresh air intake |
| Mobile Home Installation Approval | Yes, with fresh air intake |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Overall dimension (Width) | 21 5/8" |
| Overall dimension (Height) | 28 3/8" |
| Overall dimension (Depth) | 29 7/8" |
| Premium quality blower included (CFM) | Optional |
| Combustion technology | Passive Cat Technology (Patent Pending) |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6″ |
| Recommended chimney diameter | 6” |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12’ |
| Glass type | Ceramic glass |
| Steel thickness-body | 10 Gauge steel |
| Steel thickness-top | 10 Gauge Steel |
| Maximum log length | 20" (18" recommended) |
| Log positioning | Front to Back |
| Firebox lined with refractory bricks | Yes |
| Baffle type | Insulated board |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (emissions) | EPA |
| USA Standard (safety) | UL 1482, UL 737 |
| Warranty | Limited Lifetime |
| Shipping Weight | 525 lb (238 kg) |
Minimum Clearance to Combustibles:
| Clearance to Combustibles* | Single Wall | Double Wall | Mobile Home DW |
| Clearance - Back Wall | 10” | 6 1/2” | 10” |
| Clearance - Side Wall | 16” | 16” | 20” |
| Clearance - Corner | 9 1/2” | 7” | 21 ⅛” |
| Clearance - Base of the unit to ceiling | 56 ¾” | 56 ¾” | 56 ¾” |
| Clearance - Center of exhaust hole to Back Wall | 14 1/2” | 11” | 14 1/2” |
| Clearance - Center of exhaust hole to Side Wall | 26 7/8” | 26 7/8” | 30 7/8” |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | ||||
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. |
