Selkirk Universal Interior Re-Support
Product Images

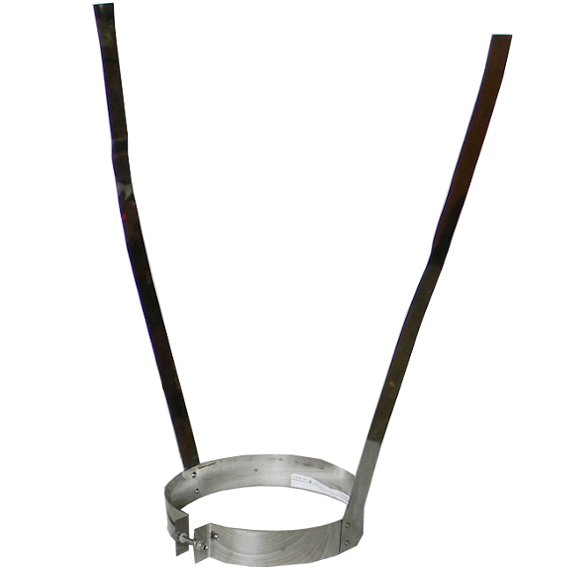

Selkirk Universal Interior Re-Support
Product Details
The Selkirk Interior Re-Support assembly allows for two different methods of chimney re-support.
The first method is used at the immediate section of chimney above the upper elbow of an offset. With the appropriate Fire Stop Joist Shield in place, clamp the support band around chimney and attach with 6 sheet metal screws.
The second means of support is used primarily when the immediate sections of the upper offset do not pass through a joist area and re-support is necessary. The Support Band is clamped around the chimney immediately below a Locking Band.
In both methods, the straps are nailed to suitable framing at 2" clearance. The 18' limit of supportable chimney length applies.
Note: Straps measure 17 1/2"
Product Details:
The Selkirk Interior Re-Support assembly allows for two different methods of chimney re-support.
The first method is used at the immediate section of chimney above the upper elbow of an offset. With the appropriate Fire Stop Joist Shield in place, clamp the support band around chimney and attach with 6 sheet metal screws.
The second means of support is used primarily when the immediate sections of the upper offset do not pass through a joist area and re-support is necessary. The Support Band is clamped around the chimney immediately below a Locking Band.
In both methods, the straps are nailed to suitable framing at 2" clearance. The 18' limit of supportable chimney length applies.
Note: Straps measure 17 1/2"
