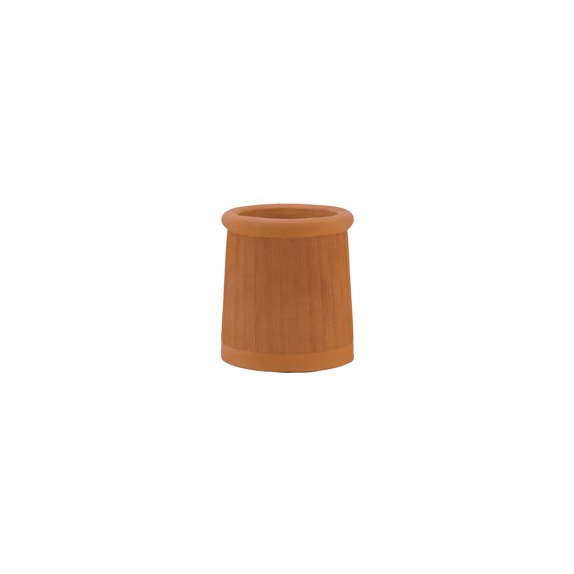

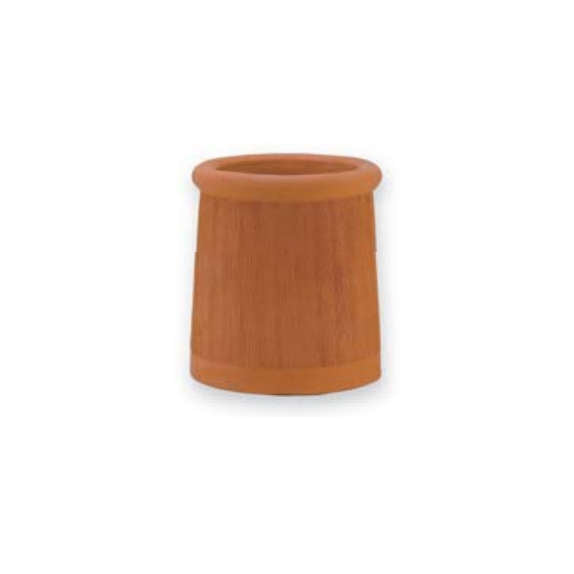

Windsor Medium Chimney Pot

Windsor Medium Chimney Pot Measurements

Height: 21 in.

Base ID: 16 in.

Base OD: 19 in.

Top Opening: 13 in. ID

Base Shape: Round

Weight: 115 lbs

Brand: Sandkuhl

Features & Glazing Information

The Windsor Medium Clay Chimney Pot comes standard in a beautiful & natural clay.

(Glazing is Temporarily Discontinued) Additionally, the Windsor Medium Chimney Pot is offered in 5 glaze colors as an optional add-on. A colored glass coating is fired on to the clay chimney pot for a beautiful finish and added durability. The glass coating is extremely durable and will not fade or peel. Typically, glaze finishing adds an extra 4-6 weeks to the order processing timeline.

• Natural Clay (standard)

• Optional Gloss Glaze Colors:  Black, Chocolate, Gray, Salt (Brown), Tan

• Premium packaging for safe transit

• Free Shipping

Important Information & Considerations

Chimney pots or tops are set in a bed of mortar on the masonry chimney cap. The base of the chimney pot need not match the dimensions of the flue liner it is being installed on top of, but should not impinge on the inside area of the flue liner - one exception to this is that round based pots may impinge at the corners of a square flue but not by more than 3/4 in.

The flue liner may extend up inside the chimney pot, or the flue liner may be flush with the top surface of the chimney cap. Additional anchoring may be used to prevent damage from tornadoes, hurricanes or earthquakes. A 1/4 – ½ -inch diameter hole may be drilled in at least two opposite sides of the chimney pot and a bar used to anchor it into the grout or the chimney walls.

Warning! Do not use decorative chimney tops on any pre-engineered or prefabricated fireplace/chimney system (sometimes referred to as zero-clearance fireplaces) without written consent from the manufacturer. Improper installation of these products in conjunction with these various metal flue systems could result in fire and/or carbon monoxide buildup resulting in property damage and/or death.

Installation

Step 1: Install plumb

Step 2: Set chimney pot in bed of mortar on top of chimney cap

Step 3: Chimney cap constructed in accordance with ASTM C1283-02 8, or approved alternate

Step 4: All anchors shall be either stainless steel or non-corrosive metal

Step 5: Mortar a minimum of 2 inch up base of chimney pot

Step 6: Flash method as required by referenced standards

There is no guarantee that the information is accurate and that the item will definitely fit the flue size listed. All flue liner sizes listed are NOMINAL dimensions and do not accurately represent the true measurements of your flue liner. Flue dimensions will vary depending upon manufacturer and age of flue liner. Be sure to accurately measure the flue liner before ordering a chimney pot to insure that the pot will fit properly.

Please note that the chimney pot base should not impinge upon the inside surface of the flue liner. Square flue liners are nominally sized using OUTSIDE dimensions. Round flue liners are nominally sized using the INSIDE dimensions.
