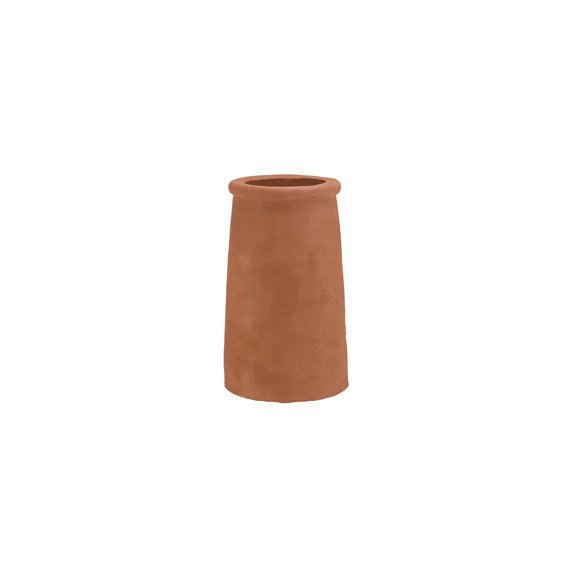

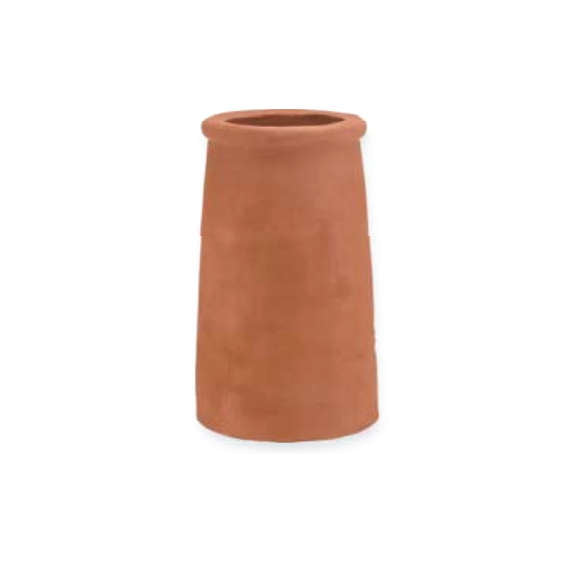

Windsor Smooth Chimney Pot

Product Images

Windsor Smooth Chimney Pot

Windsor Smooth Chimney Pot

Windsor Smooth Chimney Pot

Windsor Smooth Chimney Pot

Windsor Smooth Chimney Pot

Windsor Smooth Chimney Pot

Description:
Height: 31 in.Base ID: 16 in.Brand: Sandkuhl

Height: 31 in.

Base ID: 16 in.

Brand: Sandkuhl

As low as$1,248.00

Product Details

Sandkuhl Windsor Chimney Pot Measurements

Height: 31 in.

Base ID: 16 in.

Base OD: 19 in.

Top Opening: 12 in. ID

Base Shape: Round

Weight: 142 lbs

Brand: Sandkuhl

Windsor Smooth Chimney Pot Features & Glazing Info

The Windsor Clay Chimney Pot comes standard in a beautiful & natural clay.

Additionally, the Windsor Smooth Chimney Pot is offered in 5 glaze colors as an optional add-on. In this case, a colored glass coating is fired onto the clay chimney pot, which will not fade or peel. In summary, this adds a beautiful finish and added durability which is sure to increase curb appeal and home value.

  • Natural Clay (standard)
  • Optional Gloss Glaze Colors: Chocolate, Salt/Clear, Tan, Black, Gray
  • Premium packaging for safe transit
  • Free Shipping

Glaze finishing adds an extra 2-3 weeks to the order processing timeline.

Sizing for Your Windsor Chimney Pot

Not only does the chart below provide sizing, but also displays a guideline based on typical dimensions of flue liners and mounting. Moreover, there is no guarantee that the item will definitely fit the flue size listed, please use as a guideline & measure your clay flue tiles.

† Chimney pot should fit over the flue liner and cement directly to the cap without contacting the flue.

  • Chimney pot should fit flue provided the flue is cut flush with the cap.
Recommended Flue Sizes for Windsor Smooth Chimney Pot:
Square/Rectangular Flues: Nominal OD
8x8 - 8.5x8.5 †
8x12 - 8.5x13 †
10x10 †
12x12 †
13x13 †
13x18 †
16x16 †
Round Flues: Nominal ID
6 †
7 †
8 †
10 †
12 †
15 •

Important Information & Considerations

Additionally, all flue liner sizes listed are NOMINAL dimensions and do not accurately represent the true measurements of a flue liner. Also, flue dimensions will vary depending upon manufacturer and age of flue liner. Please note, be sure to accurately measure the flue liner before ordering a chimney pot to insure that the pot will fit properly.

Please note that the chimney pot base should not impinge upon the inside surface of the flue liner. One exception to this is that round based pots may impinge at the corners of a square flue but not by more than 3/4 in.

In addition, square flue liners are nominally sized using OUTSIDE dimensions; round flue liners are nominally sized using the INSIDE dimensions.

Note: Do Not use decorative chimney tops on any pre-engineered or prefabricated fireplace/chimney system. For example, these are often referred to as zero-clearance fireplaces. In this case, you would need written consent from the manufacturer. Most important, improper installation of these products in conjunction with various metal flue systems can cause issues. As a result, there is risk for fire and/or carbon monoxide buildup, resulting in property damage and/or death.

Product Details:

Sandkuhl Windsor Chimney Pot Measurements

Height: 31 in.

Base ID: 16 in.

Base OD: 19 in.

Top Opening: 12 in. ID

Base Shape: Round

Weight: 142 lbs

Brand: Sandkuhl

Windsor Smooth Chimney Pot Features & Glazing Info

The Windsor Clay Chimney Pot comes standard in a beautiful & natural clay.

Additionally, the Windsor Smooth Chimney Pot is offered in 5 glaze colors as an optional add-on. In this case, a colored glass coating is fired onto the clay chimney pot, which will not fade or peel. In summary, this adds a beautiful finish and added durability which is sure to increase curb appeal and home value.

  • Natural Clay (standard)
  • Optional Gloss Glaze Colors: Chocolate, Salt/Clear, Tan, Black, Gray
  • Premium packaging for safe transit
  • Free Shipping

Glaze finishing adds an extra 2-3 weeks to the order processing timeline.

Sizing for Your Windsor Chimney Pot

Not only does the chart below provide sizing, but also displays a guideline based on typical dimensions of flue liners and mounting. Moreover, there is no guarantee that the item will definitely fit the flue size listed, please use as a guideline & measure your clay flue tiles.

† Chimney pot should fit over the flue liner and cement directly to the cap without contacting the flue.

  • Chimney pot should fit flue provided the flue is cut flush with the cap.
Recommended Flue Sizes for Windsor Smooth Chimney Pot:
Square/Rectangular Flues: Nominal OD
8x8 - 8.5x8.5 †
8x12 - 8.5x13 †
10x10 †
12x12 †
13x13 †
13x18 †
16x16 †
Round Flues: Nominal ID
6 †
7 †
8 †
10 †
12 †
15 •

Important Information & Considerations

Additionally, all flue liner sizes listed are NOMINAL dimensions and do not accurately represent the true measurements of a flue liner. Also, flue dimensions will vary depending upon manufacturer and age of flue liner. Please note, be sure to accurately measure the flue liner before ordering a chimney pot to insure that the pot will fit properly.

Please note that the chimney pot base should not impinge upon the inside surface of the flue liner. One exception to this is that round based pots may impinge at the corners of a square flue but not by more than 3/4 in.

In addition, square flue liners are nominally sized using OUTSIDE dimensions; round flue liners are nominally sized using the INSIDE dimensions.

Note: Do Not use decorative chimney tops on any pre-engineered or prefabricated fireplace/chimney system. For example, these are often referred to as zero-clearance fireplaces. In this case, you would need written consent from the manufacturer. Most important, improper installation of these products in conjunction with various metal flue systems can cause issues. As a result, there is risk for fire and/or carbon monoxide buildup, resulting in property damage and/or death.
