Bolt On Single Flue Stainless Steel Chimney Cap with Designer Lid
Product Images
Stainless Steel Flue Cap with Designer Lid
Stainless Steel Flue Cap with Designer Lid
Optional Powder Coat Colors
Product Details
Need direct protection & reliable water shedding for your flue? Then look no further than this easy to install Bolt On Stainless Steel Flue Cap with Designer Lid. There needs to be 1.5" of clay tile protruding from the chimney crown to attach the chimney cap.
Additionally, use the optional Heavy-Duty Galvanized Leg Kit when flue tile does not extend above crown. Leg Kit installation video
Not only does our optional powder coating add value, but also adds beauty & curb appeal to your stainless steel flue cap. See image swatch above for color options - Read More About Powder Coating
Note: Fabrication time for this item is approximately 1-2 weeks. Due to a variety of sizes and options, this product is made custom per order and is non-returnable.
Features
- 8 in. Screen Height
- Adjusts To Fit Flue Size
- 3/4 in. Mesh Standard, 5/8 in. Mesh Available
- 8/12 Pitch Lid
- Lid has 2.5 in. Overhang
- Removable Lid
- Powder Coating Available
Stainless Steel Flue Cap Sizing:
| Size | Lid Size | Fits Flue Size |
|---|---|---|
| 9 x 9 | 14" x 14" | 8" x 8" to 9 1/2" x 9 1/2" |
| 9 x 13 | 14" x 18" | 8" x 12" to 9 1/2" x 13 1/2" |
| 9 x 18 | 14" x 23" | 8" x 17" to 9 1/2" x 18 1/2" |
| 12 x 12 | 17" x 17" | 11" x 11" to 12 1/2" x 12 1/2" |
| 13 x 13 | 18" x 18" | 12" x 12" to 13 1/2" x 13 1/2" |
| 13 x 18 | 18" x 23" | 12" x 17" to 13 1/2" x 18 1/2" |
| 18 x 18 | 23" x 23" | 17" x 17" to 18 1/2" x 18 1/2" |
Measuring for Your Stainless Steel Flue Cap
Measuring the clay flue or chimney opening is an easy thing to do before ordering. In any case, this ensures the chimney flue cap will fit properly.
For clay flue tiles, measure the length, width, and height of the tile. Moreover, for chimney openings that do not have a clay tile protruding above the crown, measure the length and width of the opening (you will need a Leg Kit for this type of installation). Then, compare these measurements to our sizing chart to find out which size cap to order.
If you have more than one flue in the chimney, you may need to consider the lid size of each cap to ensure they will fit side by side. However, if they will not fit next to each other, please see our Multi-Flue Chimney Caps.
- Outside length of clay flue tile
- Outside width of clay flue tile
- Height of clay flue tile
- Distance to neighboring flue caps
Installation
Above all, protecting your clay flue by installing our stainless steel single flue cap is simple. Moreover, follow these tips for a successful installation.
Firstly, place a bead of high-grade exterior silicone along the top of the clay flue. Then, firmly press the single flue cap over the clay flue to create a good bond. Finally, you will need to gently tighten the cone point pressure screws until they make contact with the clay flue tile. Be sure you do not overtighten.
Additionally, for installations where the chimney opening does not have a clay tile protruding above the crown, please see our Leg Kit installation video. Finally, you will put a bead of silicone where cap meets the chimney crown.
In general, should you have any questions, contact our Certified Technicians for helpful support.
Product Details:
Need direct protection & reliable water shedding for your flue? Then look no further than this easy to install Bolt On Stainless Steel Flue Cap with Designer Lid. There needs to be 1.5" of clay tile protruding from the chimney crown to attach the chimney cap.
Additionally, use the optional Heavy-Duty Galvanized Leg Kit when flue tile does not extend above crown. Leg Kit installation video
Not only does our optional powder coating add value, but also adds beauty & curb appeal to your stainless steel flue cap. See image swatch above for color options - Read More About Powder Coating
Note: Fabrication time for this item is approximately 1-2 weeks. Due to a variety of sizes and options, this product is made custom per order and is non-returnable.
Features
- 8 in. Screen Height
- Adjusts To Fit Flue Size
- 3/4 in. Mesh Standard, 5/8 in. Mesh Available
- 8/12 Pitch Lid
- Lid has 2.5 in. Overhang
- Removable Lid
- Powder Coating Available
Stainless Steel Flue Cap Sizing:
| Size | Lid Size | Fits Flue Size |
|---|---|---|
| 9 x 9 | 14" x 14" | 8" x 8" to 9 1/2" x 9 1/2" |
| 9 x 13 | 14" x 18" | 8" x 12" to 9 1/2" x 13 1/2" |
| 9 x 18 | 14" x 23" | 8" x 17" to 9 1/2" x 18 1/2" |
| 12 x 12 | 17" x 17" | 11" x 11" to 12 1/2" x 12 1/2" |
| 13 x 13 | 18" x 18" | 12" x 12" to 13 1/2" x 13 1/2" |
| 13 x 18 | 18" x 23" | 12" x 17" to 13 1/2" x 18 1/2" |
| 18 x 18 | 23" x 23" | 17" x 17" to 18 1/2" x 18 1/2" |
Measuring for Your Stainless Steel Flue Cap
Measuring the clay flue or chimney opening is an easy thing to do before ordering. In any case, this ensures the chimney flue cap will fit properly.
For clay flue tiles, measure the length, width, and height of the tile. Moreover, for chimney openings that do not have a clay tile protruding above the crown, measure the length and width of the opening (you will need a Leg Kit for this type of installation). Then, compare these measurements to our sizing chart to find out which size cap to order.
If you have more than one flue in the chimney, you may need to consider the lid size of each cap to ensure they will fit side by side. However, if they will not fit next to each other, please see our Multi-Flue Chimney Caps.
- Outside length of clay flue tile
- Outside width of clay flue tile
- Height of clay flue tile
- Distance to neighboring flue caps
Installation
Above all, protecting your clay flue by installing our stainless steel single flue cap is simple. Moreover, follow these tips for a successful installation.
Firstly, place a bead of high-grade exterior silicone along the top of the clay flue. Then, firmly press the single flue cap over the clay flue to create a good bond. Finally, you will need to gently tighten the cone point pressure screws until they make contact with the clay flue tile. Be sure you do not overtighten.
Additionally, for installations where the chimney opening does not have a clay tile protruding above the crown, please see our Leg Kit installation video. Finally, you will put a bead of silicone where cap meets the chimney crown.
In general, should you have any questions, contact our Certified Technicians for helpful support.
Customer Reviews

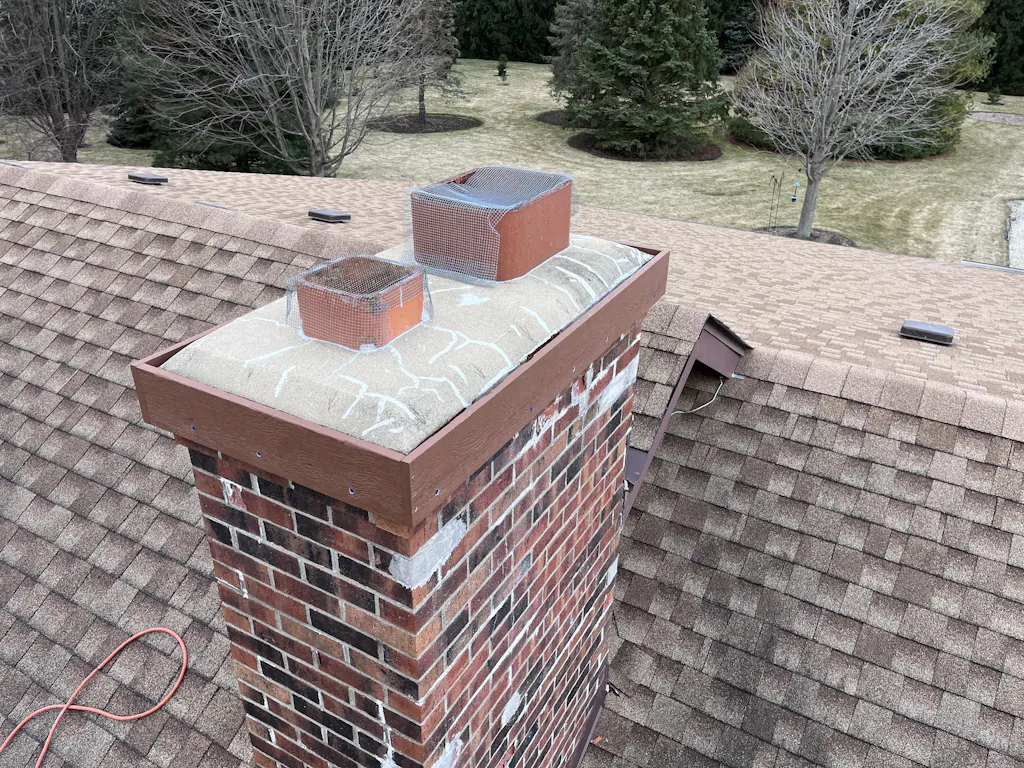

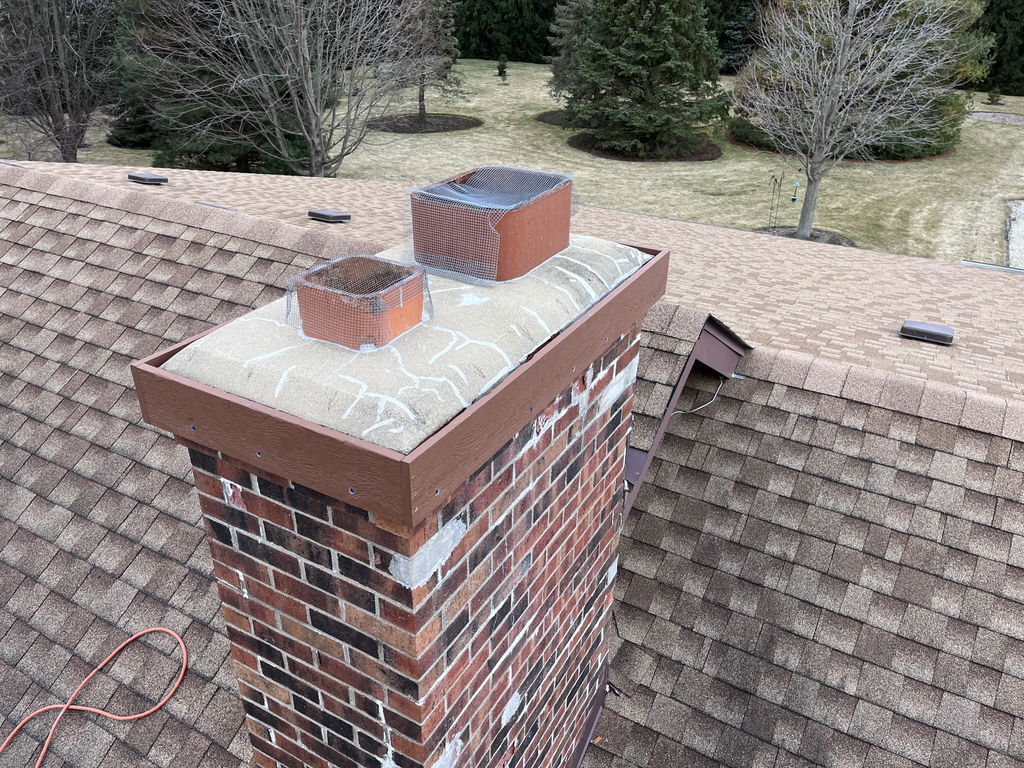

I ordered the bolt-on single flu cap after extensive internet searching. The option to paint in a number of colors was a plus and the color I chose was perfect. I was able to install the cap with little problem -- although I had to bend the flange with a pair of pliers to size it to fit my clay flu. Since it is up above the 2nd floor roof line, no one will be able to see how it has been bent to fit. I am very pleased with the results
I am very satisfied with the chimney
chase cover, and the rain caps that
Rockford Chimney supplied me with.
It was simple to install ( I have access to a boom lift) Thanks, Dave
The wrong cap was sent with the flat lid type but still very effective and easy to install with leg kit.
Refund for difference was easy to obtain and very prompt.
