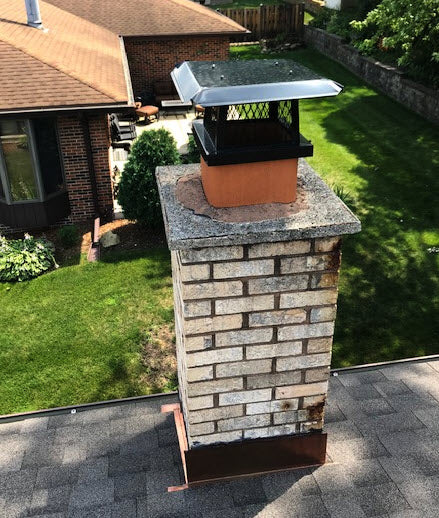

Stainless Steel Chimney Cap - Bolt On Single Flue with Flat Lid
Product Images
Stainless Steel Chimney Cap - Bolt On Single Flue with Flat Lid
Stainless Steel Chimney Cap - Bolt On Single Flue with Flat Lid
Stainless Steel Chimney Cap - Bolt On Single Flue with Flat Lid
Stainless Steel Chimney Cap - Bolt On Single Flue with Flat Lid
Product Details
Need direct protection for your flue? Then, look no further than this easy to install Bolt On Single Flue Stainless Chimney Cap with Flat Lid. You will need 1.5" of clay tile protruding from the chimney crown to attach the stainless steel chimney cap.
Additionally, add the optional Heavy-Duty Galvanized Leg Kit if the flue tile does not extend above crown. You can view our Leg Kit installation video here to learn more.

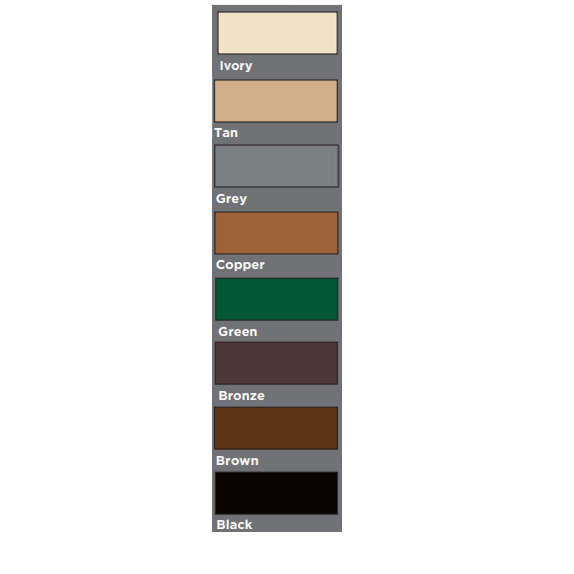

Add beauty & curb appeal to your chimney cap by adding optional powder coating. See image swatch above for color options - Read More About Powder Coating
Features
- 8 in. Screen Height
- Adjusts To Fit Flue Size
- 3/4 in. Mesh Standard
- 5/8 in. Mesh Available (Fabricated individually per order)
- Lid has 2.5 in. Overhang
- Removable Lid
- Powder Coating Available
Stainless Steel Chimney Cap Sizing:
| Size | Lid Size | Fits Flue Size |
|---|---|---|
| 9 x 9 | 16" x 16" | 6 1/2" x 6 1/2" to 9" x 9" |
| 9 x 13 | 16" x 20" | 6 1/2" x 11 1/2" to 9" x 14" |
| 9 x 18 | 16" x 25" | 6 1/2" x 16 1/2" to 9" x 19" |
| 12 x 12 | 17" x 17" | 10 1/2" x 10 1/2" to 13" x 13" |
| 13 x 13 | 20" x 20" | 11 1/2" x 11 1/2" to 14" x 14" |
| 13 x 18 | 20" x 25" | 11 1/2" x 16 1/2" to 14" x 19" |
| 18 x 18 | 25" x 25" | 16 1/2" x 16 1/2" to 18 1/2" x 18 1/2" |
Measuring for Your Stainless Steel Chimney Cap
Measuring the clay flue or chimney opening is an easy thing to do before ordering. In any case, this ensures the chimney cap will fit properly.
For clay flue tiles, measure the length, width, and height of the tile. Moreover, for chimney openings that do not have a clay tile protruding above the crown, measure the length and width of the opening (you will need a Leg Kit for this type of installation). Then, compare these measurements to our sizing chart to find out which size cap to order.
If you have more than one flue in the chimney, you may need to consider the lid size of each cap to ensure they will fit side by side. However, if they will not fit next to each other, please see our Multi-Flue Chimney Caps.
- Outside length of clay flue tile
- Outside width of clay flue tile
- Height of clay flue tile
- Distance to neighboring flue caps
Installation
Above all, protecting your clay flue by installing our stainless steel single flue cap is simple. Additionally, follow these tips for a successful installation.
Firstly, place a bead of high-grade exterior silicone along the top of the clay flue. Then, firmly press the single flue cap over the clay flue to create a good bond. Finally, you will need to gently tighten the cone point pressure screws until they make contact with the clay flue tile. Be sure you do not overtighten.
For installations where the chimney opening does not have a clay tile protruding above the crown, please see our Leg Kit installation video. Finally, you will put a bead of silicone where cap meets the chimney crown.
In general, should you have any questions, contact our Certified Technicians for helpful support.
Product Details:
Need direct protection for your flue? Then, look no further than this easy to install Bolt On Single Flue Stainless Chimney Cap with Flat Lid. You will need 1.5" of clay tile protruding from the chimney crown to attach the stainless steel chimney cap.
Additionally, add the optional Heavy-Duty Galvanized Leg Kit if the flue tile does not extend above crown. You can view our Leg Kit installation video here to learn more.
Add beauty & curb appeal to your chimney cap by adding optional powder coating. See image swatch above for color options - Read More About Powder Coating
Features
- 8 in. Screen Height
- Adjusts To Fit Flue Size
- 3/4 in. Mesh Standard
- 5/8 in. Mesh Available (Fabricated individually per order)
- Lid has 2.5 in. Overhang
- Removable Lid
- Powder Coating Available
Stainless Steel Chimney Cap Sizing:
| Size | Lid Size | Fits Flue Size |
|---|---|---|
| 9 x 9 | 16" x 16" | 6 1/2" x 6 1/2" to 9" x 9" |
| 9 x 13 | 16" x 20" | 6 1/2" x 11 1/2" to 9" x 14" |
| 9 x 18 | 16" x 25" | 6 1/2" x 16 1/2" to 9" x 19" |
| 12 x 12 | 17" x 17" | 10 1/2" x 10 1/2" to 13" x 13" |
| 13 x 13 | 20" x 20" | 11 1/2" x 11 1/2" to 14" x 14" |
| 13 x 18 | 20" x 25" | 11 1/2" x 16 1/2" to 14" x 19" |
| 18 x 18 | 25" x 25" | 16 1/2" x 16 1/2" to 18 1/2" x 18 1/2" |
Measuring for Your Stainless Steel Chimney Cap
Measuring the clay flue or chimney opening is an easy thing to do before ordering. In any case, this ensures the chimney cap will fit properly.
For clay flue tiles, measure the length, width, and height of the tile. Moreover, for chimney openings that do not have a clay tile protruding above the crown, measure the length and width of the opening (you will need a Leg Kit for this type of installation). Then, compare these measurements to our sizing chart to find out which size cap to order.
If you have more than one flue in the chimney, you may need to consider the lid size of each cap to ensure they will fit side by side. However, if they will not fit next to each other, please see our Multi-Flue Chimney Caps.
- Outside length of clay flue tile
- Outside width of clay flue tile
- Height of clay flue tile
- Distance to neighboring flue caps
Installation
Above all, protecting your clay flue by installing our stainless steel single flue cap is simple. Additionally, follow these tips for a successful installation.
Firstly, place a bead of high-grade exterior silicone along the top of the clay flue. Then, firmly press the single flue cap over the clay flue to create a good bond. Finally, you will need to gently tighten the cone point pressure screws until they make contact with the clay flue tile. Be sure you do not overtighten.
For installations where the chimney opening does not have a clay tile protruding above the crown, please see our Leg Kit installation video. Finally, you will put a bead of silicone where cap meets the chimney crown.
In general, should you have any questions, contact our Certified Technicians for helpful support.
