Bolt On Single Flue Stainless Steel Chimney Cap with Big Flat Lid
Product Images

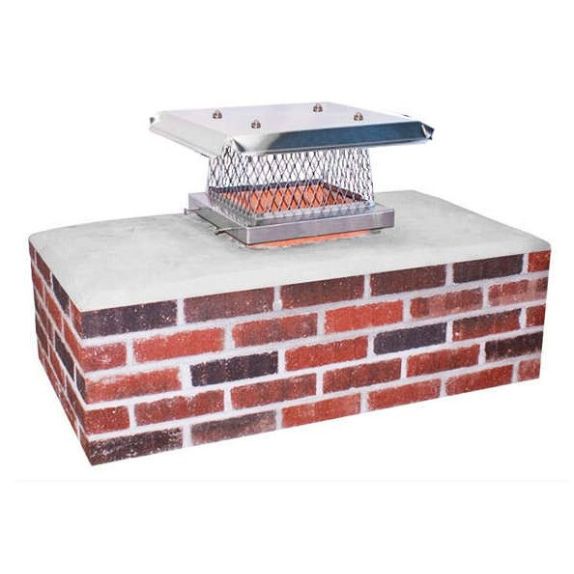

Chimney Cap with Big Lid
Optional Powder Coat Colors
Product Details
Specifications
Keep water out of your flue with this attractive Chimney Cap with Big Lid. Easy to install with secure pressure bolting screws. There will need to be 1.5" of clay tile protruding from the chimney crown to attach the chimney cap.
Additionally, use the optional Heavy-Duty Galvanized Leg Kit when flue tile does not extend above crown. Leg Kit installation video
Not only does our optional powder coating add value, but also adds beauty & curb appeal to your stainless steel flue cap. See image swatch above for color options - Read More About Powder Coating
Note: Fabrication time for this item is approximately 1-2 weeks. Due to a variety of sizes and options, this product is made custom per order and is non-returnable.
Features
- 8 in. Screen Height
- Adjusts To Flue Size
- 3/4 in. Mesh Standard, 5/8 in. Mesh Available
- BIG Lid has 4.5 in. overhang
- Large Removable Lid
- Powder Coating Available
Chimney Cap with Big Lid Sizing
| Size | Lid Size | Fits Flue Size |
|---|---|---|
| 9 x 9 | 18" x 18" | 8" x 8" to 9 1/2" x 9 1/2" |
| 9 x 13 | 18" x 22" | 8" x 12" to 9 1/2" x 13 1/2" |
| 9 x 18 | 18" x 27" | 8" x 17" to 9 1/2" x 18 1/2" |
| 12 x 12 | 21" x 21" | 11" x 11" to 12 1/2" x 12 1/2" |
| 13 x 13 | 22" x 22" | 12" x 12" to 13 1/2" x 13 1/2" |
| 13 x 18 | 22" x 27" | 12" x 17" to 13 1/2" x 18 1/2" |
| 18 x 18 | 27" x 27" | 17" x 17" to 18 1/2" x 18 1/2" |
Measuring for Your Chimney Cap with Big Lid
Measuring the clay flue or chimney opening is an easy thing to do before ordering. In any case, this ensures the chimney flue cap will fit properly.
To begin with, for clay flue tiles, measure the length, width, and height of the tile. Moreover, for chimney openings that do not have a clay tile protruding above the crown, measure the length and width of the opening (you will need a Leg Kit for this type of installation). Then, compare these measurements to our sizing chart to find out which size cap to order.
If you have more than one flue in the chimney, you may need to consider the lid size of each cap to ensure they will fit side by side. However, if they will not fit next to each other, please see our Multi-Flue Chimney Caps.
- Outside length of clay flue tile
- Outside width of clay flue tile
- Height of clay flue tile
- Distance to neighboring flue caps
Installation
Above all, protecting your clay flue by installing our stainless steel single flue cap is simple. Moreover, follow these tips for a successful installation.
Firstly, place a bead of high-grade exterior silicone along the top of the clay flue. Then, firmly press the single flue cap over the clay flue to create a good bond. Finally, you will need to gently tighten the cone point pressure screws until they make contact with the clay flue tile. Be sure you do not overtighten.
Additionally, for installations where the chimney opening does not have a clay tile protruding above the crown, please see our Leg Kit installation video. Finally, you will put a bead of silicone where cap meets the chimney crown.
In general, should you have any questions, contact our Certified Technicians for helpful support.
Product Details:
Keep water out of your flue with this attractive Chimney Cap with Big Lid. Easy to install with secure pressure bolting screws. There will need to be 1.5" of clay tile protruding from the chimney crown to attach the chimney cap.
Additionally, use the optional Heavy-Duty Galvanized Leg Kit when flue tile does not extend above crown. Leg Kit installation video
Not only does our optional powder coating add value, but also adds beauty & curb appeal to your stainless steel flue cap. See image swatch above for color options - Read More About Powder Coating
Note: Fabrication time for this item is approximately 1-2 weeks. Due to a variety of sizes and options, this product is made custom per order and is non-returnable.
Features
- 8 in. Screen Height
- Adjusts To Flue Size
- 3/4 in. Mesh Standard, 5/8 in. Mesh Available
- BIG Lid has 4.5 in. overhang
- Large Removable Lid
- Powder Coating Available
Chimney Cap with Big Lid Sizing
| Size | Lid Size | Fits Flue Size |
|---|---|---|
| 9 x 9 | 18" x 18" | 8" x 8" to 9 1/2" x 9 1/2" |
| 9 x 13 | 18" x 22" | 8" x 12" to 9 1/2" x 13 1/2" |
| 9 x 18 | 18" x 27" | 8" x 17" to 9 1/2" x 18 1/2" |
| 12 x 12 | 21" x 21" | 11" x 11" to 12 1/2" x 12 1/2" |
| 13 x 13 | 22" x 22" | 12" x 12" to 13 1/2" x 13 1/2" |
| 13 x 18 | 22" x 27" | 12" x 17" to 13 1/2" x 18 1/2" |
| 18 x 18 | 27" x 27" | 17" x 17" to 18 1/2" x 18 1/2" |
Measuring for Your Chimney Cap with Big Lid
Measuring the clay flue or chimney opening is an easy thing to do before ordering. In any case, this ensures the chimney flue cap will fit properly.
To begin with, for clay flue tiles, measure the length, width, and height of the tile. Moreover, for chimney openings that do not have a clay tile protruding above the crown, measure the length and width of the opening (you will need a Leg Kit for this type of installation). Then, compare these measurements to our sizing chart to find out which size cap to order.
If you have more than one flue in the chimney, you may need to consider the lid size of each cap to ensure they will fit side by side. However, if they will not fit next to each other, please see our Multi-Flue Chimney Caps.
- Outside length of clay flue tile
- Outside width of clay flue tile
- Height of clay flue tile
- Distance to neighboring flue caps
Installation
Above all, protecting your clay flue by installing our stainless steel single flue cap is simple. Moreover, follow these tips for a successful installation.
Firstly, place a bead of high-grade exterior silicone along the top of the clay flue. Then, firmly press the single flue cap over the clay flue to create a good bond. Finally, you will need to gently tighten the cone point pressure screws until they make contact with the clay flue tile. Be sure you do not overtighten.
Additionally, for installations where the chimney opening does not have a clay tile protruding above the crown, please see our Leg Kit installation video. Finally, you will put a bead of silicone where cap meets the chimney crown.
In general, should you have any questions, contact our Certified Technicians for helpful support.
Specifications:
