DuraTech Class A Tee Support 5" to 8"
Product Images
Product Details
Help & Documents

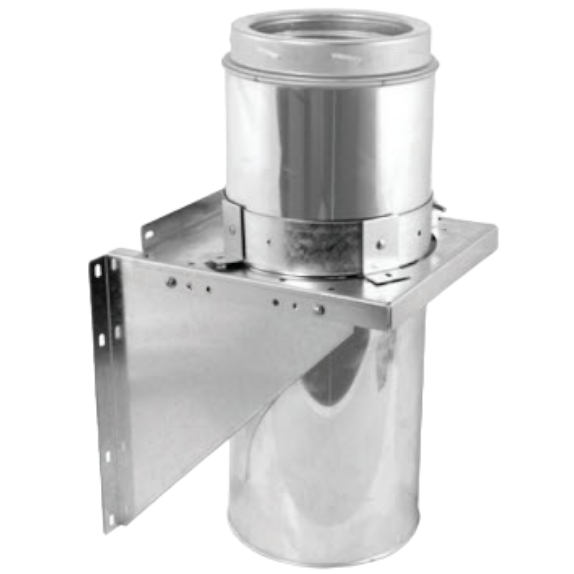

The DuraTech Class A Tee Support is used to support the Class A Tee connection (sold separately) to carry the weight of the vertical chimney pipe outside. The Class A Tee Support will mount directly to the side of the building underneath the wall thimble. The tee connection will sit in the Tee Support allowing the clean out cap of the tee to extend below the support for easy access.
The Tee Support will provide the necessary clearances that are required for the chimney pipe to combustible material. The Tee Support can adjust from 2 to 6 inches off a wall. The Tee Support is U.L listed to support up to 70 ft. of vertical chimney pipe with wall straps. The Tee Support is constructed out of Galvanized steel.
Measurement Chart:
DuraTech Class A Tee Support 5" to 8"
Size | 5" | 6" | 7" | 8" |
A | 7" | 8" | 9" | 10" |
B | 10" | 10" | 12" | 12" |
C | 11" | 11" | 13" | 13" |
D | 11.75" | 11.75" | 13.75" | 13.75" |
Product Details:
The DuraTech Class A Tee Support is used to support the Class A Tee connection (sold separately) to carry the weight of the vertical chimney pipe outside. The Class A Tee Support will mount directly to the side of the building underneath the wall thimble. The tee connection will sit in the Tee Support allowing the clean out cap of the tee to extend below the support for easy access.
The Tee Support will provide the necessary clearances that are required for the chimney pipe to combustible material. The Tee Support can adjust from 2 to 6 inches off a wall. The Tee Support is U.L listed to support up to 70 ft. of vertical chimney pipe with wall straps. The Tee Support is constructed out of Galvanized steel.
Measurement Chart:
DuraTech Class A Tee Support 5" to 8"
Size | 5" | 6" | 7" | 8" |
A | 7" | 8" | 9" | 10" |
B | 10" | 10" | 12" | 12" |
C | 11" | 11" | 13" | 13" |
D | 11.75" | 11.75" | 13.75" | 13.75" |
