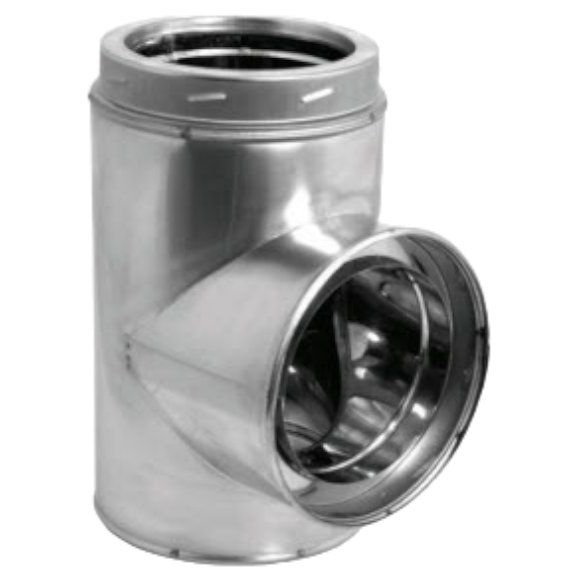

DuraTech Insulated Tee and Tee Cap 5" to 8"
Product Images
DuraTech Insulated Tee and Tee Cap 5" to 8"
Product Details
Help & Documents
The DuraTech Insulated Class A Tee and Tee Cap is used for through the wall installations to turn the horizontal pipe coming through the wall vertically for the exterior chimney stack. The Insulated Tee comes with a removable clean out cap to make cleaning and inspections a breeze. The Tee is constructed from 430 stainless steel inner pipe and a 430 stainless steel outer pipe. The Insulated Tee must be supported with the Class A Tee Support.
A section of DuraTech Class A Chimney Pipe must be connected to the horizontal snout of the tee to pass through the wall thimble extending into the home.
Measurement Chart:
DuraTech Insulated Tee and Tee Cap 5" to 8"
| Size | 5" | 6" | 7" | 8" |
| A | 5" | 6" | 7" | 8" |
| B | 7" | 8" | 9" | 10" |
| C | 5.5" | 6.125" | 6.5" | 7.125" |
| D | 6" | 6.5" | 7.5" | 7.75" |
| E | 12.625" | 13.875" | 14.25" | 15.25" |
Product Details:
The DuraTech Insulated Class A Tee and Tee Cap is used for through the wall installations to turn the horizontal pipe coming through the wall vertically for the exterior chimney stack. The Insulated Tee comes with a removable clean out cap to make cleaning and inspections a breeze. The Tee is constructed from 430 stainless steel inner pipe and a 430 stainless steel outer pipe. The Insulated Tee must be supported with the Class A Tee Support.
A section of DuraTech Class A Chimney Pipe must be connected to the horizontal snout of the tee to pass through the wall thimble extending into the home.
Measurement Chart:
DuraTech Insulated Tee and Tee Cap 5" to 8"
| Size | 5" | 6" | 7" | 8" |
| A | 5" | 6" | 7" | 8" |
| B | 7" | 8" | 9" | 10" |
| C | 5.5" | 6.125" | 6.5" | 7.125" |
| D | 6" | 6.5" | 7.5" | 7.75" |
| E | 12.625" | 13.875" | 14.25" | 15.25" |
