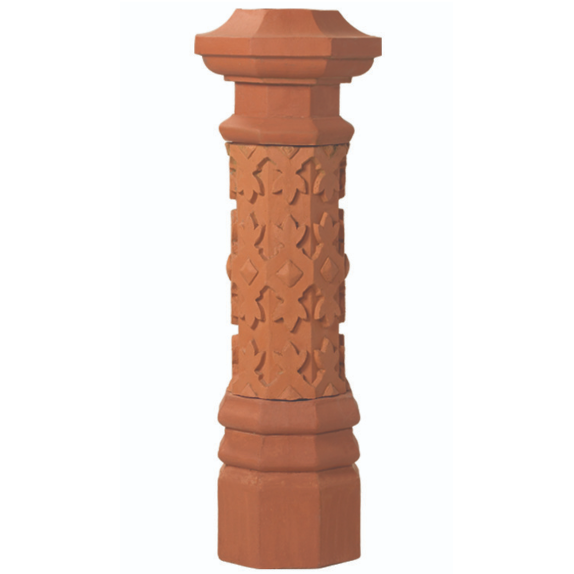

Fairmont Chimney Pot

Fairmont Chimney Pot

Fairmont Chimney Pot

Fairmont Chimney Pot

Fairmont Chimney Pot

Description:
Height: 59 in.Base ID: 12 3/4 x 12 3/4 in.Brand: Superior Clay

Height: 59 in.

Base ID: 12 3/4 x 12 3/4 in.

Brand: Superior Clay

As low as$2,112.00

As low as$2,112.00

Product Details:

Height: 59 in.

Base ID: 12 3/4 x 12 3/4 in.

Brand: Superior Clay

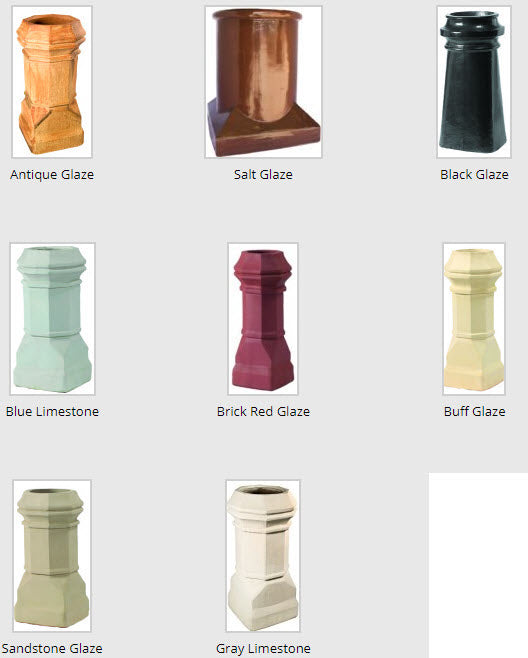

The Fairmont Chimney Pot is offered in 8 glaze colors as an optional add-on. A colored glass coating is fired onto the clay chimney pot for a beautiful finish and added durability. The glass coating is extremely durable and will not fade or peel. Typically, glaze finishing adds an extra 4-6 weeks to the order processing timeline.

Warning! Do not use decorative chimney tops on any pre-engineered or prefabricated fireplace/chimney system (sometimes referred to as zero-clearance fireplaces) without written consent from the manufacturer. Improper installation of these products in conjunction with these various metal flue systems could result in fire and/or carbon monoxide buildup resulting in property damage and/or death.

Specifications:

Features

Height: 59 in.

Weight: 290 lbs

Base ID: 12 3/4 x 12 3/4 in.

Base OD: 15 3/4 x 15 3/4 in.

Top Opening: 9 1/2 in.

Base Shape: Square

Sizing: Maximum opening width for single-face fireplaces 30"

Help & Documents:

For installation:

Step 1: Install plumb

Step 2: Set chimney pot in bed of mortar on top of chimney cap

Step 3: Chimney cap constructed in accordance with ASTM C1283-02 8, or approved alternate

Step 4: All anchors shall be either stainless steel or non-corrosive metal

Step 5: Mortar a minimum of 2 inch up base of chimney pot

Step 6: Flash method as required by referenced standards

There is no guarantee that the information is accurate and that the item will definitely fit the flue size listed. All flue liner sizes listed are NOMINAL dimensions and do not accurately represent the true measurements of a flue liner. Flue dimensions will vary depending upon manufacturer and age of flue liner. Be sure to accurately measure the flue liner before ordering a chimney pot to insure that the pot will fit properly.

Please note that the chimney pot base should not impinge upon the inside surface of the flue liner. One exception to this is that round based pots may impinge at the corners of a square flue but not by more than 3/4 in.

Square flue liners are nominally sized using OUTSIDE dimensions. Round flue liners are nominally sized using the INSIDE dimensions.
