Rectangle to Round Insert Adapter Boot
Product Images
Rectangle to Round Insert Adapter Boot
Rectangle to Round Insert Adapter Boot
Rectangle to Round Insert Adapter Boot
Rectangle to Round Insert Adapter Boot
Product Details

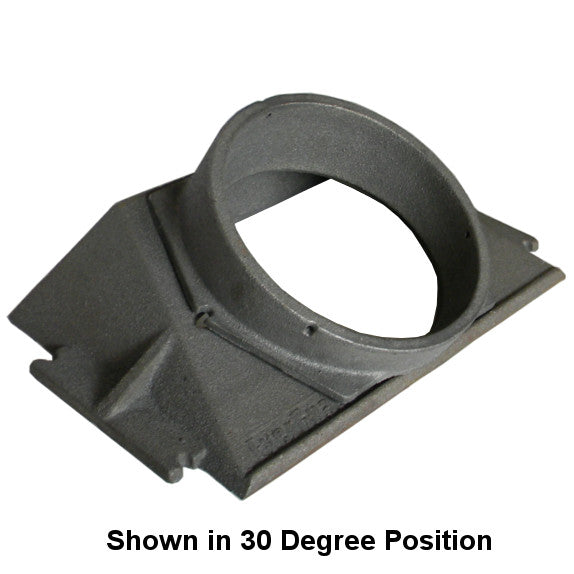

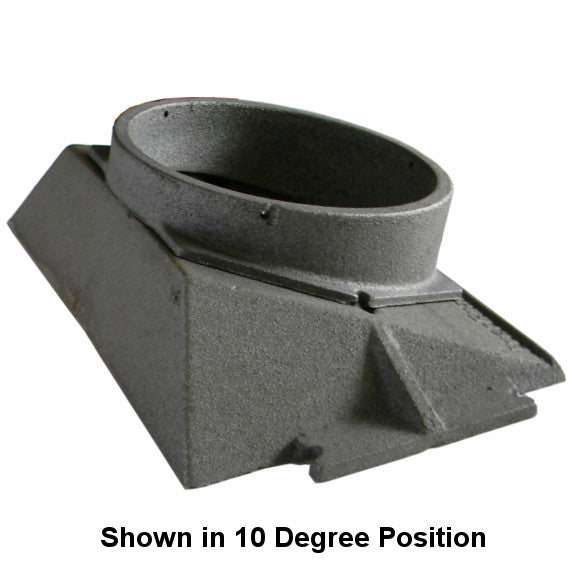

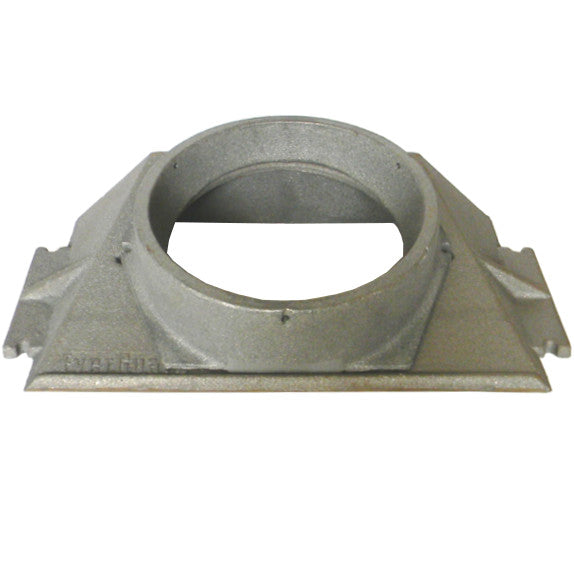

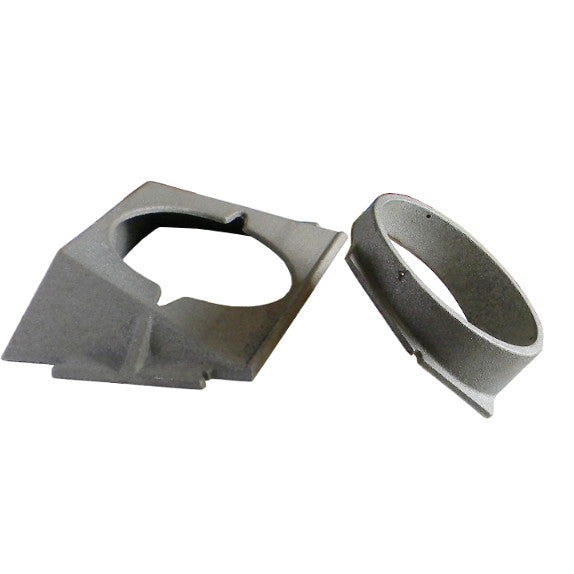

The Rectangle to Round Insert Adapter Boot allows you to make connections between round flex liners to inserts and stoves with rectangle or oval exhaust openings. The heavy gauge cast iron boot can withstand extreme temperatures. The collar is angled back toward the damper. The low profile design will clear most fireplace openings. Our adapter boot features a collar and base that can be separated to adjust to 10 degree or 30 degree tilt to accommodate most dampers. It is recommended that you use a chimney liner Appliance Connector to connect the liner to the insert boot and refractory cement to seal the connection between the boot and the stove.
Boot Dimensions
Outside Dimensions: 17.25" wide x 10.25" deep x 5.5" tall.
Inside Dimensions: 14.75" wide x 9.25" deep x 5" tall.
Wedge shaped.
Installation Information & Video
To connect the boot to your stove or insert, use the Furnace Cement (optional accessory) to seal where the Adapter Boot meets your stove / insert. There are cut-outs on the side of the boot for you to bolt it to the stove / insert (hardware to bolt to your stove is not included). This is necessary to be sure the Adapter Boot is secure during installation of your flexible chimney liner, during cleanings, etc.
Watch our Insert Adapter Boot Installation Video
Not what you're looking for? If we don't have it, our custom shop will build it, usually within 48 hours!
Product Details:
The Rectangle to Round Insert Adapter Boot allows you to make connections between round flex liners to inserts and stoves with rectangle or oval exhaust openings. The heavy gauge cast iron boot can withstand extreme temperatures. The collar is angled back toward the damper. The low profile design will clear most fireplace openings. Our adapter boot features a collar and base that can be separated to adjust to 10 degree or 30 degree tilt to accommodate most dampers. It is recommended that you use a chimney liner Appliance Connector to connect the liner to the insert boot and refractory cement to seal the connection between the boot and the stove.
Boot Dimensions
Outside Dimensions: 17.25" wide x 10.25" deep x 5.5" tall.
Inside Dimensions: 14.75" wide x 9.25" deep x 5" tall.
Wedge shaped.
Installation Information & Video
To connect the boot to your stove or insert, use the Furnace Cement (optional accessory) to seal where the Adapter Boot meets your stove / insert. There are cut-outs on the side of the boot for you to bolt it to the stove / insert (hardware to bolt to your stove is not included). This is necessary to be sure the Adapter Boot is secure during installation of your flexible chimney liner, during cleanings, etc.
Watch our Insert Adapter Boot Installation Video
Not what you're looking for? If we don't have it, our custom shop will build it, usually within 48 hours!
