Home / Rock-Vent Class A Chimney Systems / Rock-Vent Class A Chimney Pipe - 304L Inner/430 Outer

Rock-Vent Class A Chimney Pipe - 304L Inner/430 Outer

Product Images

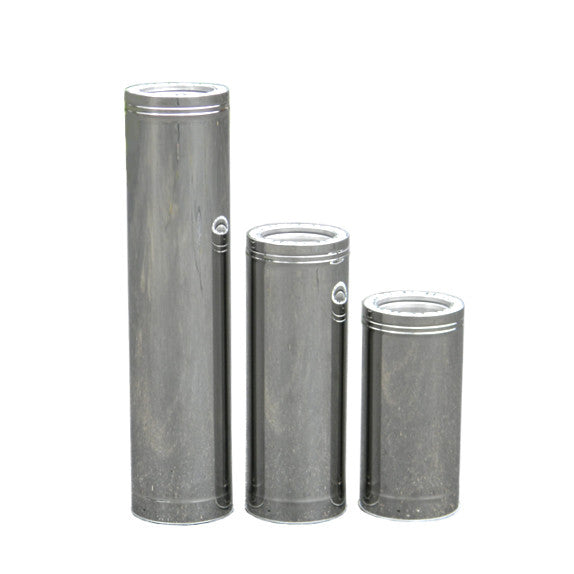

Class A Chimney Pipe

Class A Chimney Pipe

Optional Powder Coat Colors

Optional Powder Coat Colors
Description:
Features a 304L Stainless Steel Inner Wall and 430 Stainless Steel Outer Wall with .016" thickness. This is a great...

Features a 304L Stainless Steel Inner Wall and 430 Stainless Steel Outer Wall with .016" thickness. This is a great choice for venting your standard solid-fuel applications.

As low as$121.99

Product Details

Help & Documents

The Rock-Vent Class A Chimney Pipe is the premier wood chimney pipe, constructed with high quality materials and unique features. Moreover, it is backed by a lifetime transferable warranty. Listed to UL103HT and capable of withstanding extremely high temperatures up to 2100 degree F.

Rock-Vent Class A has one of the largest selections of parts and components available. Not only does this ensure you will have everything you need for the job, but even for the most complex venting systems.

Applications for Wood Class A Chimney Pipe

Rock-Vent Chimney Pipe is constructed with 304L Stainless Steel Inner Wall and 430 Stainless Steel Outer Wall with .016" thickness. Most important, the 1.25" thick insulation makes the Rock-Vent Class A Chimney Pipe one of the thickest insulated chimney pipes in the industry. This is a great choice for venting your standard solid-fuel applications such as wood stoves, zero clearance factory built fireplaces, wood burning maple syrup evaporators, and more.

No masonry chimney? No Problem. Class A Chimney Pipe Wood Chimney Pipe features a 2" clearance from combustible material. For example, use Class A chimney pipe when passing through a combustible wall, ceiling, or inside a wooden chimney chase. The pipes connect together with a male/female connection. Hardware included to attach pipe sections together. Note: Pipe overlap for Rock-Vent Class A pipe is 1.5 inches.

Not Burning Wood? Rock-Vent Class A Chimney Pipe is also available with a 316L inner pipe for added corrosion resistance venting oil, gas, and coal burning appliances.

For ordering multiple sections of pipe, try our Pipe Length Calculator. Powder Coating Available, please call for a quote - Read More About Powder Coating.

Features:

  • UL Listed UL103HT & ULC S629
  • 304L stainless steel inner wall pipe - Wood Chimney Pipe
  • 430 stainless steel outer casing
  • Attractive mirror finish
  • Warranty included
  • Manufactured in the USA
  • Superior packaging virtually eliminates shipping damage
  • Not sold through 'big box stores'
  • Diameters: 6" I.D. has 8.5" O.D., 8" I.D. has 10.5" O.D.
  • Compatible with Rock-Vent, Ventis, Champion, and Nexvent Class A chimney pipe

Installation Instructions:

Rock-Vent Class A Installation Instructions

Helpful Videos & Articles:

Installing through a flat ceiling? Watch How to install chimney pipe through a Flat Ceiling.

Keep in mind, by code you will need to follow chimney height requirements when exiting the roof. Read about the 10-Foot/3-Foot/2-Foot chimney height rule on our blog post. As always, please contact us with any questions on planning your installation.

Product Details:

The Rock-Vent Class A Chimney Pipe is the premier wood chimney pipe, constructed with high quality materials and unique features. Moreover, it is backed by a lifetime transferable warranty. Listed to UL103HT and capable of withstanding extremely high temperatures up to 2100 degree F.

Rock-Vent Class A has one of the largest selections of parts and components available. Not only does this ensure you will have everything you need for the job, but even for the most complex venting systems.

Applications for Wood Class A Chimney Pipe

Rock-Vent Chimney Pipe is constructed with 304L Stainless Steel Inner Wall and 430 Stainless Steel Outer Wall with .016" thickness. Most important, the 1.25" thick insulation makes the Rock-Vent Class A Chimney Pipe one of the thickest insulated chimney pipes in the industry. This is a great choice for venting your standard solid-fuel applications such as wood stoves, zero clearance factory built fireplaces, wood burning maple syrup evaporators, and more.

No masonry chimney? No Problem. Class A Chimney Pipe Wood Chimney Pipe features a 2" clearance from combustible material. For example, use Class A chimney pipe when passing through a combustible wall, ceiling, or inside a wooden chimney chase. The pipes connect together with a male/female connection. Hardware included to attach pipe sections together. Note: Pipe overlap for Rock-Vent Class A pipe is 1.5 inches.

Not Burning Wood? Rock-Vent Class A Chimney Pipe is also available with a 316L inner pipe for added corrosion resistance venting oil, gas, and coal burning appliances.

For ordering multiple sections of pipe, try our Pipe Length Calculator. Powder Coating Available, please call for a quote - Read More About Powder Coating.

Features:

  • UL Listed UL103HT & ULC S629
  • 304L stainless steel inner wall pipe - Wood Chimney Pipe
  • 430 stainless steel outer casing
  • Attractive mirror finish
  • Warranty included
  • Manufactured in the USA
  • Superior packaging virtually eliminates shipping damage
  • Not sold through 'big box stores'
  • Diameters: 6" I.D. has 8.5" O.D., 8" I.D. has 10.5" O.D.
  • Compatible with Rock-Vent, Ventis, Champion, and Nexvent Class A chimney pipe

Help & Documents:

Installation Instructions:

Rock-Vent Class A Installation Instructions

Helpful Videos & Articles:

Installing through a flat ceiling? Watch How to install chimney pipe through a Flat Ceiling.

Keep in mind, by code you will need to follow chimney height requirements when exiting the roof. Read about the 10-Foot/3-Foot/2-Foot chimney height rule on our blog post. As always, please contact us with any questions on planning your installation.
