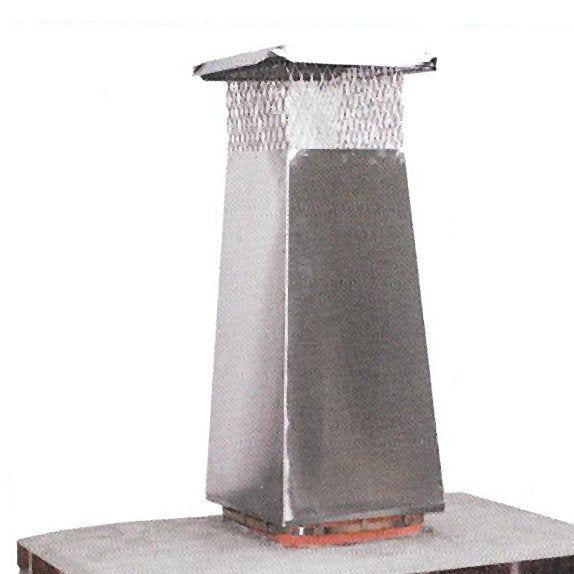

Specialty Chimney Flue Extension with Flat Lid
Product Images

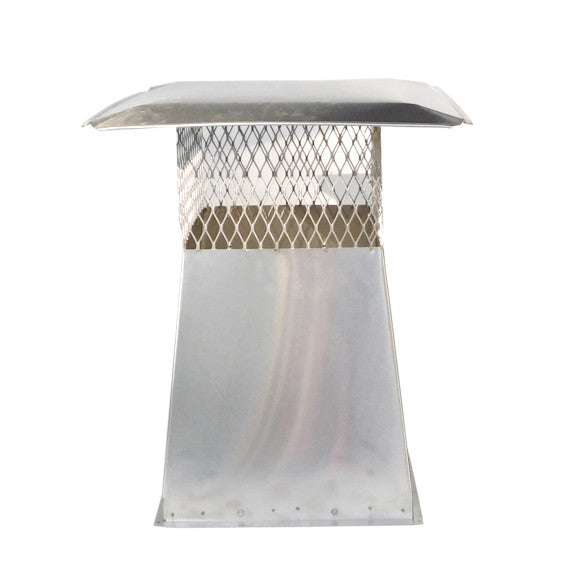

Chimney Flue Extension
Chimney Flue Extension
Powder Coated Chimney Flue Extension
Powder Coat Options
Chimney Flue Extension Powder Coated
Product Details
Specifications
Increase height and draft with our Specialty Chimney Flue Extension. Securely fastened to the uppermost clay liner, these caps can also increase the vertical distance among flues in a multi-flue chimney, reducing the likelihood of smoke being drawn into a downstairs flue.
- 22" Flue Extension increases height by 1 foot
- 34" Flue Extension increases height by 2 feet
Add beauty & curb appeal to your chimney cap by adding optional powder coating. See image swatch above for color options - Read More About Powder Coating
Fabrication time is currently 2-4 weeks due to item popularity. Powder coating adds 1 week to the timeline (and is worth the wait!). Due to a variety of sizes and options, each Specialty Flue Extension is made custom per order and is non-returnable.
The Chimney Flue Extension is designed to mount to chimney tile. It can be converted to a Crown Mount by adding a Crown Mount Adapter. You will need this if there is no existing flue tile extending from the chimney top or the flue tile is too short. Note: Must choose "Bolt On" style Specialty Flue Extension with the Crown Mount Adapter.
Chimney Flue Extension Sizing:
| Flue Extension Size | Fits Clay Tile Length | Fits Clay Tile Width |
|---|---|---|
| 8 x 8 | 7" to 9.25" | 7" to 9.25" |
| 8 x 13 | 7" to 9.25" | 11" to 13.5" |
| 13 x 13 | 11" to 13.5" | 11" to 13.5" |
| 13 x 18 | 11" to 13.5" | 16" to 18.25" |
Measuring for Your Chimney Flue Extension
Measuring the clay flue or chimney opening is an easy thing to do before ordering. In any case, this ensures the flue extension will fit properly.
For clay flue tiles, measure the length, width, and height of the tile. Moreover, for chimney openings that do not have a clay tile protruding above the crown, measure the length and width of the opening (you will need a Crown Mount Adapter for this type of installation). Then, compare these measurements to our sizing chart to find out which size cap to order.
If you need more height than this cap can provide, please consider installing an insulated chimney pipe kit to increase the height of your masonry chimney.
- Outside length of clay flue tile
- Outside width of clay flue tile
- Height of clay flue tile
Installation
Above all, protecting your clay flue and increasing chimney height by installing our stainless steel chimney flue extension is simple. Additionally, follow these tips for a successful installation.
Firstly, place a bead of high-grade exterior silicone along the top of the clay flue. Then, firmly press the single flue cap over the clay flue to create a good bond. Finally, for the Bolt On mounting type, you will need to gently tighten the cone point pressure screws until they make contact with the clay flue tile. Be sure you do not overtighten.
For Clamp On mounting type installations, simply tighten the clamp around the outside of the clay tile. Do not select the clamp on mounting type if using a Crown Mount Adapter.
For installations where the chimney opening does not have a clay tile protruding above the crown, you will need to install the Crown Mount Adapter first. Finally, you can put a bead of silicone where extension cap meets the chimney crown.
In general, should you have any questions, contact our Certified Technicians for helpful support.
Product Details:
Increase height and draft with our Specialty Chimney Flue Extension. Securely fastened to the uppermost clay liner, these caps can also increase the vertical distance among flues in a multi-flue chimney, reducing the likelihood of smoke being drawn into a downstairs flue.
- 22" Flue Extension increases height by 1 foot
- 34" Flue Extension increases height by 2 feet
Add beauty & curb appeal to your chimney cap by adding optional powder coating. See image swatch above for color options - Read More About Powder Coating
Fabrication time is currently 2-4 weeks due to item popularity. Powder coating adds 1 week to the timeline (and is worth the wait!). Due to a variety of sizes and options, each Specialty Flue Extension is made custom per order and is non-returnable.
The Chimney Flue Extension is designed to mount to chimney tile. It can be converted to a Crown Mount by adding a Crown Mount Adapter. You will need this if there is no existing flue tile extending from the chimney top or the flue tile is too short. Note: Must choose "Bolt On" style Specialty Flue Extension with the Crown Mount Adapter.
Chimney Flue Extension Sizing:
| Flue Extension Size | Fits Clay Tile Length | Fits Clay Tile Width |
|---|---|---|
| 8 x 8 | 7" to 9.25" | 7" to 9.25" |
| 8 x 13 | 7" to 9.25" | 11" to 13.5" |
| 13 x 13 | 11" to 13.5" | 11" to 13.5" |
| 13 x 18 | 11" to 13.5" | 16" to 18.25" |
Measuring for Your Chimney Flue Extension
Measuring the clay flue or chimney opening is an easy thing to do before ordering. In any case, this ensures the flue extension will fit properly.
For clay flue tiles, measure the length, width, and height of the tile. Moreover, for chimney openings that do not have a clay tile protruding above the crown, measure the length and width of the opening (you will need a Crown Mount Adapter for this type of installation). Then, compare these measurements to our sizing chart to find out which size cap to order.
If you need more height than this cap can provide, please consider installing an insulated chimney pipe kit to increase the height of your masonry chimney.
- Outside length of clay flue tile
- Outside width of clay flue tile
- Height of clay flue tile
Installation
Above all, protecting your clay flue and increasing chimney height by installing our stainless steel chimney flue extension is simple. Additionally, follow these tips for a successful installation.
Firstly, place a bead of high-grade exterior silicone along the top of the clay flue. Then, firmly press the single flue cap over the clay flue to create a good bond. Finally, for the Bolt On mounting type, you will need to gently tighten the cone point pressure screws until they make contact with the clay flue tile. Be sure you do not overtighten.
For Clamp On mounting type installations, simply tighten the clamp around the outside of the clay tile. Do not select the clamp on mounting type if using a Crown Mount Adapter.
For installations where the chimney opening does not have a clay tile protruding above the crown, you will need to install the Crown Mount Adapter first. Finally, you can put a bead of silicone where extension cap meets the chimney crown.
In general, should you have any questions, contact our Certified Technicians for helpful support.
Specifications:
Customer Reviews

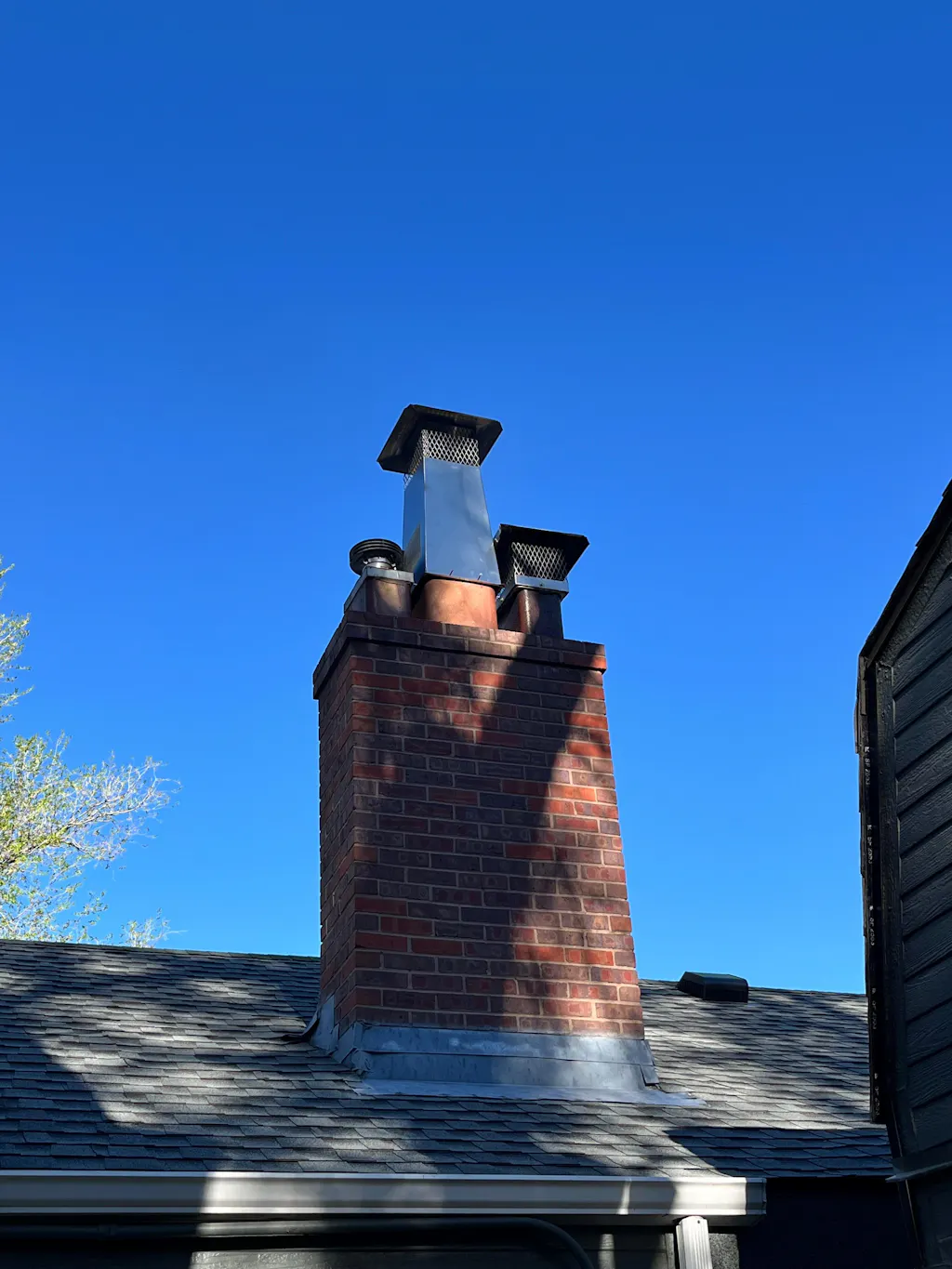

The piece seems well built and was easy to install. We put it to use that night and did not have any issues with back drafting our shared chimney like we had been having.

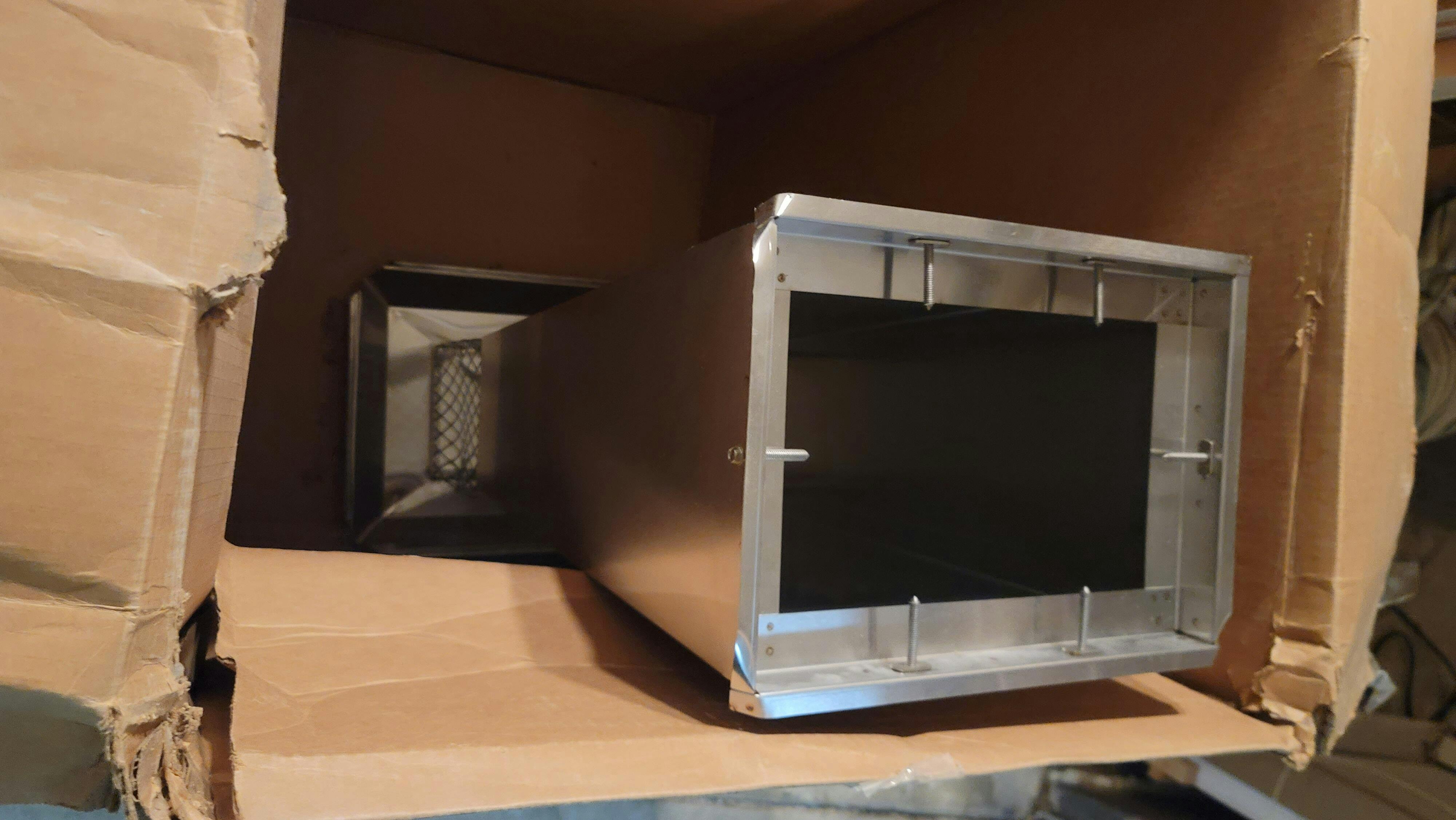

My one complaint would be packaging. The cap was stuck into a giant box with zero additional packing material, so it suffered some bent corners to the bottom flange and dents to the mesh at the top. They were purely cosmetic and easily take care of, but a little effort in packaging would go a long way for that.
Overall very happy with the piece
I can’t believe I waited to try this solution to my fireplace problems. The fireplace on our second floor would always blow smoke into the room when the wind blew. It caused us to leave the glass doors closed to protect the room and our lungs. Since installing the Chimney Flue Extension the fire has been drawing perfectly, giving us more heat but no smoke!
Highly recommend Rockford chimney for all your needs, they’re quick to respond and handle issues
This is a well built product and installs and works as advertised. No more draft problems with our fireplace!! I will be purchasing an additional flue extension for our downstairs fireplace.
Fit as advertised and delivered on schedule.
