Stainless Steel Chimney Caps - Knock-Down Multi-Flue Cap
Product Images

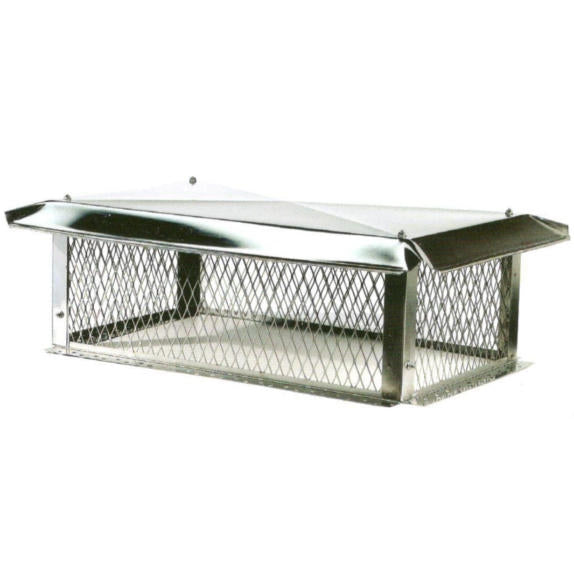

Stainless Steel Knock-Down Multi-Flue Cap
Stainless Steel Knock-Down Multi-Flue Cap
Powder Coating Color Options
Stainless Steel Knock-Down Multi-Flue Cap
Product Details
Specifications
The Knock-Down Multi-Flue Stainless Steel Chimney Caps are the ultimate solution for chimney protection. Engineered with precision and durability in mind, this cap provides protection against rain, snow, critters, debris, and chimney deterioration. Crafted for easy installation, it features a top mount or outside mount design that effortlessly attaches to the chimney crown or brick using chimney adhesive and masonry screws (included).

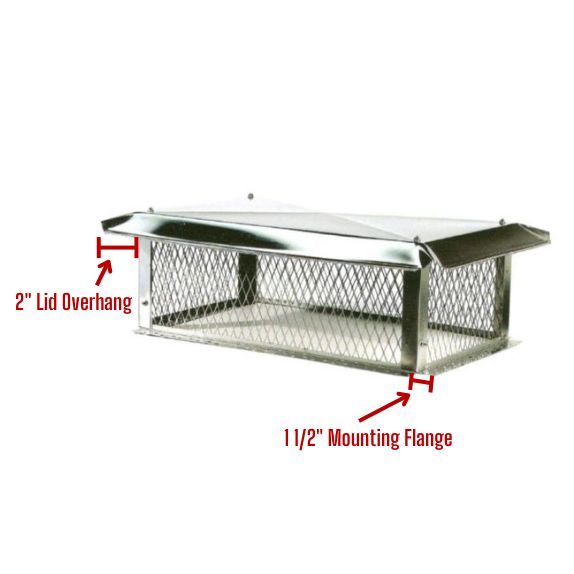

Removable lid for easy access to the chimney flues, so ultimately maintenance is a breeze. Features a lid overhang of 2" on all sides of the 3/4"mesh screen.
Provide your measurements that you would like the mesh screen fabricated to for a perfect fit.
Installation
With a 1.5" wide hinged mounting flange, you will be able to easily install the Stainless Steel Knockdown Multi-Flue Cap. The bottom hinged mounting flange provides flexibility. The bottom mounting hinge allows you to position the flange on either the outside or inside of the mesh screen.

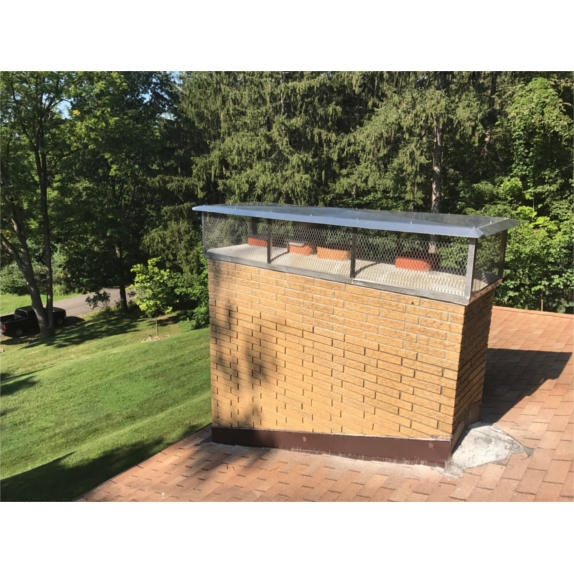

To install, center the chimney cap onto the crown. Mark the hole positions in the base, typically you will need 4 - 8 screws for an average sized cap. Lift the bottom mounting flange and add a bead of silicone underneath, firmly press flange into the silicone. Drill holes in the marked positions and drive the masonry screws into the crown.
Please note, the top lid flange must be installed with the lid flange pointing inside the mesh screen.
Why Choose Our Stainless Steel Chimney Cap
Choose reliable protection and longevity with our Stainless Steel Knockdown Multi-Flue Cap. Fabricated from high-quality 304 stainless steel. In addition, the stainless steel is 24 gauge thickness while the mesh is 18 gauge thickness. Our stainless steel chimney caps are solid and built to last. Backed by a lifetime warranty and proudly made in the USA, you can trust in the superior craftsmanship and durability of our chimney caps.
Add beauty & curb appeal to your chimney cap by adding optional powder coating. See image swatch above for color options - Read More About Powder Coating
Measuring for Your Stainless Steel Chimney Cap
Measure your chimney to ensure a customized fit with these tips. Provide your exact measurements and we'll fabricate the mesh screen accordingly. In other words, the measurements you enter will be the size the mesh screen is fabricated to.
It is recommended that the height of the mesh screen be 6" higher than the tallest flue that extends above the chimney for proper ventilation.
For outside mount installations, please add at least 1/4" to the exact length and width measurements for a snug fit.
Note: Stainless Steel Knock-Down Multi-Flue Caps are made custom per order and are non-returnable. With a fabrication time of 1-2 weeks (plus an additional week for powder coating, if desired), your chimney protection solution is just around the corner.
Here are the things you need to measure when figuring out your stainless steel chimney cap dimensions:
- Overall length for mesh screen
- Overall width for mesh screen
- Screen height (should be at least 6" higher than the tallest flue)
- Measuring Form (Printable PDF)
Product Details:
The Knock-Down Multi-Flue Stainless Steel Chimney Caps are the ultimate solution for chimney protection. Engineered with precision and durability in mind, this cap provides protection against rain, snow, critters, debris, and chimney deterioration. Crafted for easy installation, it features a top mount or outside mount design that effortlessly attaches to the chimney crown or brick using chimney adhesive and masonry screws (included).
Removable lid for easy access to the chimney flues, so ultimately maintenance is a breeze. Features a lid overhang of 2" on all sides of the 3/4"mesh screen.
Provide your measurements that you would like the mesh screen fabricated to for a perfect fit.
Installation
With a 1.5" wide hinged mounting flange, you will be able to easily install the Stainless Steel Knockdown Multi-Flue Cap. The bottom hinged mounting flange provides flexibility. The bottom mounting hinge allows you to position the flange on either the outside or inside of the mesh screen.
To install, center the chimney cap onto the crown. Mark the hole positions in the base, typically you will need 4 - 8 screws for an average sized cap. Lift the bottom mounting flange and add a bead of silicone underneath, firmly press flange into the silicone. Drill holes in the marked positions and drive the masonry screws into the crown.
Please note, the top lid flange must be installed with the lid flange pointing inside the mesh screen.
Why Choose Our Stainless Steel Chimney Cap
Choose reliable protection and longevity with our Stainless Steel Knockdown Multi-Flue Cap. Fabricated from high-quality 304 stainless steel. In addition, the stainless steel is 24 gauge thickness while the mesh is 18 gauge thickness. Our stainless steel chimney caps are solid and built to last. Backed by a lifetime warranty and proudly made in the USA, you can trust in the superior craftsmanship and durability of our chimney caps.
Add beauty & curb appeal to your chimney cap by adding optional powder coating. See image swatch above for color options - Read More About Powder Coating
Measuring for Your Stainless Steel Chimney Cap
Measure your chimney to ensure a customized fit with these tips. Provide your exact measurements and we'll fabricate the mesh screen accordingly. In other words, the measurements you enter will be the size the mesh screen is fabricated to.
It is recommended that the height of the mesh screen be 6" higher than the tallest flue that extends above the chimney for proper ventilation.
For outside mount installations, please add at least 1/4" to the exact length and width measurements for a snug fit.
Note: Stainless Steel Knock-Down Multi-Flue Caps are made custom per order and are non-returnable. With a fabrication time of 1-2 weeks (plus an additional week for powder coating, if desired), your chimney protection solution is just around the corner.
Here are the things you need to measure when figuring out your stainless steel chimney cap dimensions:
- Overall length for mesh screen
- Overall width for mesh screen
- Screen height (should be at least 6" higher than the tallest flue)
- Measuring Form (Printable PDF)
Specifications:
Excellent.
Quickly received, fit as requested. Easy to install.

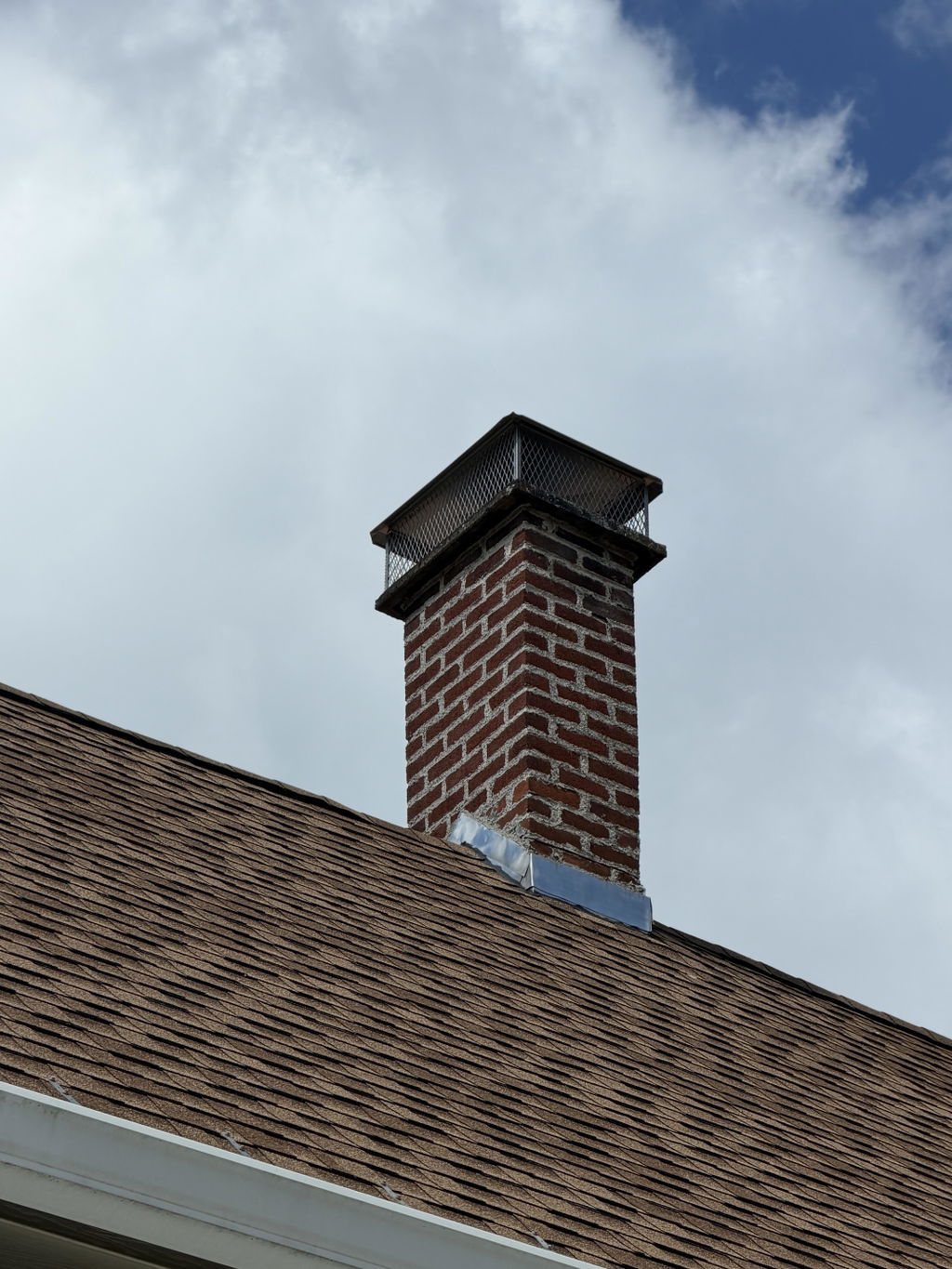

We called Rockford and gave Eric our Chimney measurements and he the Beautiful Stainless steel Chimney Cap to us down here in East Texas in a little over a week. I put it up the next day, took abkut 2 hours by myself and it was my first time installing a Chimney Cap. Ita looks beautiful and works well. Hi quality
The are the only company I have found that does fully customizable caps at a fair price. Very happy with the end result! As a masonry contractor, I will be back for more!
This chimney cap is excellent quality and looks nice. We were happy when we opened the boxes and saw the custom size that we had ordered. We were also impressed that they had provided the correct drill bit and the necessary caulk. The drilling was simple and assembly also easy. Most impressive, though, was their response time and care when I emailed with a question during installation. I thought I’d need to delay my completion by a day or two (assuming a longer response time), but they quickly replied to my email with an interest in solving the problem. They then continued to be helpful, and quickly responsive, until the problem was resolved. We recommend their product and the company!
