Stainless Steel Multi-Flue Cap with Hip and Ridge Lid, Top Mount

Product Images

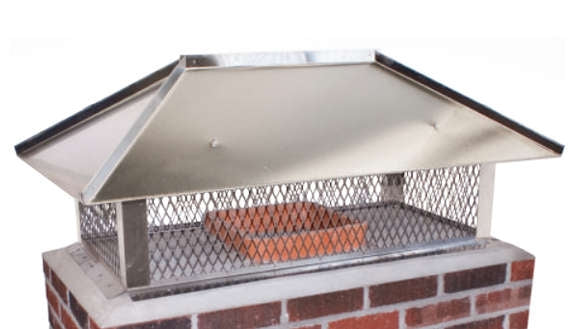

Top Mount Chimney Cap with Hip and Ridge Lid

Top Mount Chimney Cap with Hip and Ridge Lid

Example Installation

Example Installation

Powder Coat Color Options

Powder Coat Color Options

Top Mount Chimney Cap with Hip and Ridge Lid

Top Mount Chimney Cap with Hip and Ridge Lid

Description:
The Top Mount, Hip & Ridge Lid multi flue cap is made per order for the perfect fit. Features 2"...

The Top Mount, Hip & Ridge Lid multi flue cap is made per order for the perfect fit. Features 2" overhang, 3/4" mesh, 6/12 lid pitch, self-locking serrated flange nuts, removable lid, and easily adjusting mounting flanges.

As low as$1.00

Product Details

Specifications

Enhance the appeal and protection of your chimney with our Top Mount Chimney Cap. The Top Mount with Hip and Ridge Lid Multi-Flue Cap is constructed from 304L Stainless Steel and provides a durable, decorative style. Add charm and long-lasting defense against critters, rain, snow, debris, and deterioration.

The Hip and Ridge lid features a 6/12 pitch and provides a 2" lid overhang over the sides of the 3/4" mesh screen. The lid of the cap is removable for easy access during cleanings and maintenance.

Installation

The Top Mount Chimney Cap design easily attaches to the top of the chimney crown or brick with chimney adhesive and masonry screws (included). Features a hinged mounting flange for flexibility during installation. The 1.5" wide hinged mounting flange allows you to position the flange on either the outside or inside of the mesh screen.

To install, center the chimney cap onto the crown. Mark the hole positions in the base, typically you will need 4 - 8 screws for an average sized cap. Lift the mounting flange and add a bead of silicone underneath, firmly press flange into the silicone. Drill holes in the marked positions and drive the masonry screws into the crown.

Provide the measurements that you would like the mesh screen fabricated to for a perfect fitting Top Mount Chimney Cap.

Why Choose Our Top Mount Chimney Cap

Ordering and installing our Top Mount Chimney Cap with Hip and Ridge Lid is a hassle-free process. Crafted from 304L stainless steel and backed by a lifetime warranty against rust or defects. The corner reinforcements deliver unmatched rigidity. The pitched Hip and Ridge Lid is ideal for homeowners concerned about snow loads and curb appeal.

Add beauty & charm to your chimney cap by adding optional powder coating. See image swatch above for color options - Read More About Powder Coating

Measuring for Your Top Mount Chimney Cap

Measure your chimney to ensure a custom fit with our measuring information. Provide your measurements and we will fabricate the mesh screen accordingly. The measurements you enter will be the size the mesh screen is fabricated to. Then, the 1.5" mounting flange will be added.

It is recommended that the height of the mesh screen be 6" higher than the tallest flue tile. In order to have proper ventilation, there needs to be adequate room for the exhaust to exit. For example, if the tallest clay flue is 6", then you would need to order a screen height of at least 12".

For outside mount installations, please add at least 1/4" to the exact length and width measurements for a snug fit.

Note: Top Mount Chimney Caps are made custom per order and are non-returnable. With a fabrication time of 2-3 weeks (plus an additional week for powder coating, if desired), your chimney protection solution is just around the corner.

Here are the things you need to measure when figuring out your Top Mount Chimney Cap dimensions:

  • Overall length for mesh screen
  • Overall width for mesh screen
  • Screen height (should be at least 6" higher than the tallest flue)
  • Measuring Form (Printable PDF)

Features

  • 2" Lid Overhang
  • 3/4" Mesh
  • 6/12 Lid Pitch
  • Corner Reinforcement Braces
  • Self-Locking Serrated Flange Nuts
  • Removable Lid
  • Easily Adjusting Mounting Flanges
  • 24 Gauge Stainless Steel
  • Powder coating option available (see color swatch above)

Product Details:

Enhance the appeal and protection of your chimney with our Top Mount Chimney Cap. The Top Mount with Hip and Ridge Lid Multi-Flue Cap is constructed from 304L Stainless Steel and provides a durable, decorative style. Add charm and long-lasting defense against critters, rain, snow, debris, and deterioration.

The Hip and Ridge lid features a 6/12 pitch and provides a 2" lid overhang over the sides of the 3/4" mesh screen. The lid of the cap is removable for easy access during cleanings and maintenance.

Installation

The Top Mount Chimney Cap design easily attaches to the top of the chimney crown or brick with chimney adhesive and masonry screws (included). Features a hinged mounting flange for flexibility during installation. The 1.5" wide hinged mounting flange allows you to position the flange on either the outside or inside of the mesh screen.

To install, center the chimney cap onto the crown. Mark the hole positions in the base, typically you will need 4 - 8 screws for an average sized cap. Lift the mounting flange and add a bead of silicone underneath, firmly press flange into the silicone. Drill holes in the marked positions and drive the masonry screws into the crown.

Provide the measurements that you would like the mesh screen fabricated to for a perfect fitting Top Mount Chimney Cap.

Why Choose Our Top Mount Chimney Cap

Ordering and installing our Top Mount Chimney Cap with Hip and Ridge Lid is a hassle-free process. Crafted from 304L stainless steel and backed by a lifetime warranty against rust or defects. The corner reinforcements deliver unmatched rigidity. The pitched Hip and Ridge Lid is ideal for homeowners concerned about snow loads and curb appeal.

Add beauty & charm to your chimney cap by adding optional powder coating. See image swatch above for color options - Read More About Powder Coating

Measuring for Your Top Mount Chimney Cap

Measure your chimney to ensure a custom fit with our measuring information. Provide your measurements and we will fabricate the mesh screen accordingly. The measurements you enter will be the size the mesh screen is fabricated to. Then, the 1.5" mounting flange will be added.

It is recommended that the height of the mesh screen be 6" higher than the tallest flue tile. In order to have proper ventilation, there needs to be adequate room for the exhaust to exit. For example, if the tallest clay flue is 6", then you would need to order a screen height of at least 12".

For outside mount installations, please add at least 1/4" to the exact length and width measurements for a snug fit.

Note: Top Mount Chimney Caps are made custom per order and are non-returnable. With a fabrication time of 2-3 weeks (plus an additional week for powder coating, if desired), your chimney protection solution is just around the corner.

Here are the things you need to measure when figuring out your Top Mount Chimney Cap dimensions:

  • Overall length for mesh screen
  • Overall width for mesh screen
  • Screen height (should be at least 6" higher than the tallest flue)
  • Measuring Form (Printable PDF)

Specifications:

Features

  • 2" Lid Overhang
  • 3/4" Mesh
  • 6/12 Lid Pitch
  • Corner Reinforcement Braces
  • Self-Locking Serrated Flange Nuts
  • Removable Lid
  • Easily Adjusting Mounting Flanges
  • 24 Gauge Stainless Steel
  • Powder coating option available (see color swatch above)
