Product Details:
Approx. Heating Area: 500 - 1,500 sq. ft.
Max Output: 55,000 BTU/h
Starting at $5399

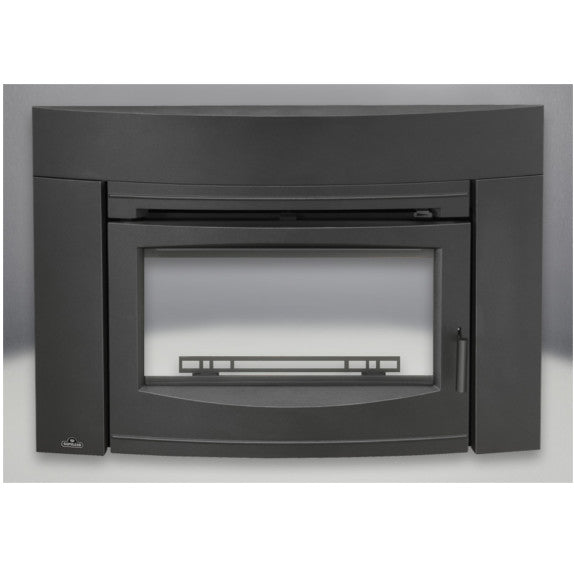

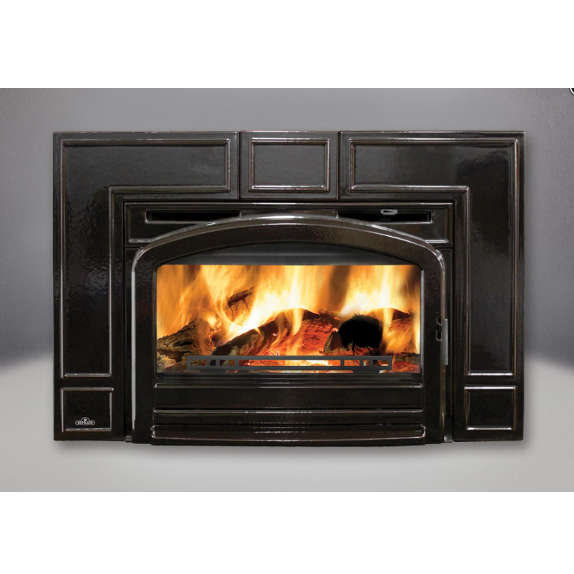

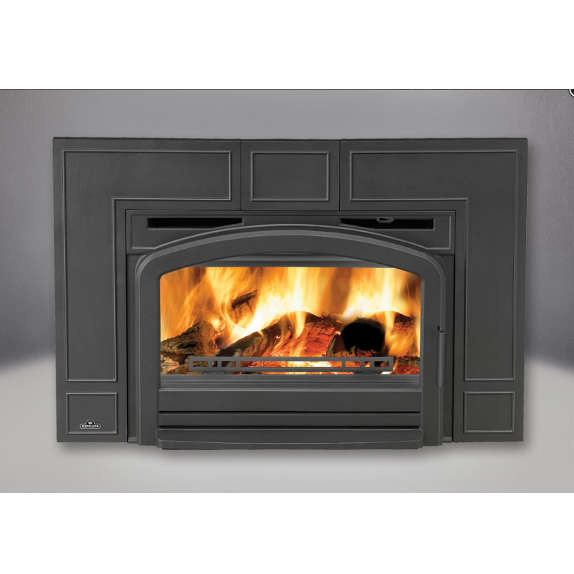

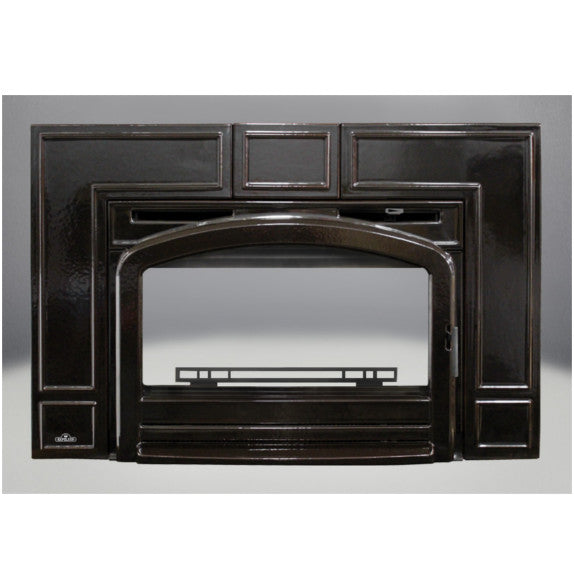

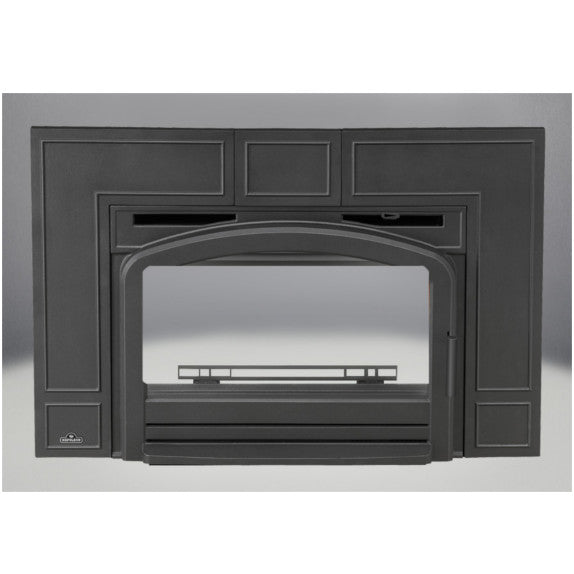

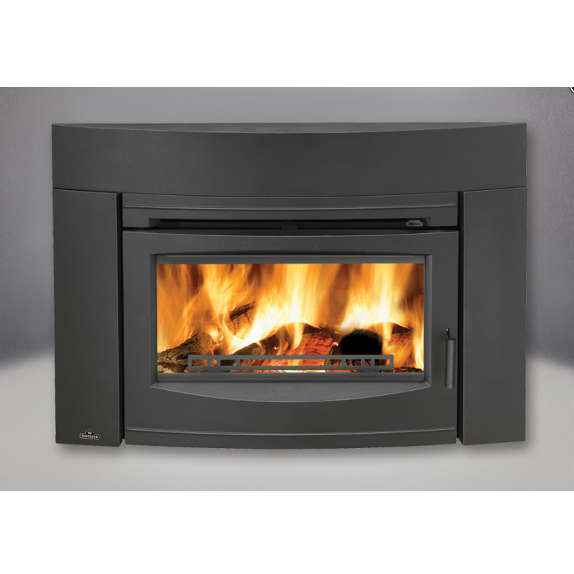

Napoleon adds to their wood burning collection with the EPA2020 EPI3T & EPI3C EPA wood burning inserts. The EPI3T has a traditional flush front with a cast iron surround and the EPI3C has a contemporary flush front with a cast iron surround. The EPI3 fireplace inserts give customers the option of a wood burning insert that will match any décor, whether it be traditional or contemporary.
Four stainless steel secondary air tubes supercharge the fuel burning process and generate a beautiful display of yellow dancing flames in the extra large viewing area. Complete with a removable painted black log retainer and a heat circulating blower, both the EPI3T & EPI3C are perfect heating solutions for your home or cottage.
The EPI3 insert is equipped with an adjustable exhaust collar that can be set to vent vertically. Or, it can be set at a 30 degree angle to assist you in connecting the flue liner to the insert when the liner is coming through the fireplace damper at an angle. The 30 degree angle position will help in tight clearances and for sharp angle fireplace dampers.
Specifications & Manual
Napoleon EPI3 Wood Insert Manual
Napoleon EPI3 Wood Insert Dimensions
| Napoleon EPI3 Fireplace Insert Specifications | |
| Minimum fireplace opening (Width in Front) | 28" |
| Minimum fireplace opening (Width in Rear) | 23" |
| Minimum fireplace opening (Height in Front) | 22" |
| Minimum fireplace opening (Height in Rear) | 19" |
| Minimum fireplace opening (Depth) | 18" |
| Firebox dimensions (Depth) | 13 3/4" |
| Firebox dimensions (Width) | 20 7/8" |
| Firebox dimensions (Height) | 11 1/2" |
| Maximum log length | 16" |
| Type of Door | Single, glass with cast iron frame |
| Glass Surface | 25" x 12" |
| Weight | 400 lb |
| Firebox volume (cu. ft.) | 1.8 |
| Glass Type | Ceramic glass |
| Depth - Overall | 17 5/16" |
| Height - Overall | 21 1/8" |
| Width - Overall in Front | 28" |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (emissions) | EPA |
| Canadian Standard (safety) | ULC-S628 |
| USA standard (safety) | UL 1482 |
| Maximum output - seasoned cord wood | 55,000 BTU/h |
| Type of Fuel | Wood |
| Type of Chimney (°F) | Liner - ULC-S635, UL1777 |
| Minimum chimney height (feet) | 15' |
| Log positioning | Over width |
| Recommended Heating Area (sq. ft.) | 500-1,500 |
| Optimum efficiency | 71.6% |
| Emissions (grams/hour) | 1.21 g/h |
| Recommended chimney diameter | 6" |
| Warranty | President's Limited Lifetime |
Minimum Clearances to Combustibles
| Napoleon EPI3 Insert Minimum Clearances to Combustibles* | |
| Clearance - combustible mantle to unit | 16" |
| Clearance - side wall to unit | 12" |
| Clearance - minimum floor protection in front of the fireplace | 16" USA |
| * The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). | |
| ** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual. | |
Unit Includes: FULLY REFRACTORY LINED FIREBOX, HEAT CIRCULATING BLOWER WITH AUTOMATIC THERMODISC AND VARIABLE SPEED CONTROL, CERAMIC GLASS, CAST SURROUND WITH DOOR.
