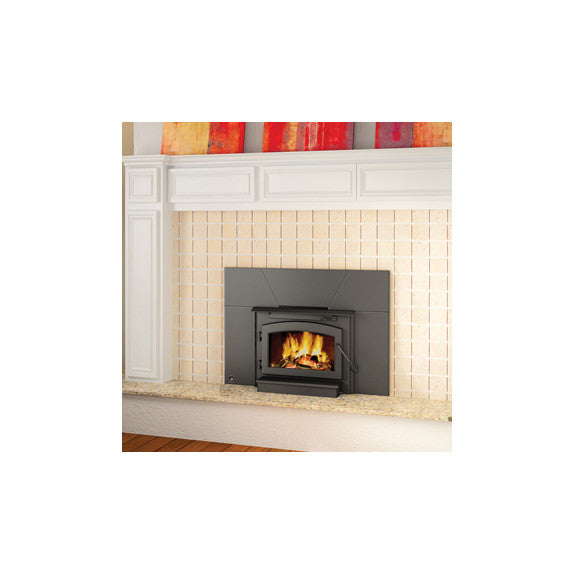

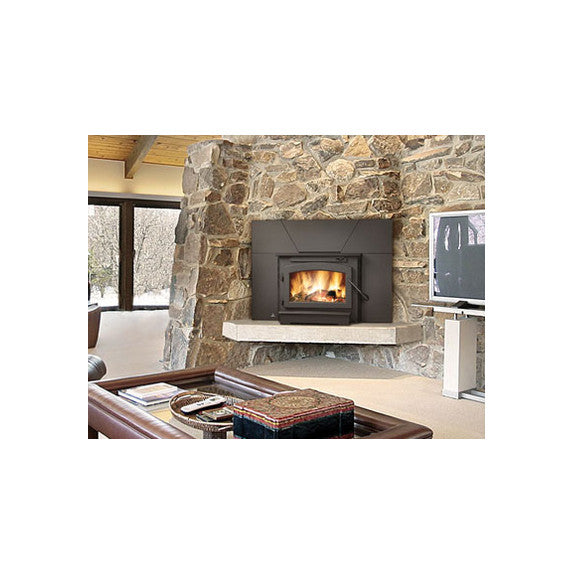

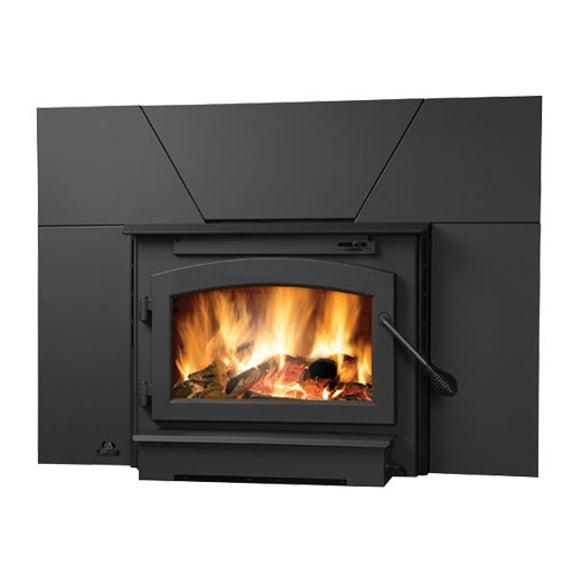

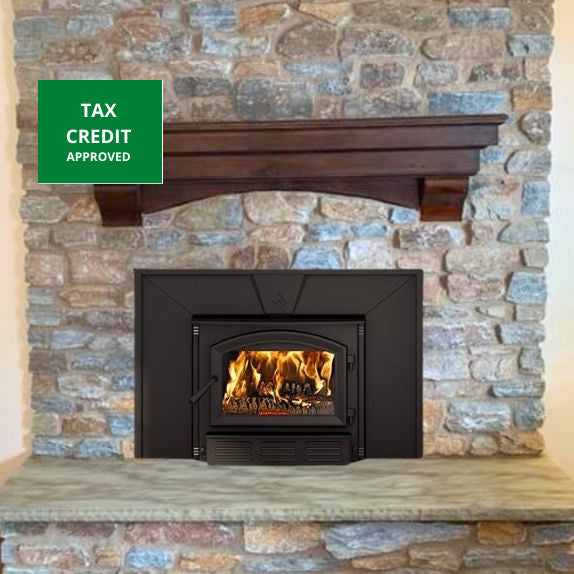

Timberwolf Wood Burning Insert EPI22
Product Details:
Transform your masonry fireplace into an efficient, clean burning and cost-effective heating source with the new EPI22 wood burning insert. The large firebox design accommodates 18" logs and allows for a long eight hour burn time. Napoleon's EPI22 conveniently comes complete with all components in one carton. Ordering a wood burning insert couldn't be easier.
Timberwolf's wood and pellet burning stoves and inserts are designed to meet Environmental Protection Agency (EPA) clean burning emission standards. Part of our commitment is to consider the overall impact of Timberwolf products on the environment and to provide our customers with the utmost in comfort and safety in their homes. Our wood and pellet hearth products provide an economical solution to the rising costs of home heating without sacrificing efficiencies and quality.
Specifications & Manual
Timberwolf EPI22 Wood Insert Product Manual
Timberwolf Wood and Pellet Brochure
Specifications: EPI22 Wood Burning Stove | |
Model | EPI22-1 |
Weight | 285 lbs. |
BTU Heat Output (High Burn*) | 65,000 |
Area Heated** (sq ft) | 800 - 1800 |

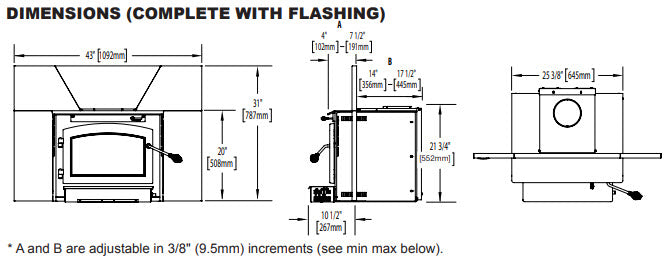

Minimum Fireplace Opening - Depth | 14" |
Minimum Fireplace Opening - Height | 22" |
Minimum Fireplace Opening - Width | 25 7/8" |
Firebox Capacity (cu ft) | 1.9 |
Firebox dimensions (Depth) | 14 5/8" |
Firebox dimensions (Width) | 20 7/8" |
Firebox dimensions (Height) | 11 5/8" |
Burn Time (Hours) | 8 hrs |
Log Size (Max) | 18" |
Emissions (grams per hour) | 2.25 |
Flue Diameter Top | 6" |
Blower Kit | Included 100 CFM |
Warranty | Yes - Limited Warranty |
Recommended chimney diameter | 6" |
*Timberwolf own test results showing realistic BTU using hardwood logs with regular refueling. Heat output will differ on chimney draft as well as type, moisture content and size of wood. **Figures may vary with individual conditions such as floor plan layout, insulation value/heat loss of the house, geographical location and firewood used. |
UNIT INCLUDES: FULLY REFRACTORY LINED FIREBOX AND PAINTED BLACK DOOR, 2 HEAT CIRCULATING BLOWERS WITH AUTOMATIC THERMODISC AND VARIABLE SPEED CONTROL, STANDARD BLACK FLASHING WITH TRIM
Minimum Clearances to Combustibles
Timberwolf EPI22 Minimum Clearances to Combustibles* | |
Clearance A - Sidewall | 16" |
Clearance B - Mantel | 30" |
Clearance C - Top Facing | 22" |
Clearance D - Side Facing | 10" |
Clearance E - Hearth Front | 22" |
Clearance F - Hearth Side | 8" |
Clearance G- In Front of Insert | 48" |
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites). |
